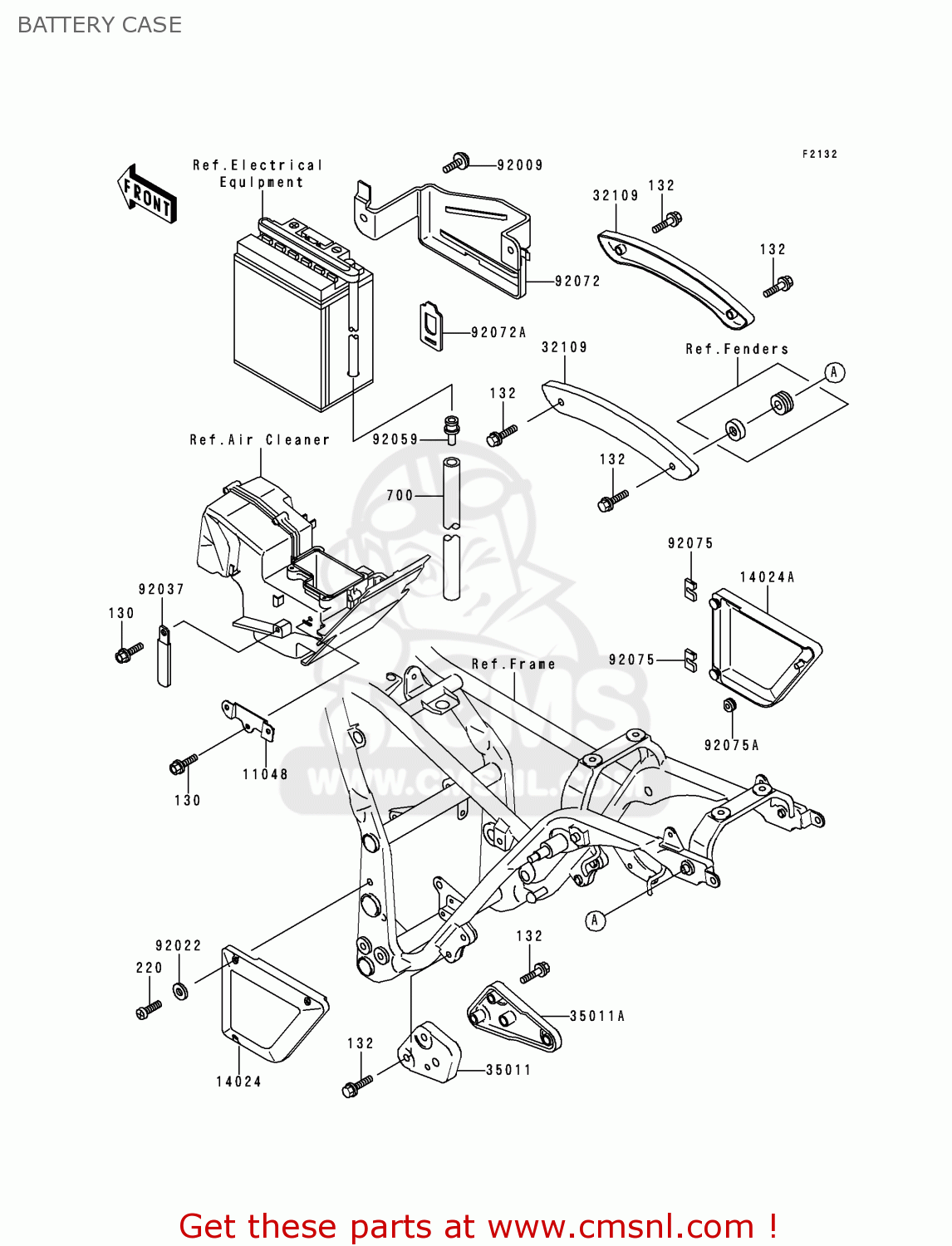

BATTERY CASE

ref

part #

description

quantity

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

132

132E0835
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

220

220C0520
ref: 220

SCREW-PAN-CROS

€ 0.50

700

700Q05500
ref: 700

TUBE-PVC,5X500

€ 0.00

11048

110481328
ref: 11048

BRACKET,IGNITER

€ 14.50

14024

1402415976Z
ref: 14024

COVER,SIDE,LWR,LH,BLA

€ 56.50

14024A

1402415986Z
ref: 14024A

COVER,SIDE,LWR,RH,BLA

€ 55.00

32109

321091169
ref: 32109

GRIP-FRAME

€ 58.00

35011

350111371
ref: 35011

STAY,MUFFLER,LH

€ 39.00

35011A

350111372
ref: 35011A

STAY,MUFFLER,RH

€ 42.00

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92059

920591715
ref: 92059

TUBE,BATTERY VENT HOS

€ 3.50

92072

920721224
ref: 92072

BAND,BATTERY

€ 10.00

92072A

920721228
ref: 92072A

BAND,TOOL

€ 6.00

92075

920751967
ref: 92075

DAMPER

€ 3.50

92075A

920751986
ref: 92075A

DAMPER

€ 3.00

all assemblies
