GENERATOR

EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR

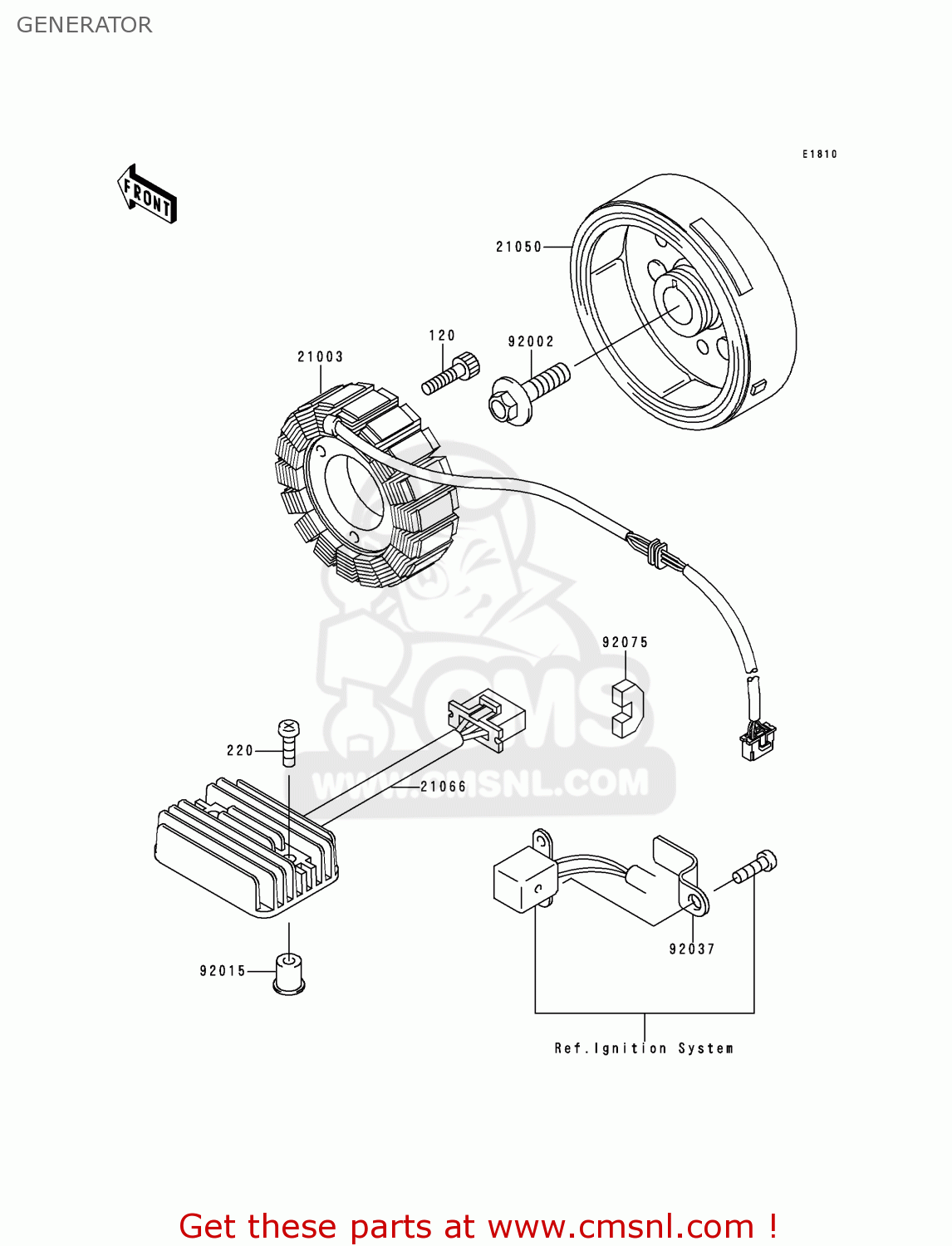

Generator diagram EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR

GENERATOR EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR

GENERATOR EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR

prices are in EUR

ref

part #

description

quantity

120

120P0625
ref: 120

BOLT,6X25

€ 1.50

220

220B0630
ref: 220

SCREW-PAN HEAD,6X30

€ 2.50

21003

210031154
ref: 21003

STATOR

€ 484.00

21050

210501129
ref: 21050

FLYWHEEL

€ 459.50

21066

210661030
ref: 21066

REGULATOR-VOLTAGE

€ 176.00

92002

920021688
ref: 92002

BOLT,10X28

€ 7.00

92015

920151700A
ref: 92015

NUT

€ 5.50

92037

920371919
ref: 92037

CLAMP

€ 3.00

92075

920751811
ref: 92075

DAMPER

€ 4.00
