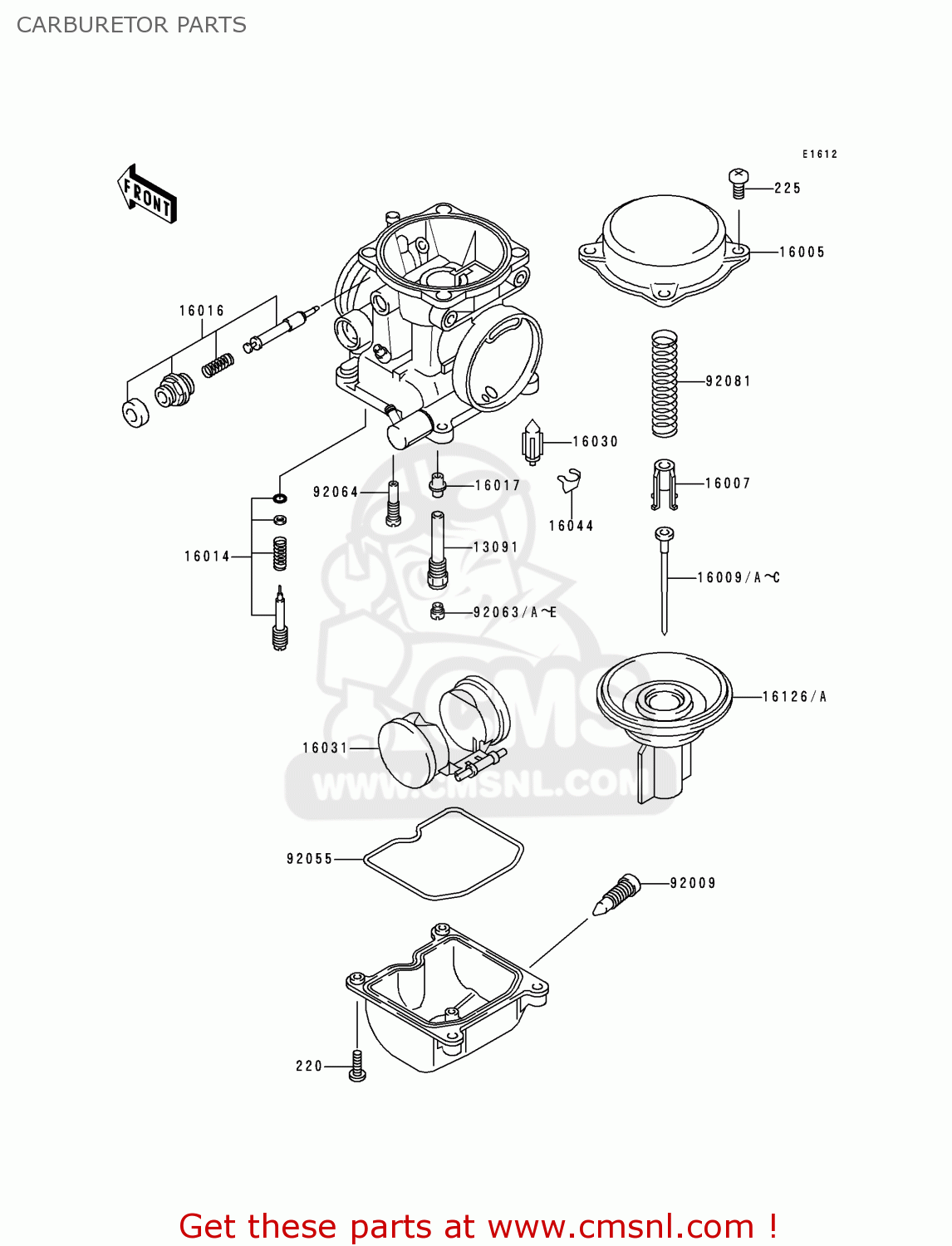

CARBURETOR PARTS

ref

part #

description

quantity

220

220D0414
ref: 220

SCREW-PAN-CROS

€ 2.00

225

225C0418
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

13091

130911406
ref: 13091

HOLDER,NEEDLE JET

€ 19.00

16005

160051056
ref: 16005

TOP-CHAMBER,MIXING

€ 48.50

16007

160071120
ref: 16007

SEAT-SPRING

€ 16.50

16009B

160091896
ref: 16009B

NEEDLE-JET,N2WH

€ 23.00

16009C

160091897
ref: 16009C

NEEDLE-JET,N2WK

€ 23.00

16014

160141080
ref: 16014

SCREW-PILOT AIR

€ 15.00

16016

160161090
ref: 16016

PLUNGER,STARTER

€ 46.50

16017

160171253
ref: 16017

JET-NEEDLE

€ 36.50

16030

160301007
ref: 16030

FLOAT VALVE ASSY

€ 37.00

16031

160311077
ref: 16031

FLOAT

€ 39.00

16044

16044007
ref: 16044

CLIP, FLOAT VALVE

€ 4.00

16126

161261159
ref: 16126

VALVE,VACUUM

€ 176.50

92009

920091551
ref: 92009

SCREW,DRAIN

€ 6.50

92055

920551222
ref: 92055

RING-O,FLOAT CHAMBER

€ 12.50

92063

920631003
ref: 92063

MAIN JET, 2ND, # 90

€ 9.50

92063A

920631004
ref: 92063A

JET-MAIN,#92

€ 10.00

92063B

920631023
ref: 92063B

JET-MAIN,#85

€ 9.50

92063C

920631024
ref: 92063C

JET-MAIN,#88

€ 10.00

92063D

920631037
ref: 92063D

JET-MAIN,#80

€ 9.00

92063E

920631044
ref: 92063E

JET-MAIN,#82

€ 10.00

92064

920641035
ref: 92064

JET-PILOT,#35

€ 12.50

92081

920811775
ref: 92081

SPRING,VACUUM VALVE

€ 17.00

all assemblies
