FRAME

EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR

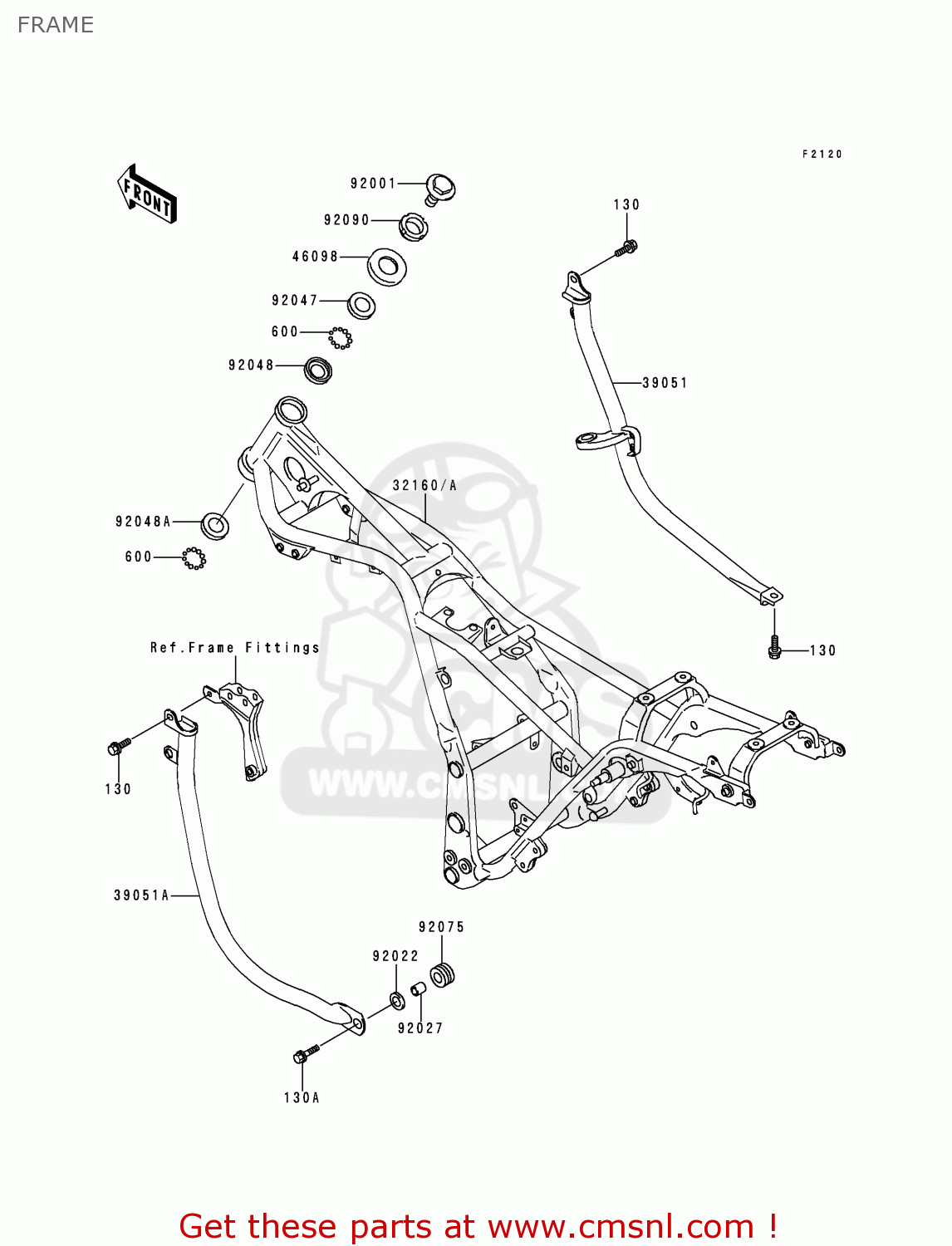

Frame diagram EL250F4 ELIMINATOR 1999 NETHERLANDS FG IT NR

prices are in EUR

ref

part #

description

quantity

130

130C0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

130A

130J0825
ref: 130A

BOLT-FLANGED,8X25,BLA

€ 2.00

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

32160

321601014
ref: 32160

FRAME-COMP

€ 854.00

39051

390511057
ref: 39051

FRAME-COMP-SIDE,RH

€ 84.00

39051A

390511061
ref: 39051A

FRAME-COMP-SIDE, LH

€ 59.50

46098

46098016
ref: 46098

CAP,STEERING STEM

€ 4.00

92001

920011488
ref: 92001

BOLT,FLANGED,16X22

€ 13.50

92022

920221317
ref: 92022

WASHER,8.5X20X1.6,BLA

€ 2.00

92027

92027102
ref: 92027

COLLAR

€ 1.00

92047

92047011
ref: 92047

CONE-STRNG STM BRNG

€ 14.50

92048

92048006
ref: 92048

RACE-STRNG BEARIN-STE

€ 11.50

92048A

92048008
ref: 92048A

RACE-STRNG STM BRNG

€ 16.00

92075

920751898
ref: 92075

DAMPER

€ 3.00

92090

92090007
ref: 92090

NUT-STEERING STEM LCK

€ 8.00

FRAME

all assemblies
