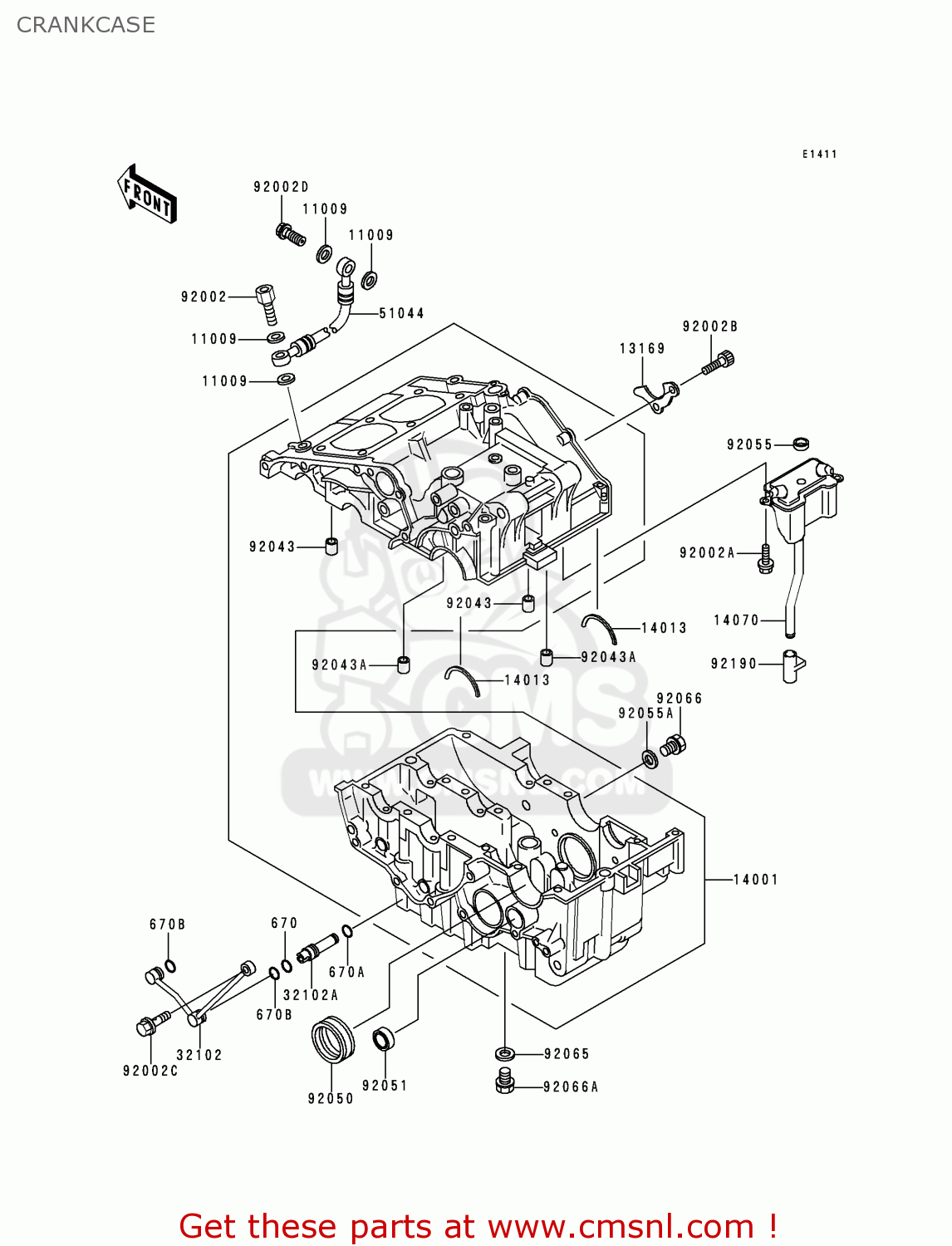

CRANKCASE

ref

part #

description

quantity

670

670D1509
ref: 670

O RING,9MM

€ 3.00

670A

670D2010
ref: 670A

O RING,10MM

€ 1.00

670B

670D2012
ref: 670B

O RING,12MM

€ 1.50

11009

110091105
ref: 11009

GASKET,10X14.5X1.5 (NAS)

€ 4.00

13169

131691659
ref: 13169

PLATE

€ 6.00

14001

140011216
ref: 14001

SET-CRANKCASE

€ 1,433.00

14013

14013004
ref: 14013

RING-BEARING SETTING

€ 7.00

14070

140701081
ref: 14070

BODY-BREATHER

€ 78.00

32102

321021017
ref: 32102

PIPE

€ 65.00

32102A

321021018
ref: 32102A

PIPE

€ 11.50

51044

510441074
ref: 51044

TUBE-ASSY

€ 46.00

92002

920021427
ref: 92002

BOLT,OIL SWITCH

€ 15.50

92002A

920021449
ref: 92002A

BOLT,6X10

€ 2.50

92002B

920021592
ref: 92002B

BOLT,6X12

€ 2.50

92002C

920021705
ref: 92002C

BOLT,BANJO,8X20

€ 6.00

92002D

920021907
ref: 92002D

BOLT

€ 3.50

92043

920431265
ref: 92043

PIN,9.2X12X14

€ 4.50

92043A

920431309
ref: 92043A

PIN,3.5X6X16

€ 3.00

92050

92050024
ref: 92050

OIL SEAL SC325210

€ 5.00

92051

92051005A
ref: 92051

OIL SEAL,TB13225.5

€ 5.50

92055

92055048
ref: 92055

RING-O,OD=18

€ 3.00

92055A

920551146
ref: 92055A

RING-O

€ 5.50

92065

92065097
ref: 92065

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

92066

920661096
ref: 92066

PLUG,MAIN GALLARY,18X

€ 7.50

92066A

920661174
ref: 92066A

PLUG,OIL DRAIN,12X15

€ 4.00

92190

921901489
ref: 92190

TUBE

€ 3.00
