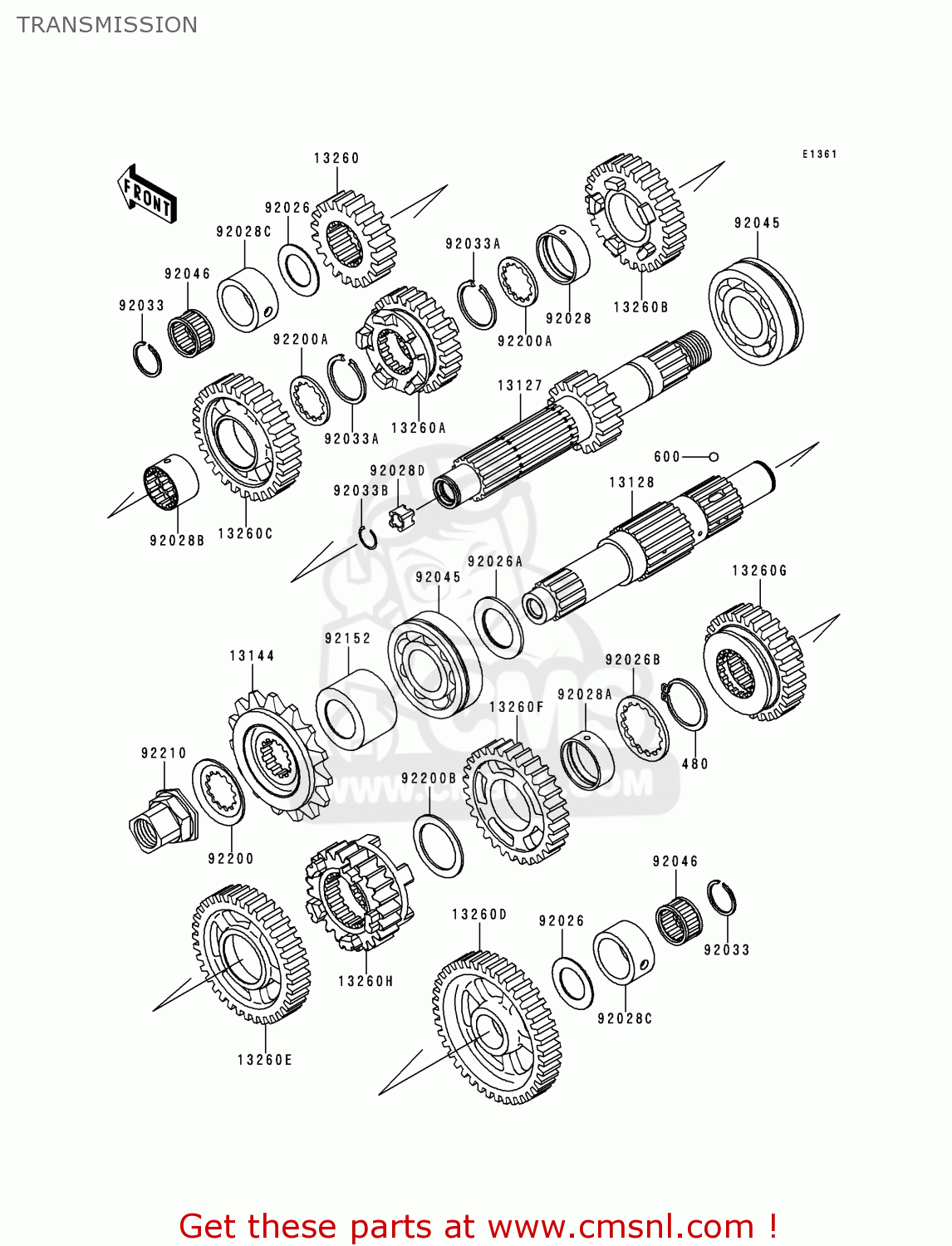

TRANSMISSION

ref

part #

description

quantity

480

480J2900
ref: 480

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271270
ref: 13127

SHAFT-TRANSMISSION IN

€ 191.50

13128

131281234
ref: 13128

SHAFT-TRANSMISSION OU

€ 188.50

13144

131441305
ref: 13144

SPROCKET-OUTPUT,15T

€ 32.00

13260

132601783
ref: 13260

GEAR,INPUT 2ND,22T

€ 111.00

13260A

132601784
ref: 13260A

GEAR,INPUT 3RD,25T

€ 154.00

13260B

132601785
ref: 13260B

GEAR,INPUT 4TH,28T

€ 111.00

13260C

132601786
ref: 13260C

GEAR,INPUT TOP,27T

€ 115.50

13260D

132601787
ref: 13260D

GEAR,OUTPUT LOW,39T

€ 113.50

13260E

132601788
ref: 13260E

GEAR,OUTPUT 2ND,35T

€ 111.00

13260F

132601789
ref: 13260F

GEAR,OUTPUT 3RD,31T

€ 111.00

13260G

132601790
ref: 13260G

GEAR,OUTPUT 4TH,28T

€ 121.50

13260H

132601791
ref: 13260H

GEAR,OUTPUT TOP,23T

€ 121.50

92026

920261528
ref: 92026

SPACER,20.5X33X1.0

€ 3.00

92026A

920261529
ref: 92026A

SPACER,25.3X39X2.0

€ 7.50

92026B

920261530
ref: 92026B

SPACER,TOOTHED,28X30X

€ 7.50

92028

920281449
ref: 92028

BUSHING,INPUT 5TH GEA

€ 17.50

92028A

920281707
ref: 92028A

BUSHING

€ 21.50

92028B

920281752
ref: 92028B

BUSHING,INPUT TOP GEA

€ 26.00

92028C

92028180
ref: 92028C

BUSHING,OUTPUT SFT

€ 21.50

92028D

920281901
ref: 92028D

BUSHING,INPUT SHAFT

€ 9.50

92033

92033015
ref: 92033

CIRCLIP

€ 2.50

92033A

920331037
ref: 92033A

SNAP RING,25.9X1.2T

€ 3.00

92033B

920331072
ref: 92033B

RING-SNAP

€ 2.50

92045

920451224
ref: 92045

BEARING-BALL,6305N2SH

€ 40.00

92046

920461185
ref: 92046

BEARING-NEEDLE,KMJ20X

€ 17.50

92152

921521148
ref: 92152

COLLAR,SPROCKET

€ 25.00

92200

922001065
ref: 92200

WASHER

€ 4.50

92200A

922001240
ref: 92200A

WASHER,2ND,3RD,4TH

€ 7.00

92200B

922001278
ref: 92200B

WASHER,29.9X40X1.5

€ 8.00

92210

922101098
ref: 92210

NUT,SPROCKET

€ 24.50
