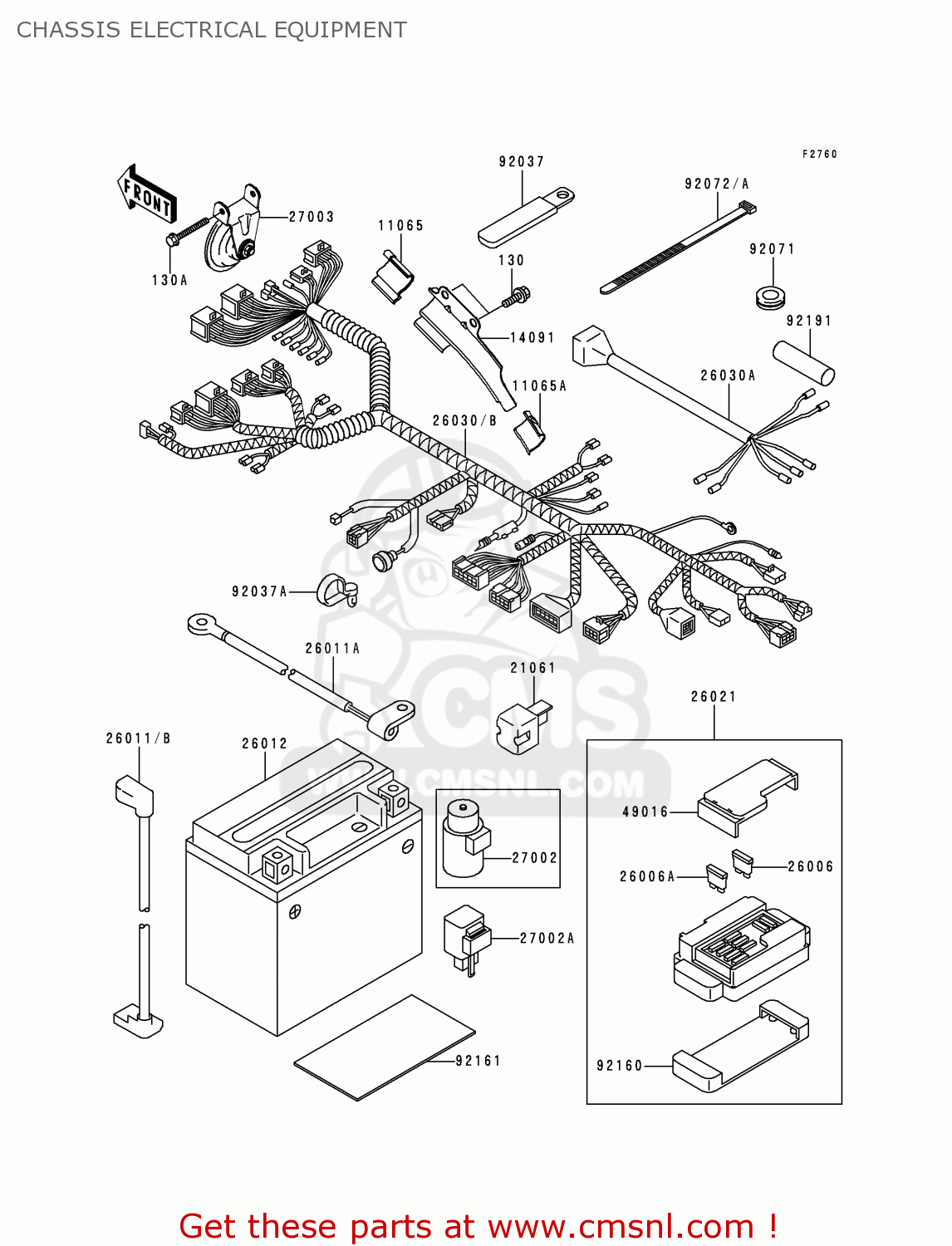

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130J0608
ref: 130

BOLT-FLANGED,6X8

€ 2.50

130A

130J0660
ref: 130A

BOLT-FLANGED,6X60

€ 2.50

11065

110651141
ref: 11065

CAP

€ 11.00

11065A

110651142
ref: 11065A

CAP

€ 11.00

14091

140911169
ref: 14091

COVER

€ 8.00

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111710
ref: 26011
EUNR

WIRE-LEAD,BATTERY(+)

€ 31.50

26011A

260111711
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 50.50

26011B

260111714
ref: 26011B
FGFRITNLUK

WIRE-LEAD,BATTERY(+)

€ 35.00

26012

260121334
ref: 26012

BATTERY,YTX14-BS,12V

€ 124.50

26021

260211095
ref: 26021

JUNCTION BOX

€ 135.50

26030

260301649
ref: 26030
FGFRITNLUK

HARNESS,MAIN

€ 282.00

26030A

260301656
ref: 26030A

HARNESS,RR

€ 35.50

26030B

260301673
ref: 26030B
EUNR

HARNESS,MAIN

€ 288.00

27002

270021051
ref: 27002
FGFRITNLUK

RELAY-ASSY

€ 32.00

27002A

270021101
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 49.50

27003

270031416
ref: 27003

HORN

€ 54.50

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371679
ref: 92037

CLAMP

€ 3.50

92037A

920371903
ref: 92037A

CLAMP

€ 5.00

92071

92071099
ref: 92071

GROMMET, REAR FENDER

€ 3.00

92072

920721237
ref: 92072

BAND,L=250

€ 2.00

92072A

920721372
ref: 92072A

BAND,L=350

€ 4.00

92160

921601650
ref: 92160

DAMPER,JUNCTION BOX

€ 9.50

92161

921611085
ref: 92161

DAMPER,BATTERY

€ 2.00

92191

921911419
ref: 92191

TUBE,25X27X90

€ 6.00

all assemblies
