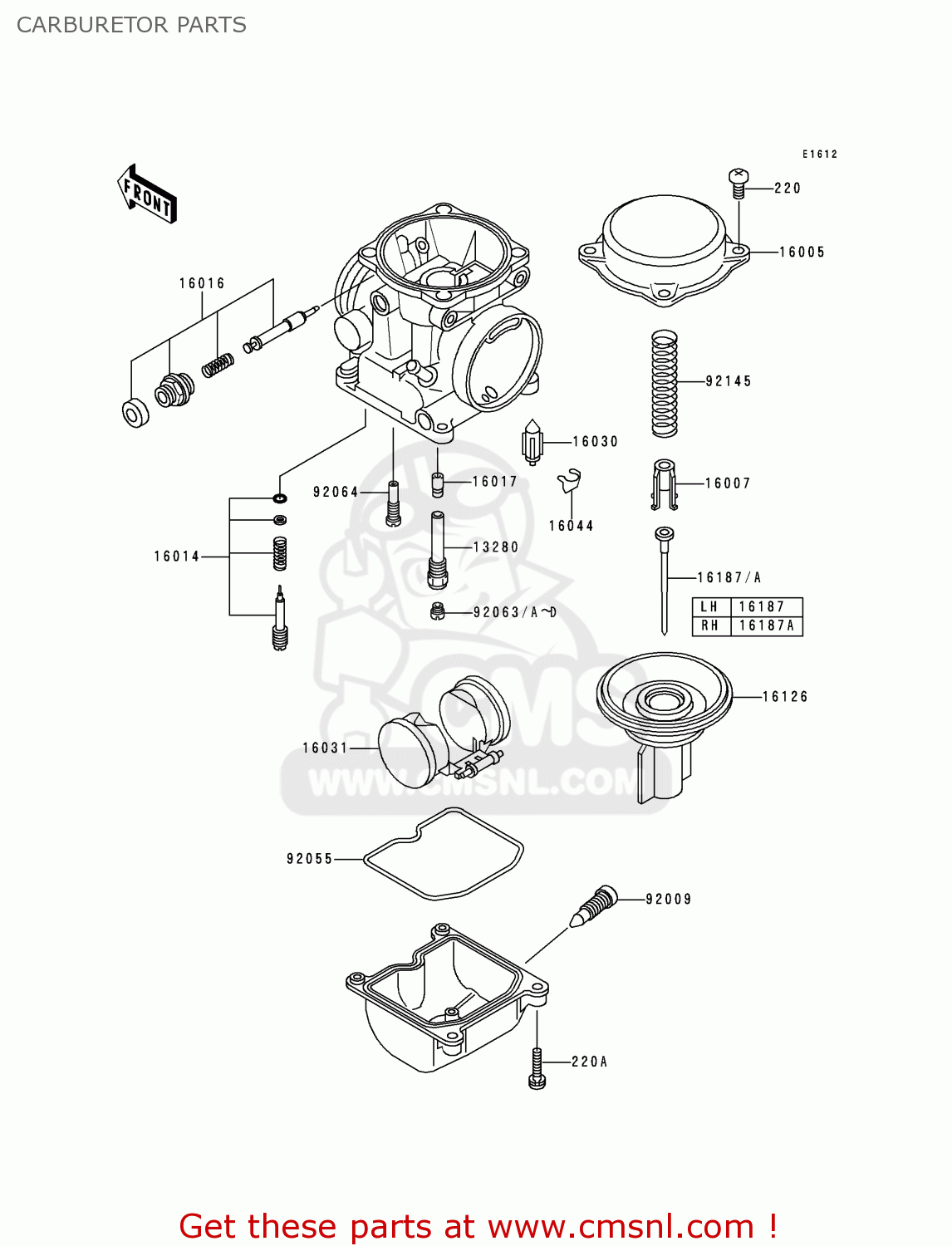

CARBURETOR PARTS

ref

part #

description

quantity

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220D0414
ref: 220A

SCREW-PAN-CROS

€ 2.00

13280

132801158
ref: 13280

HOLDER,NEEDLE JET

€ 19.00

16005

160051065
ref: 16005

TOP-CHAMBER,MIXING

€ 47.50

16007

160071117
ref: 16007

SEAT-SPRING,THROTTLE

€ 16.50

16014

160141081
ref: 16014

SCREW-PILOT AIR

€ 15.50

16016

160161092
ref: 16016

PLUNGER

€ 40.50

16017

160171407
ref: 16017

JET-NEEDLE

€ 34.00

16030

160301057
ref: 16030

VALVE-FLOAT

€ 37.00

16031

160311077
ref: 16031

FLOAT

€ 39.00

16044

16044007
ref: 16044

CLIP, FLOAT VALVE

€ 4.00

16126

161261339
ref: 16126

VALVE,VACUUM

€ 156.00

16187

161871112
ref: 16187

NEEDLE-JET,N8GJ

€ 27.50

16187A

161871113
ref: 16187A

NEEDLE-JET,N8GN

€ 27.50

92009

920091551
ref: 92009

SCREW,DRAIN

€ 6.50

92055

920551518
ref: 92055

RING-O,FLOAT CHAMBER

€ 15.00

92063

920631071
ref: 92063

JET-MAIN,#118

€ 9.50

92063A

920631072
ref: 92063A

MAIN JET 2ND #120

€ 9.50

92063B

920631073
ref: 92063B

MAIN JET,2ND #122

€ 9.50

92063C

920631117
ref: 92063C

JET-MAIN,#112

€ 9.50

92063D

920631118
ref: 92063D

JET-MAIN,#115

€ 9.50

92064

920641101
ref: 92064

JET-PILOT,#35

€ 11.50

92145

921451064
ref: 92145

SPRING,VACUUM VALVE

€ 18.50
