SWINGARM

EJ650A1 W650 1999 EUROPE UK FR NL FG IT NR

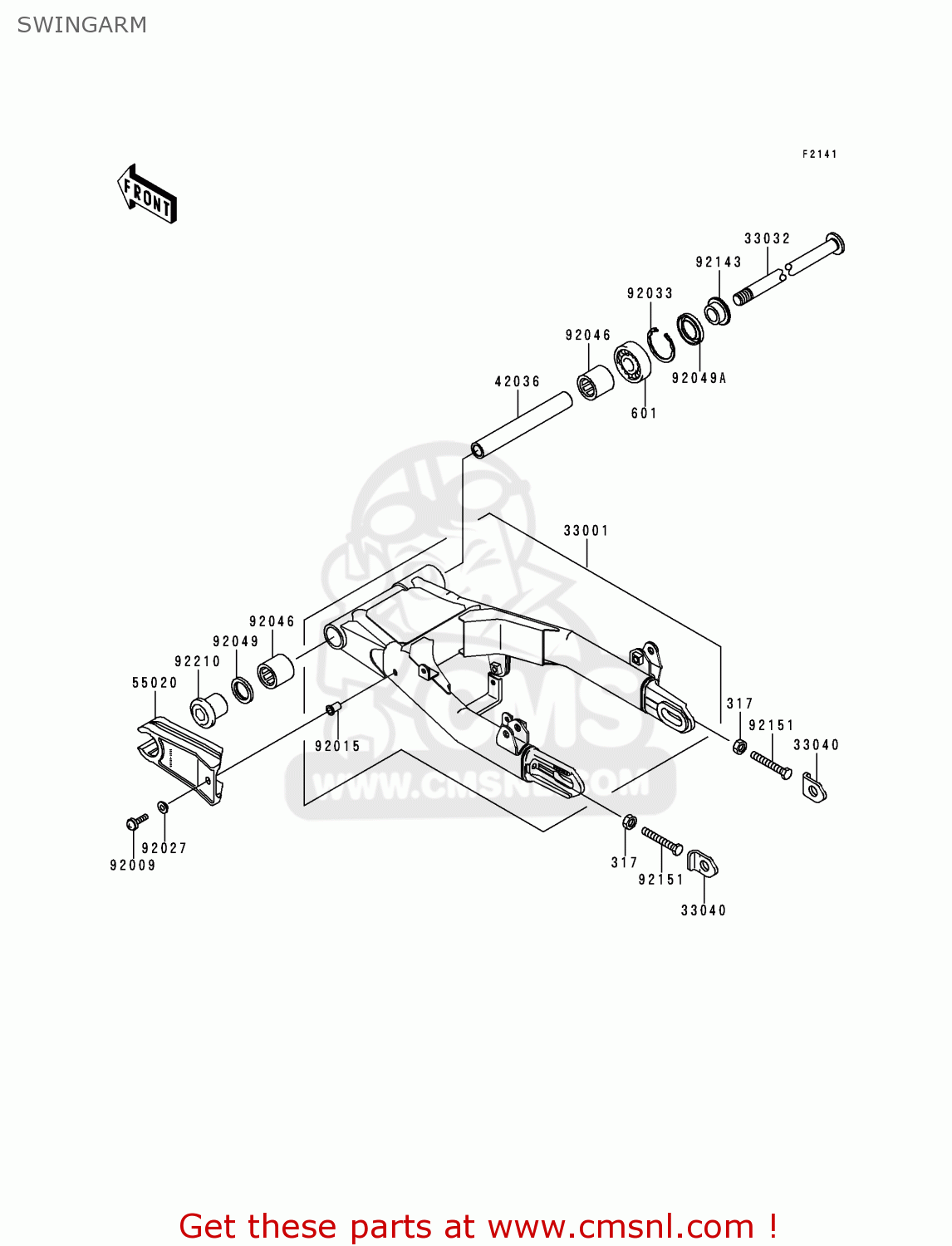

Swingarm diagram EJ650A1 W650 1999 EUROPE UK FR NL FG IT NR

SWINGARM EJ650A1 W650 1999 EUROPE UK FR NL FG IT NR
SWINGARM EJ650A1 W650 1999 EUROPE UK FR NL FG IT NR
SWINGARM EJ650A1 W650 1999 EUROPE UK FR NL FG IT NR
prices are in EUR
ref
part #
description
quantity
317
317G0800
ref: 317
NUT-HEX-SMALL,8MM
317G0800
€ 0.50
601
601A6203
ref: 601
BEARING-BALL,#6203
601A6203
€ 10.50
33001
330011565
ref: 33001
ARM-COMP-SWING
€ 787.50
33032
330321192
ref: 33032
SHAFT-SWING ARM
€ 51.50
33040
330401181
ref: 33040
ADJUSTER-CHAIN
€ 11.50
42036
420361352
ref: 42036
SLEEVE,SWING ARM,L=18
420361352
€ 45.00
55020
550201686
ref: 55020
GUARD,CHAIN
550201686
€ 34.50
92009
920091663
ref: 92009
SCREW
920091663
€ 2.50
92015
920151791
ref: 92015
NUT,POP,6MM
920151791
€ 3.00
92027
920271965
ref: 92027
COLLAR
920271965
€ 2.50
92033
920331040
ref: 92033
RING,SNAP,40M/M
920331040
€ 4.00
92046
920461035
ref: 92046
920461035
92049
920491060
ref: 92049
920491060
92049A
920491388
ref: 92049A
SEAL-OIL,VC25X40X5
920491388
€ 9.00
92143
921431188
ref: 92143
COLLAR,RR AXLE,L=14
921431188
€ 13.00
92151
921511578
ref: 92151
BOLT,8X55
€ 1.50
92210
922101077
ref: 92210
NUT,PIVOT,16MM
922101077
€ 11.50
