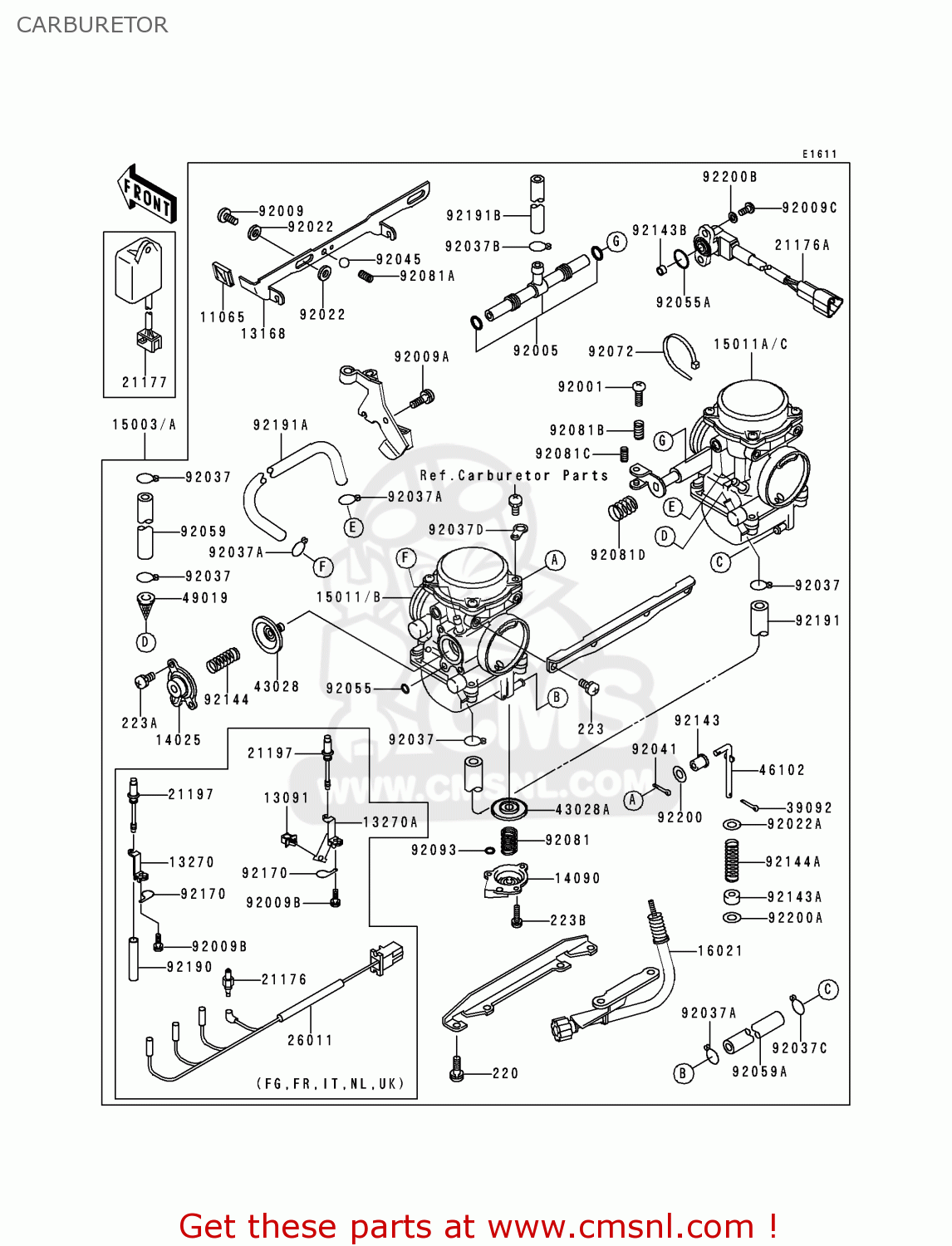

CARBURETOR

ref

part #

description

quantity

11065

110651092
ref: 11065

CAP,STARTER LEVER

€ 13.50

13091

130911866
ref: 13091
FGFRITNLUK

HOLDER,HEATER

€ 6.50

13168

131681679
ref: 13168

LEVER,STARTER

€ 57.50

13270

132701075
ref: 13270
FGFRITNLUK

PLATE,WIRE

€ 5.00

13270A

132701143
ref: 13270A
FGFRITNLUK

PLATE,HEATER STAY

€ 9.00

14025

140251903
ref: 14025

COVER,AIR CUT VALVE

€ 43.00

14090

140901635
ref: 14090

COVER,ACCELERATOR

€ 40.50

15003

150031497
ref: 15003
FGFRITNLUK

CARBURETOR-ASSY

€ 1,684.00

15003A

150031517
ref: 15003A
EUNR

CARBURETOR-ASSY

€ 2,068.00

15011

150111687
ref: 15011
FGFRITNLUK

CARBURETOR,LH

€ 1,335.50

15011A

150111688
ref: 15011A
FGFRITNLUK

CARBURETOR,RH

€ 1,335.50

15011B

150111689
ref: 15011B
EUNR

CARBURETOR,LH

€ 1,335.50

15011C

150111690
ref: 15011C
EUNR

CARBURETOR,RH

€ 1,335.50

16021

160211228
ref: 16021

SCREW-THROTTLE STOP

€ 66.00

21176

211761067
ref: 21176
FGFRITNLUK

SENSOR,HETER

€ 100.00

21176A

211761101
ref: 21176A

SENSOR

€ 145.50

21177

211771061
ref: 21177
FGFRITNLUK

CONTROLLER

€ 164.50

21197

211971004
ref: 21197
FGFRITNLUK

HEATER

€ 119.50

26011

260111715
ref: 26011
FGFRITNLUK

WIRE-LEAD

€ 22.00

39092

390921058
ref: 39092

PIN-HAIR

€ 2.00

43028

430281053
ref: 43028

DIAPHRAGM,5.9MM,AIR C

€ 62.50

43028A

430281077
ref: 43028A

DIAPHRAGM

€ 62.50

46102

461021434
ref: 46102

ROD

€ 18.00

49019

490191092
ref: 49019

FILTER-FUEL

€ 19.00

92001

920011998
ref: 92001

BOLT,THROTTLE ADJUST

€ 11.50

92005

920051326
ref: 92005

FITTING

€ 37.00

92009

920091262
ref: 92009

SCREW

€ 4.00

92009A

920091365
ref: 92009A

SCREW

€ 4.50

92009B

920091706
ref: 92009B
FGFRITNLUK

SCREW

€ 2.00

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

223

223C0510
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

223A

223D0408
ref: 223A

SCREW-PAN-WS-CROS

€ 1.00

223B

223D0410
ref: 223B

SCREW-PAN-WS-CROS

€ 2.50

92009C

920091781
ref: 92009C

SCREW

€ 1.50

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92022A

920221480
ref: 92022A

WASHER,PLAIN,STOP SPR

€ 3.00

92037

920371075
ref: 92037

CLAMP,FUEL INLET TUBE

€ 2.50

92037A

920371142
ref: 92037A

CLAMP,TUBE

€ 2.50

92037B

920371185
ref: 92037B

CLAMP,FUEL TAP HOSE

€ 3.50

92037C

920371201
ref: 92037C

CLAMP

€ 3.00

92037D

920371969
ref: 92037D

CLAMP,HOSE

€ 5.00

92041

920411061
ref: 92041

COTTER

€ 2.50

92045

920451104
ref: 92045

BALL,BRASS,SHAFT STOP

€ 2.00

92055

920551245
ref: 92055

RING-O

€ 3.50

92055A

920551574
ref: 92055A

RING-O

€ 2.50

92059

920591029
ref: 92059

TUBE,FUEL,7.3X12.5X20

€ 18.50

92059A

920591612
ref: 92059A

TUBE,11X7X55

€ 17.00

92072

920721250
ref: 92072

BAND

€ 3.50

92081

920811092
ref: 92081

SPRING,DIAPHRAGM

€ 8.00

92081A

920811619
ref: 92081A

SPRING,SHAFT STOP

€ 4.50

92081B

920811620
ref: 92081B

SPRING,THROTTLE ADJUS

€ 3.00

92081C

920811621
ref: 92081C

SPRING,THROTTLE ADJUS

€ 3.00

92081D

920811876
ref: 92081D

SPRING

€ 6.00

92093

920931046
ref: 92093

SEAL-"U"RING

€ 4.00

92143

921431790
ref: 92143

COLLAR

€ 1.50

92143A

921431791
ref: 92143A

COLLAR

€ 5.50

92143B

921431907
ref: 92143B

COLLAR

€ 6.00

92144

921441072
ref: 92144

SPRING,AIR CUT VALVE

€ 6.50

92144A

921441886
ref: 92144A

SPRING

€ 6.00

92170

921701433
ref: 92170
FGFRITNLUK

CLAMP,HEATER

€ 5.50

92190

921901494
ref: 92190
FGFRITNLUK

TUBE

€ 3.50

92191

921911410
ref: 92191

TUBE,FUEL

€ 16.50

92191A

921911411
ref: 92191A

TUBE

€ 6.50

92191B

921911412
ref: 92191B

TUBE,7X11X370

€ 7.50

92200

922001274
ref: 92200

WASHER

€ 1.50

92200A

922001275
ref: 92200A

WASHER

€ 1.50

92200B

922001369
ref: 92200B

WASHER

€ 2.50

all assemblies
