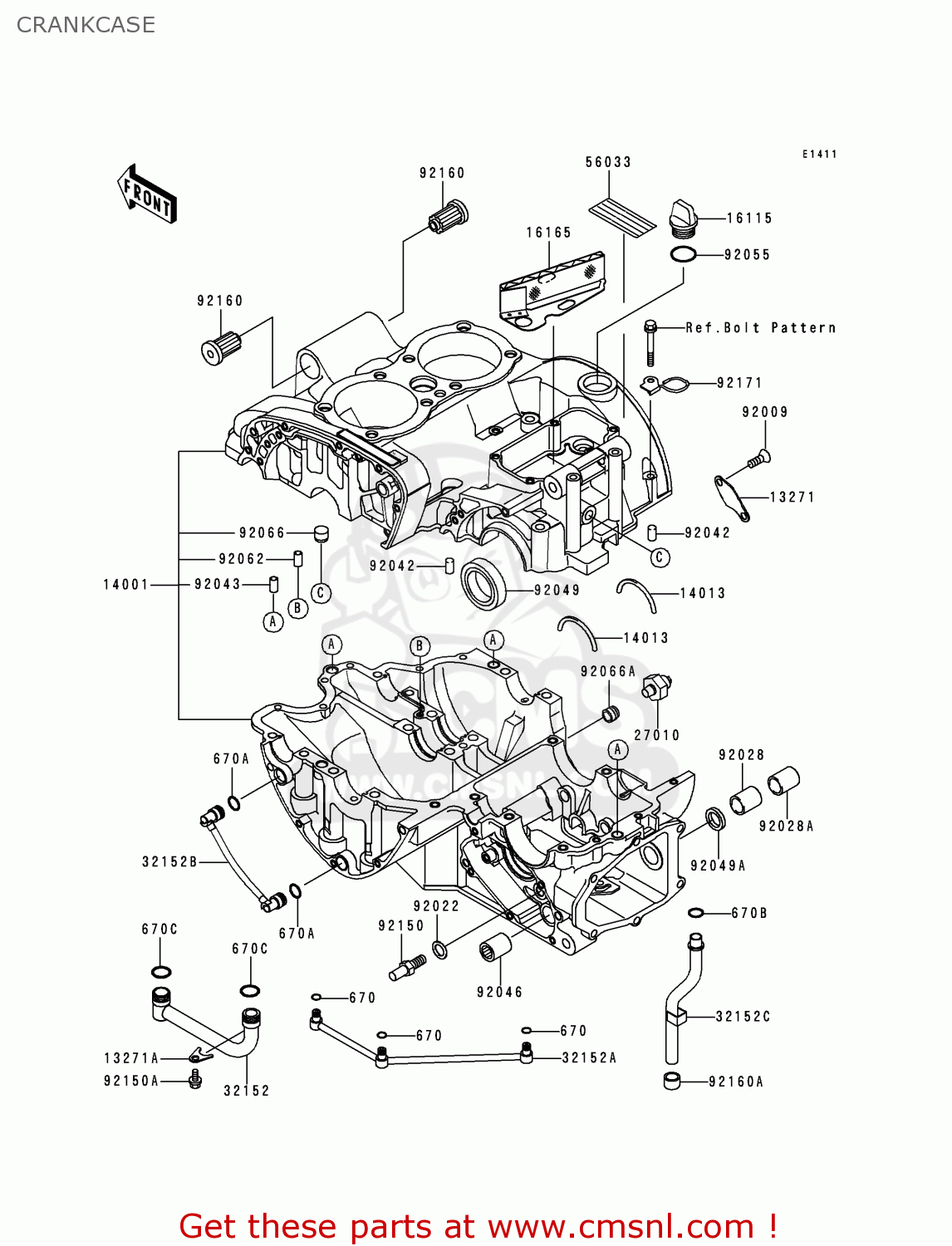

CRANKCASE

ref

part #

description

quantity

670

670D1505
ref: 670

O RING

€ 2.50

670A

670D2010
ref: 670A

O RING,10MM

€ 1.00

670B

670D2012
ref: 670B

O RING,12MM

€ 1.50

670C

670D2014
ref: 670C

O RING,14MM

€ 3.50

13271

132711186
ref: 13271

PLATE,BREATHER

€ 2.50

13271A

132711187
ref: 13271A

PLATE,OIL PIPE

€ 1.50

14001

140011260
ref: 14001

SET-CRANKCASE

€ 1,376.50

14013

140131004
ref: 14013

RING-POSITION,CRANK

€ 3.00

16115

161151009
ref: 16115

CAP-OIL FILLER

€ 10.00

16165

161651066
ref: 16165

SEPARATOR,BREATHER

€ 24.50

27010

270101313
ref: 27010

SWITCH,OIL PRESSURE

€ 28.00

32152

321521902
ref: 32152

PIPE,MAIN OIL

€ 31.50

32152A

321521903
ref: 32152A

PIPE,TRANSMISSION OIL

€ 43.50

32152B

321521904
ref: 32152B

PIPE,BALANCER OIL

€ 43.50

32152C

321521905
ref: 32152C

PIPE,BREATHER OIL

€ 12.50

56033

560331155
ref: 56033

LABEL-MANUAL,OIL CAPA

€ 3.50

92009

920091880
ref: 92009

SCREW,6X12

€ 0.50

92022

920221973
ref: 92022

WASHER

€ 3.00

92028

920281899
ref: 92028

BUSHING,KICK LEVER,IN

€ 5.50

92028A

920281900
ref: 92028A

BUSHING,KICK LEVER,OU

€ 5.50

92042

92042016
ref: 92042

PIN,DOWEL,6X16

€ 3.50

92043

920431037
ref: 92043

PIN,DOWEL,10X8.2X14

€ 0.50

92046

920461148
ref: 92046

BEARING-NEEDLE,HK1312

€ 19.50

92049

920491501
ref: 92049

SEAL-OIL,HTC40628

€ 7.50

92049A

920491523
ref: 92049A

SEAL-OIL,KICK PEDAL

€ 9.00

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92062

920621079
ref: 92062

NOZZLE

€ 5.50

92066

920661355
ref: 92066

PLUG,10.5MM

€ 3.50

92066A

920661506
ref: 92066A

PLUG,MAIN GALLERY

€ 8.50

92150

921501803
ref: 92150

BOLT,RETURN SPRING

€ 6.50

92150A

921501826
ref: 92150A

BOLT,6X12

€ 2.50

92160

921601483
ref: 92160

DAMPER,ENGINE MOUNT

€ 21.50

92160A

921601986
ref: 92160A

DAMPER,BREATHER PIPE

€ 2.50

92171

921711124
ref: 92171

CLAMP,DRAIN TUBE

€ 10.00
