FRONT HUB

EJ650A1 W650 1999 EUROPE UK FR NL FG IT NR

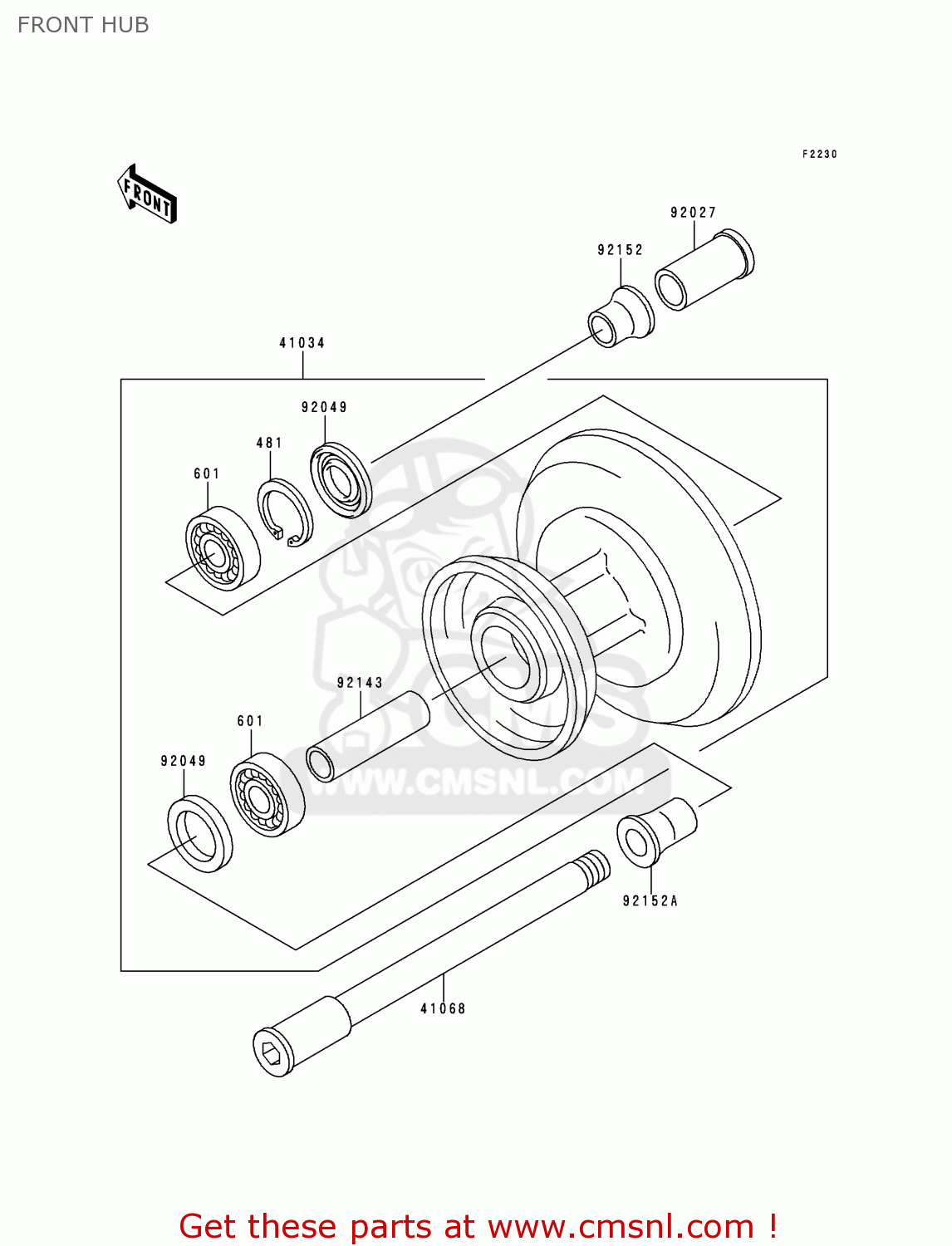

Front hub diagram EJ650A1 W650 1999 EUROPE UK FR NL FG IT NR

prices are in EUR

ref

part #

description

quantity

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6202UG
ref: 601

BEARING BALL

€ 19.50

41034

410341297
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 310.00

41068

410681175
ref: 41068

AXLE,FR

€ 49.50

92027

920271726
ref: 92027

COLLAR,FR AXLE,L=36.5

€ 17.50

92049

920491176
ref: 92049

SEAL-OIL,MH20354.5

€ 10.00

92143

921431185
ref: 92143

COLLAR,15.1X20X70

€ 12.50

92152

921521135
ref: 92152

COLLAR,FR AXLE,LH,L=2

€ 13.50

92152A

921521136
ref: 92152A

COLLAR,FR AXLE,RH,L=3

€ 9.50

all assemblies
