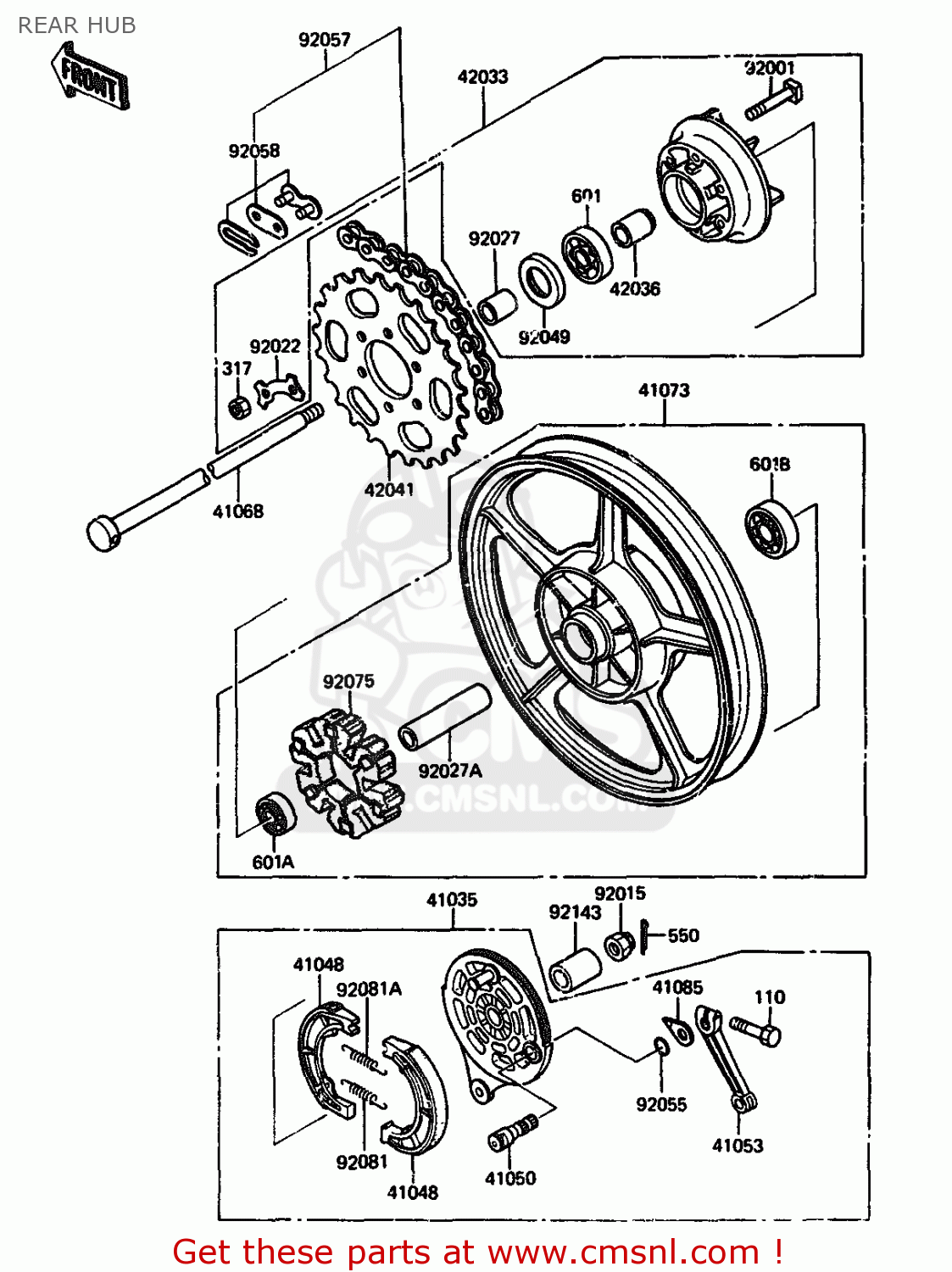

REAR HUB

ref

part #

description

quantity

41035

410351116
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 119.00

41048

410481025
ref: 41048

SHOE-BRAKE,RR (MCA)

€ 26.00

41050

42026026
ref: 41050

CAM-BRAKE

€ 16.00

41053

410531036
ref: 41053

LEVER-BRAKE CAM,RR

€ 39.00

41068

410681102
ref: 41068

AXLE,RR

€ 40.00

41073

410731168H9
ref: 41073

WHEEL-ASSY,RR,SOLIDE

€ 583.50

41085

41085013
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42033

420331050
ref: 42033

COUPLING-ASSY,RR

€ 108.00

42036

42036030
ref: 42036

SLEEVE,REAR HUB COPLG

€ 21.50

42041

420411115
ref: 42041

SPROCKET-HUB,36T

€ 20.50

92001

920011478
ref: 92001

BOLT,8X41

€ 2.00

92015

42045020
ref: 92015

NUT,14MM

€ 6.50

92022

92088019
ref: 92022

WASHER,SPROCKET LOCK

€ 4.00

92027

920271349
ref: 92027

COLLAR,REAR HUB,15X26

€ 16.50

92027A

920271508
ref: 92027A

COLLAR,RR HUB,L=57

€ 9.00

92049

92050060
ref: 92049

OIL SEAL,RR HUB BRNK

€ 12.00

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92057

920571090
ref: 92057

CHAIN,DRIVE,EK428SH-G

€ 31.00

92058

920581015
ref: 92058

JOINT-CHAIN,EK428SH

€ 3.50

92075

42014030
ref: 92075

DAMPER,REAR HUB SHOCK

€ 7.50

92081

920811550
ref: 92081

SPRING,BRAKE SHOE

€ 6.00

92081A

920811766
ref: 92081A

SPRING,BRAKE SHOE

€ 5.50

92143

921431153
ref: 92143

COLLAR,REAR AXLE,L=36

€ 11.50

110

110G0622
ref: 110

BOLT-HEX HEAD,6X22

€ 2.00

317

317B0800
ref: 317

NUT,8M/M

€ 0.50

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

601

601B6004
ref: 601

BEARING-BALL,#6004C3

€ 10.50

601A

601B6202Z
ref: 601A

BEARING-BALL,#6202ZC3

€ 13.00

601B

601B6302Z
ref: 601B

BEARING-BALL,#6302ZC3

€ 22.50
