MUFFLER

AR125A4 1986 UNITED KINGDOM GR NR SD ST

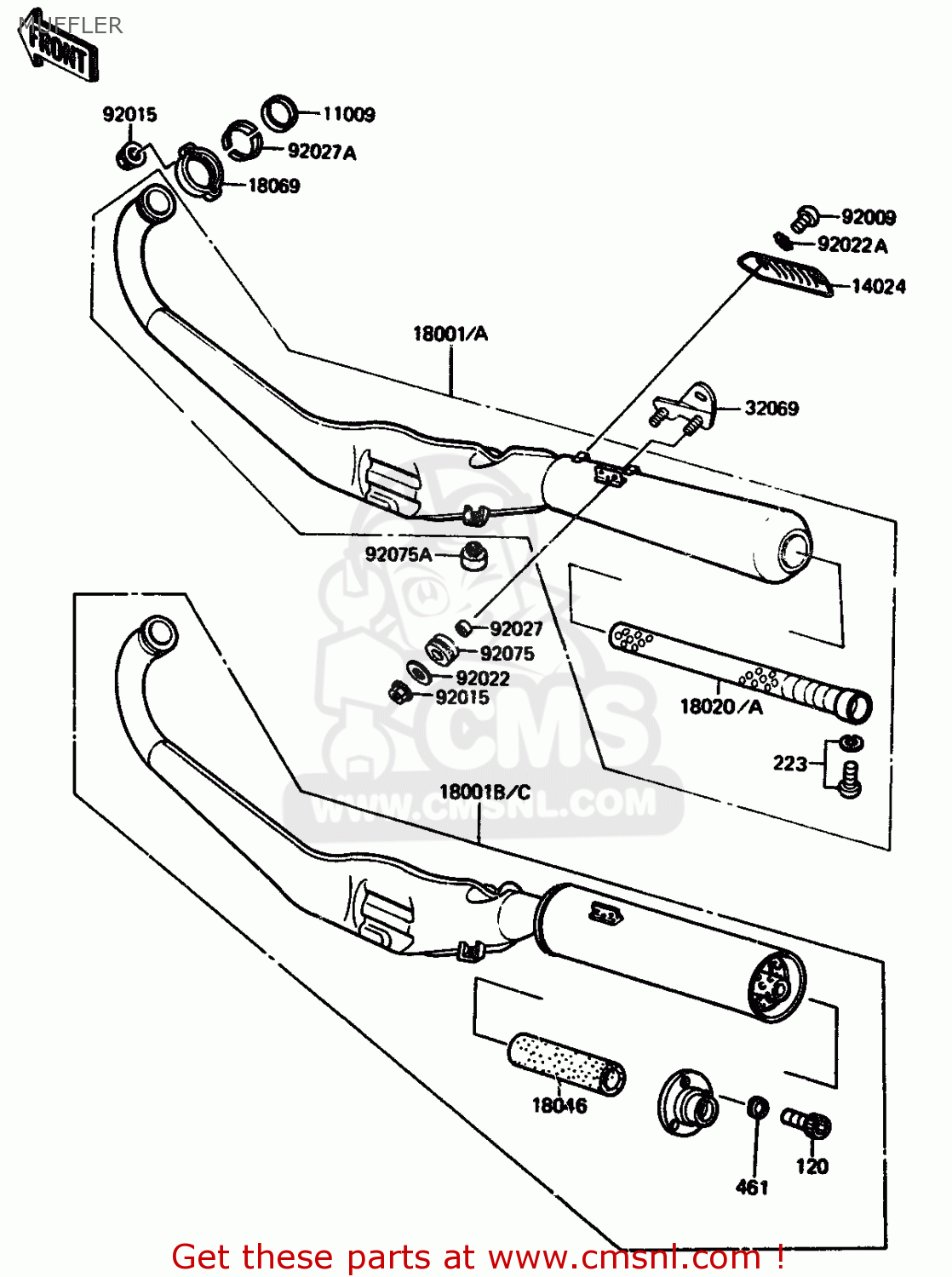

Muffler diagram AR125A4 1986 UNITED KINGDOM GR NR SD ST

prices are in EUR

ref

part #

description

quantity

11009

110091199
ref: 11009

GASKET,EXHAUST PIPE (MCA)

€ 5.50

18001B

180011611
ref: 18001B
GR, NR, SD, UK

MUFFLER

€ 451.50

18001C

180011621
ref: 18001C
ST

MUFFLER

€ 401.50

18046

180461066
ref: 18046

WOOL,MUFFLER

€ 18.00

18069

180691055
ref: 18069

HOLDER-EXHAUST PIPE

€ 25.00

32069

320691126
ref: 32069

BRACKET-MUFFLER

€ 9.00

92015

920151183
ref: 92015

NUT,FLANGED,8MM,BLACK

€ 1.00

92022

920221345
ref: 92022

WASHER,8X26X2.3

€ 2.50

92027

92027102
ref: 92027

COLLAR

€ 1.00

92027A

920271457
ref: 92027A

COLLAR,EXHAUST PIPE,B

€ 3.50

92075

18063005
ref: 92075

DAMPER,MUFFLER

€ 3.00

92075A

92075015
ref: 92075A

DAMPER RUBB-MAIN STND

€ 3.00

120

120S0510
ref: 120

BOLT-SOCKET

€ 0.50

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50
