FENDER
AR125A4 1986 UNITED KINGDOM GR NR SD ST

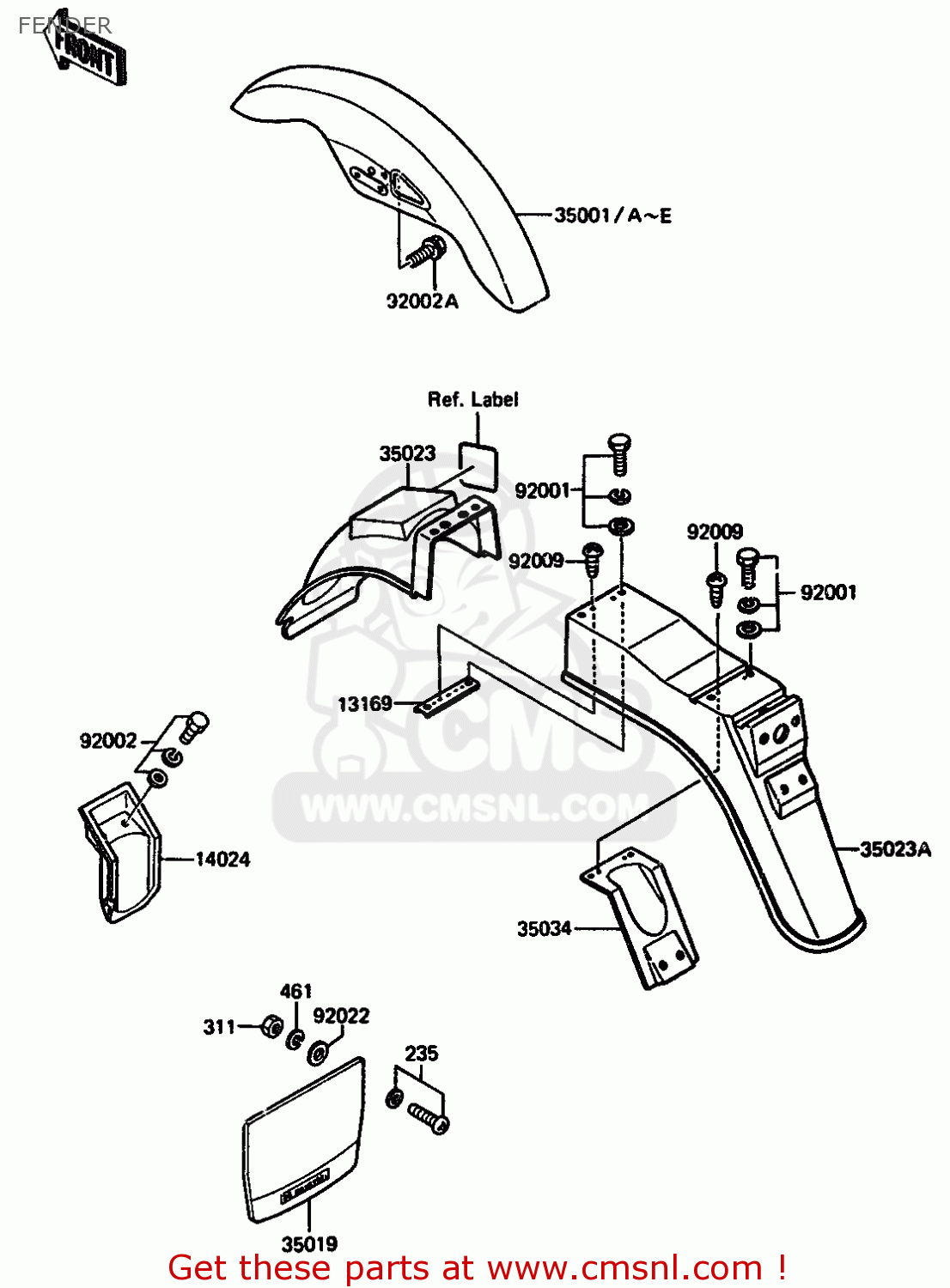

Fender diagram AR125A4 1986 UNITED KINGDOM GR NR SD ST
FENDER AR125A4 1986 UNITED KINGDOM GR NR SD ST
×
prices are in EUR
ref
part #
description
quantity
13169
131691149
ref: 13169
PLATE
€ 6.00
14024
140251542
ref: 14024
COVER,REAR FENDER
€ 13.00
35001
350011102B1
ref: 35001
FENDER-ASSY-FRONT,F.R
€ 70.00
35001B
350011102F2
ref: 35001B
FENDER-ASSY-FRONT,G.S
€ 70.00
35019
35037026
ref: 35019
FLAP,FENDER,RR
€ 17.00
35023
350231048
ref: 35023
FENDER-REAR,FR
€ 35.50
35023A
3502310606Z
ref: 35023A
FENDER-REAR,RR,BLACK
€ 81.00
35034
350341109
ref: 35034
REINFORCE,FENDER
€ 15.50
92001
920011772
ref: 92001
BOLT,6X16
€ 3.00
92002
920021108
ref: 92002
BOLT,6X14
€ 2.50
92002A
920021200
ref: 92002A
BOLT,FLANGED,8X16
€ 3.00
92009
920091155
ref: 92009
SCREW,TAPPING,4X8
€ 2.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
235
235B0614
ref: 235
SCREW-PAN-WP-CROS
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
