BRAKE PEDAL
AR125A4 1986 UNITED KINGDOM GR NR SD ST

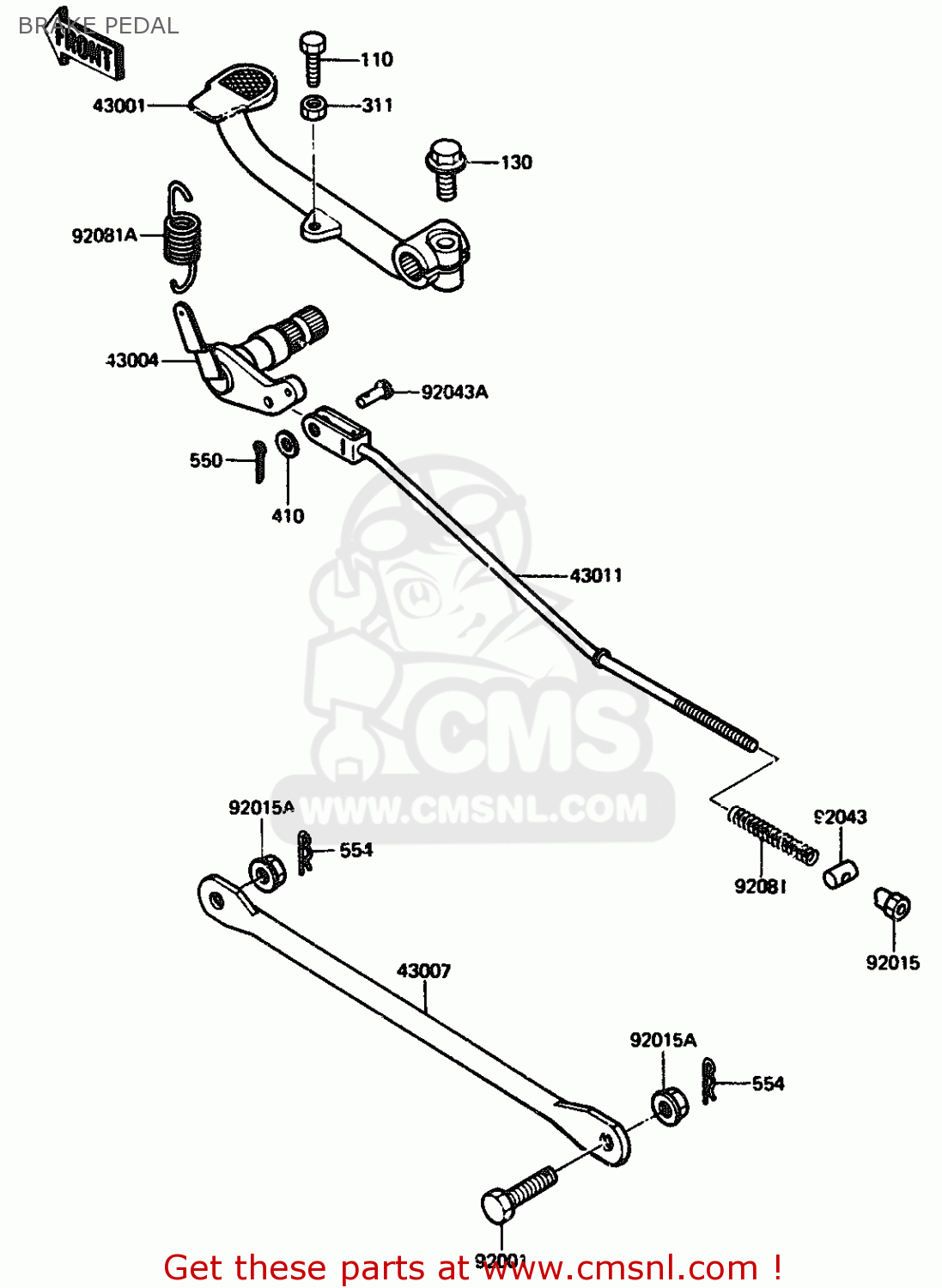

Brake pedal diagram AR125A4 1986 UNITED KINGDOM GR NR SD ST
BRAKE PEDAL AR125A4 1986 UNITED KINGDOM GR NR SD ST
×
prices are in EUR
ref
part #
description
quantity
43001
430011108
ref: 43001
LEVER-BRAKE,PEDAL
€ 24.50
43004
430041047
ref: 43004
SHAFT-BRAKE
€ 30.00
43007
430071119
ref: 43007
ROD-TORQUE
€ 30.50
43011
430111052
ref: 43011
ROD-BRAKE,L=372
€ 12.50
92001
92003096
ref: 92001
BOLT-TRQ LINK 10X29
€ 7.00
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
€ 4.00
92015A
920151428
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92043
92043039
ref: 92043
PIN,BRAKE ROD
€ 4.50
92043A
92043064
ref: 92043A
PIN-BRAKE ROD FITTING
€ 4.50
92081
43012001
ref: 92081
SPRING,BRAKE ROD
€ 3.00
92081A
920811296
ref: 92081A
SPRING,BRAKE PEDAL
€ 6.50
110
110C0625
ref: 110
BOLT,6X25
€ 2.50
130
130J0825
ref: 130
BOLT-FLANGED,8X25,BLA
€ 2.00
311
311C0600
ref: 311
NUT-HEX,6MM,BLACK
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
