CRANKSHAFT/PISTON

AR125A4 1986 UNITED KINGDOM GR NR SD ST

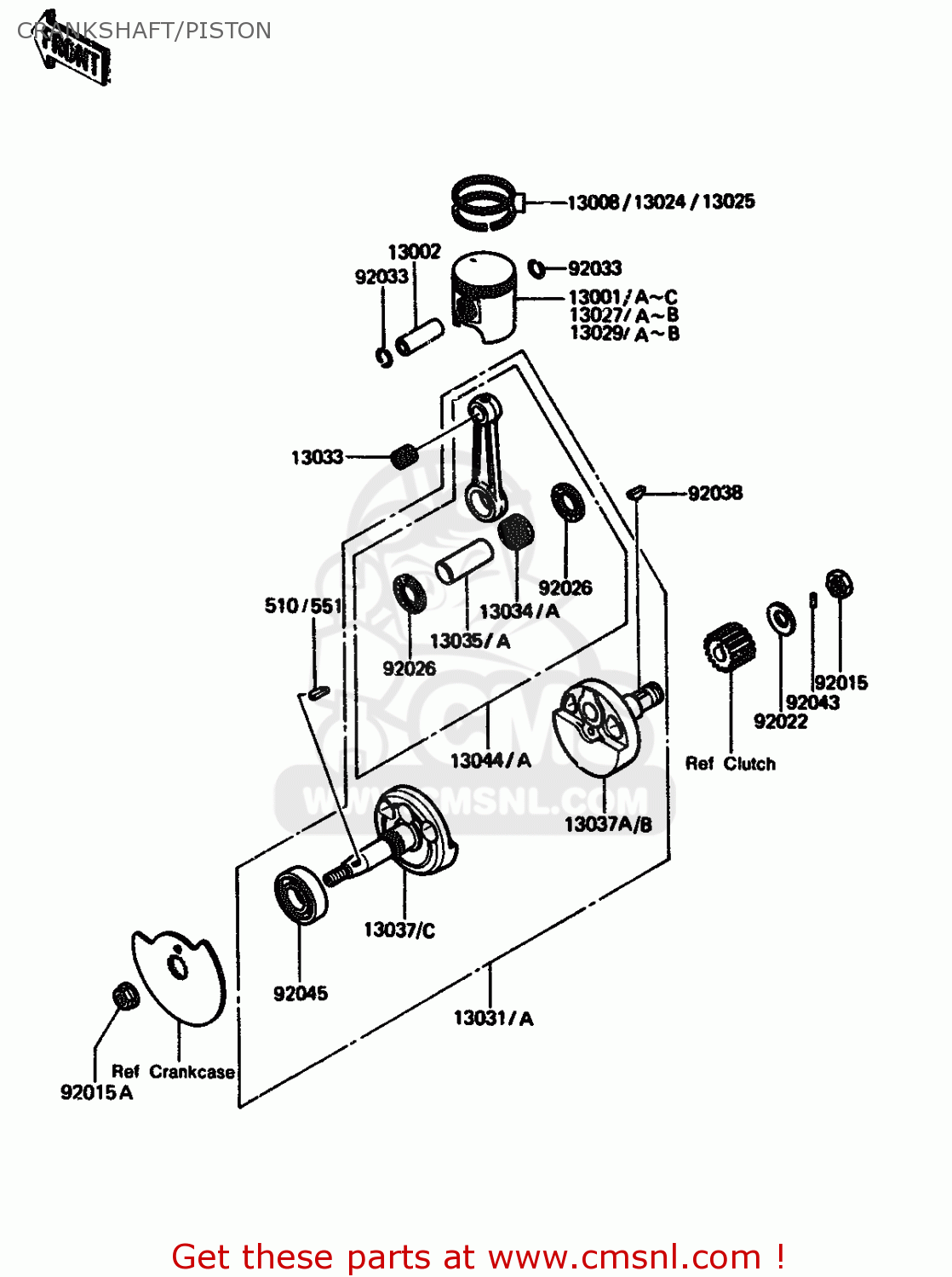

Crankshaft/piston diagram AR125A4 1986 UNITED KINGDOM GR NR SD ST

CRANKSHAFT/PISTON AR125A4 1986 UNITED KINGDOM GR NR SD ST
CRANKSHAFT/PISTON AR125A4 1986 UNITED KINGDOM GR NR SD ST
CRANKSHAFT/PISTON AR125A4 1986 UNITED KINGDOM GR NR SD ST
prices are in EUR
ref
part #
description
quantity
13001A
130011190
ref: 13001A
GR, NR, SD, UK
PISTON-ENGINE,STD
130011190
€ 44.00
13001C
130011247
ref: 13001C
ST
PISTON-ENGINE,STD
130011247
€ 19.00
13002
130021051
ref: 13002
PIN-PISTON
130021051
€ 17.00
13008
130085060
ref: 13008
RING-SET-PISTON,STD
130085060
€ 52.50
13024
130245025
ref: 13024
RING-SET-PISTON LL,O/
130245025
€ 62.00
13025
130255026
ref: 13025
RING-SET-PISTON L,O/S
130255026
€ 57.50
13027A
130271129
ref: 13027A
GR, NR, SD, UK
PISTON-ENGINE LL,O/S
130271129
€ 38.00
13027B
130271142
ref: 13027B
ST
PISTON-ENGINE LL,O/S
€ 51.00
13029A
130291129
ref: 13029A
GR, NR, SD, UK
PISTON-ENGINE L,O/S 0
130291129
€ 54.50
13029B
130291154
ref: 13029B
ST
PISTON-ENGINE L,O/S 0
€ 52.50
13031A
130311184
ref: 13031A
CRANKSHAFT-COMP
130311184
€ 348.50
13033
130331008
ref: 13033
BEARING-NEEDLE,KBK15X
130331008
€ 23.50
13034A
130341070
ref: 13034A
BEARING-BIG END
130341070
€ 30.50
13035A
130351059
ref: 13035A
PIN-CRANK
€ 15.50
13037B
130371249
ref: 13037B
CRANKSHAFT,RH
130371249
€ 164.00
13037C
130371294
ref: 13037C
CRANKSHAFT,LH
130371294
€ 164.00
13044A
130445044
ref: 13044A
SET-CONNECTING ROD
130445044
€ 159.00
92015
92015072
ref: 92015
NUT,LOCK,16MM
92015072
€ 4.50
92015A
920151156
ref: 92015A
NUT,12MM
920151156
€ 4.50
92022
920221356
ref: 92022
WASHER,16.3X29X1.75
920221356
€ 4.50
92026
920261136
ref: 92026
SPACER,22.2X37X1.0
920261136
€ 5.50
92033
92036005
ref: 92033
CIRCLIP-PISTON PIN
92036005
€ 2.50
92038
92038003
ref: 92038
WOODRUFF KEY-PRY PINI
92038003
€ 1.50
92043
92042035
ref: 92043
PIN,DOWEL,2.5X12.8
92042035
€ 2.50
92045
920451061
ref: 92045
BEARING-BALL,R-6205C3
920451061
€ 30.50
510
510A3200
ref: 510
KEY-WOODRUFF
510A3200
€ 1.50
