CARBURETOR
AR125A4 1986 UNITED KINGDOM GR NR SD ST

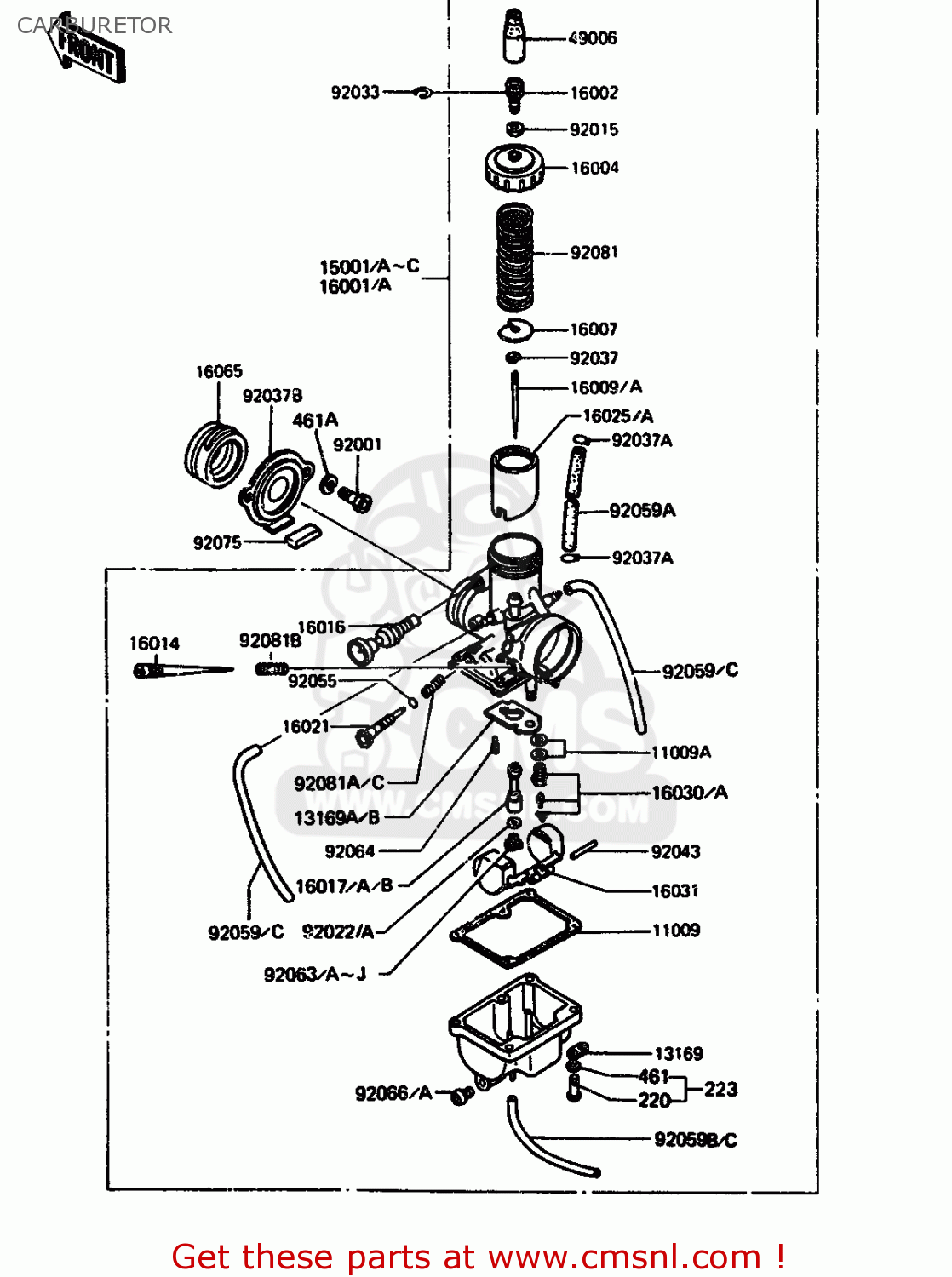

Carburetor diagram AR125A4 1986 UNITED KINGDOM GR NR SD ST
CARBURETOR AR125A4 1986 UNITED KINGDOM GR NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091147
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
11009A
16029004
ref: 11009A
WASHER-FLOAT VLV SEAT
€ 2.50
13169
131691226
ref: 13169
PLATE,TUBE CLAMP
€ 5.00
13169B
131691929
ref: 13169B
PLATE,LOCK
€ 7.00
15001B
150011245
ref: 15001B
GR, NR, SD, UK
CARBURETOR-ASSY
€ 335.50
15001C
150011303
ref: 15001C
ST
CARBURETOR-ASSY
€ 275.50
16002
16002011
ref: 16002
CABLE ADJUSTER
€ 9.50
16004
16004025
ref: 16004
CAP,MIXING CHAMBER
€ 23.50
16007
16007023
ref: 16007
SPRING SEAT,THRTL VL
€ 7.00
16009
160091211
ref: 16009
ST
NEEDLE-JET,4D06-2
€ 20.50
16009A
160091322
ref: 16009A
GR, NR, SD, UK
NEEDLE-JET,4D6-1
€ 20.50
16014
160141031
ref: 16014
SCREW-PILOT AIR
€ 12.00
16016
160161027
ref: 16016
PLUNGER
€ 24.00
16017A
160171322
ref: 16017A
GR, NR, SD, UK
JET-NEEDLE,P-2
€ 28.50
16017B
160171325
ref: 16017B
ST
JET-NEEDLE,P-0
€ 21.00
16021
160211042
ref: 16021
SCREW-THROTTLE STOP
€ 11.50
16025A
160251128
ref: 16025A
VALVE-THROTTLE,THROTT
€ 65.00
16030A
160301053
ref: 16030A
VALVE-FLOAT,#2.0
€ 40.50
16031
160311005
ref: 16031
FLOAT
€ 39.00
16065
160651061
ref: 16065
HOLDER-CARBURETOR
€ 9.50
49006
490061085
ref: 49006
BOOT,CARBURETOR
€ 22.00
92001
920011782
ref: 92001
BOLT,6X14
€ 2.50
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92022
16034001
ref: 92022
WASHER-MAIN JET
€ 2.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
92037072
ref: 92037A
CLAMP,TUBE
€ 4.00
92037B
920371351
ref: 92037B
CLAMP,CARBURETOR HOLD
€ 6.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92059A
920591023
ref: 92059A
HOSE,FUEL TAP DIAPHRA
€ 17.00
92059C
920591429
ref: 92059C
TUBE,3X5X250
€ 5.50
92063A
92063068
ref: 92063A
(RACING USE ONLY)
MAIN JET,#92.5R
€ 15.50
92063D
920631029
ref: 92063D
(RACING USE ONLY)
JET-MAIN,#A90R
€ 10.50
92063E
920631031
ref: 92063E
MAIN JET,#95R
€ 10.00
92063G
920631033
ref: 92063G
(RACING USE ONLY)
JET-MAIN,#A100R
€ 17.00
92063H
920631035
ref: 92063H
MAIN JET,#97.5R
€ 10.00
92064
920641033
ref: 92064
JET-PILOT,#27.5
€ 11.50
92066A
920661171
ref: 92066A
PLUG,DRAIN
€ 10.50
92075
920751423
ref: 92075
DAMPER,CARBURETOR
€ 2.00
92081
16006023
ref: 92081
SPRING,THROTTLE VALV
€ 10.00
92081A
920811152
ref: 92081A
SPRING,THROTTLE ADJST
€ 4.00
92081B
920811153
ref: 92081B
SPRING,AIR SCREW
€ 3.00
223
223B0416
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
461A
461K0600
ref: 461A
WASHER-SPRING
€ 0.50
