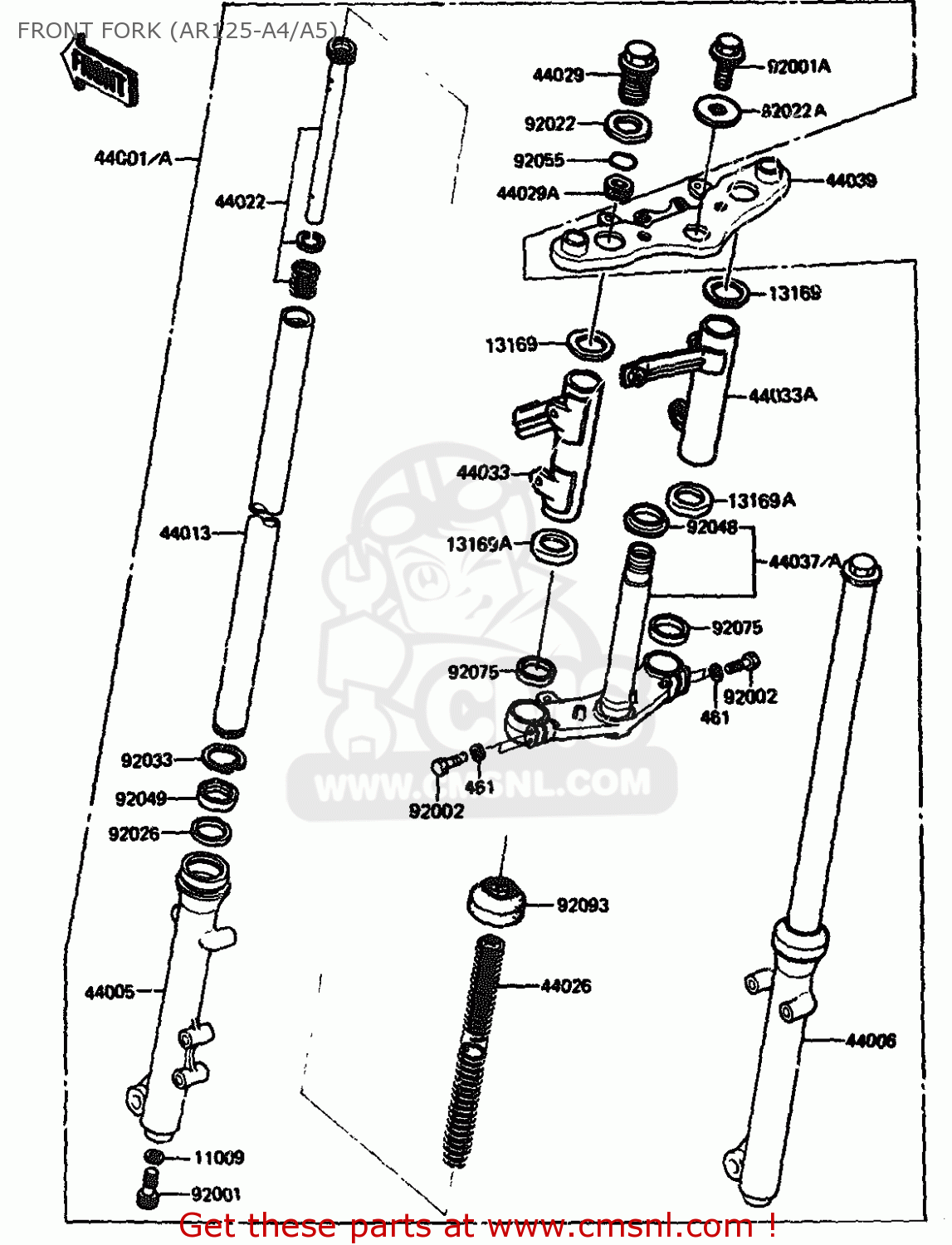

FRONT FORK (AR125-A4/A5)

ref

part #

description

quantity

11009

44045051
ref: 11009

GASKET,FORK CYLINDER (NAS)

€ 4.00

13169

131691557
ref: 13169

PLATE,FORK COVER

€ 5.50

13169A

131691626
ref: 13169A

PLATE,FORK COVER,LWR

€ 6.00

44001

440011627
ref: 44001
GR, ST, UK

FORK-FRONT

€ 957.00

44001A

440011630
ref: 44001A
NR, SD

FORK-FRONT

€ 957.00

44005

440051121
ref: 44005

PIPE-LEFT FORK OUTER

€ 95.00

44006

440061121
ref: 44006

PIPE-RIGHT FORK OUTER

€ 132.50

44013

440131100
ref: 44013

PIPE-FORK INNER

€ 89.00

44022

440221086
ref: 44022

CYLINDER-FORK

€ 32.50

44026

440261164
ref: 44026

SPRING-FRONT FORK

€ 26.00

44029

440291017
ref: 44029

SEAT-FORK SPRING,BOLT

€ 11.50

44029A

440291018
ref: 44029A

SEAT-FORK SPRING

€ 9.50

44033

440331172
ref: 44033

COVER-FORK,LH

€ 76.50

44033A

440331173
ref: 44033A

COVER-FORK,RH

€ 76.50

44037

440371104
ref: 44037
NR, SD

HOLDER-FORK UNDER

€ 136.50

44037A

440371151
ref: 44037A
GR, ST, UK

HOLDER-FRONT UNDER

€ 136.50

44039

440391137
ref: 44039

HOLDER-FORK UPPER

€ 91.50

92001

44041078
ref: 92001

BOLT, FORK CYLINDER

€ 6.50

92001A

920011318
ref: 92001A

BOLT,STEERING STEM

€ 15.50

92002

920021763
ref: 92002

BOLT

€ 4.50

92022

920221409
ref: 92022

WASHER

€ 4.50

92022A

920221410
ref: 92022A

WASHER

€ 5.00

92026

920261121
ref: 92026

SPACER,FORK OUTER TUB

€ 4.50

92033

920331028
ref: 92033

CIRCLIP,FORK OUTER

€ 3.00

92048

92047013
ref: 92048

CONE,STRG STM

€ 12.50

92049

920491069
ref: 92049

OIL SEAL

€ 13.00

92055

920551081
ref: 92055

RING-O,FORK TOP

€ 3.00

92075

920751250
ref: 92075

DAMPER,30.8X40X5.5

€ 3.50

92093

920931054
ref: 92093

DUST SHIELD

€ 11.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50
