HEADLIGHT ('71-'73 F7/F7-A/F7-B)
F7 1971 USA

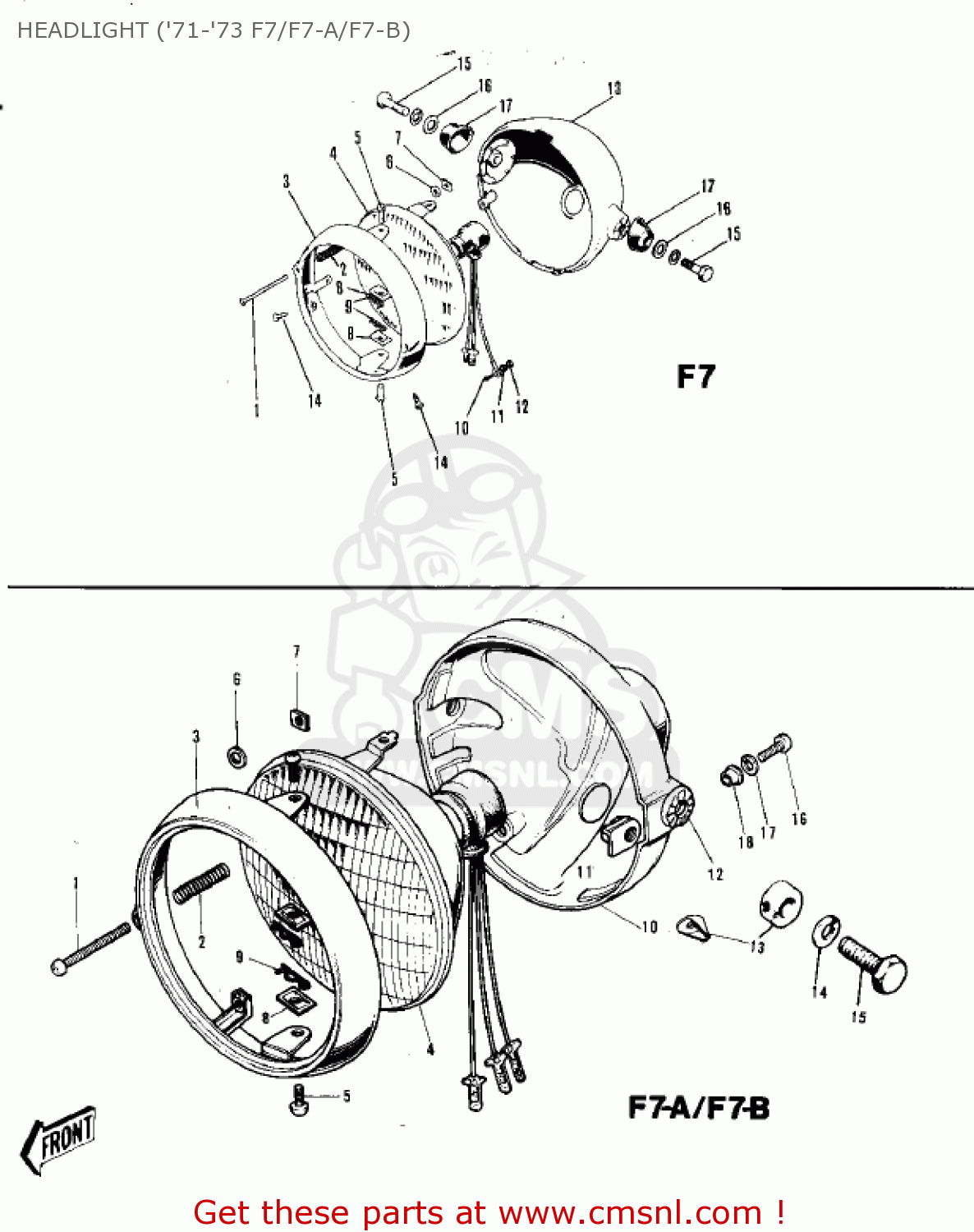

Headlight ('71-'73 f7/f7-a/f7-b) diagram F7 1971 USA
HEADLIGHT ('71-'73 F7/F7-A/F7-B) F7 1971 USA
×
prices are in EUR
ref
part #
description
quantity
?
23003008
ref: ?
Includes items 1 - 9
LAMP UNIT-HEAD
€ 52.00
1
23019021
ref: 1
SCREW-FORCUS ADJUST
€ 3.00
2
23014005
ref: 2
SPRING-FOCUS ADJUST
€ 2.50
3
23006014
ref: 3
HEADLAMP RIM
€ 56.50
4
23007022
ref: 4
SEALED BEAM UNIT
€ 124.50
5
23019018
ref: 5
SCREW-LENS UNIT FITT
€ 2.00
6
23021004
ref: 6
WASHER,4.1X8X0.8
€ 2.00
7
23020016
ref: 7
NUT
€ 2.00
8
23020009
ref: 8
NUT,LENS UNIT FITTING
€ 2.50
9
23022001
ref: 9
PIN
€ 2.50
10
220B0306
ref: 10
SCREW-PAN-CROS
€ 0.50
11
461F0300
ref: 11
WASHER-SPRING,3MM
€ 0.50
12
311B0300
ref: 12
NUT-HEX
€ 0.50
13
2300502221
ref: 13
BODY-HEAD LAMP,BLACK
€ 68.00
14
222E0510
ref: 14
SCREW-OVL CNTSNK,5X10
€ 2.00
15
92007045
ref: 15
BOLT, HEX HEAD, 10X25
€ 6.00
16
411B1000
ref: 16
WASHER-PLAIN,10MM
€ 0.50
17
92075058
ref: 17
DAMPER RUBBER
€ 1.50
?
23003015
ref: ?
Includes items 1 - 9
LAMP UNIT-HEAD
€ 124.00
1
23019021
ref: 1
SCREW-FORCUS ADJUST
€ 3.00
2
23014005
ref: 2
SPRING-FOCUS ADJUST
€ 2.50
3
23006028
ref: 3
RIM-HEAD LAMP
€ 43.00
4
23007032
ref: 4
LENS UNIT-HEAD LAMP
€ 94.50
5
23019018
ref: 5
SCREW-LENS UNIT FITT
€ 2.00
6
23021004
ref: 6
WASHER,4.1X8X0.8
€ 2.00
7
23020016
ref: 7
NUT
€ 2.00
8
23020009
ref: 8
NUT,LENS UNIT FITTING
€ 2.50
9
23022001
ref: 9
PIN
€ 2.50
10
2300503410
ref: 10
BODY-HEAD LAMP,BLACK
€ 36.50
11
23020017
ref: 11
NUT
€ 2.00
12
23021011
ref: 12
WASHER-LOCK
€ 3.00
13
92075079
ref: 13
F7A
DAMPER
€ 3.00
13
92075134
ref: 13
F7B
DAMPER
€ 7.00
14
461F1000
ref: 14
WASHER-SPRING,10MM
€ 0.50
15
92007024
ref: 15
BOLT,10MM
€ 4.50
16
92011024
ref: 16
SCREW-PAN HEAD,5MM
€ 2.00
17
461F0500
ref: 17
WASHER-SPRING,5MM
€ 0.50
18
23021010
ref: 18
WASHER
€ 2.50
