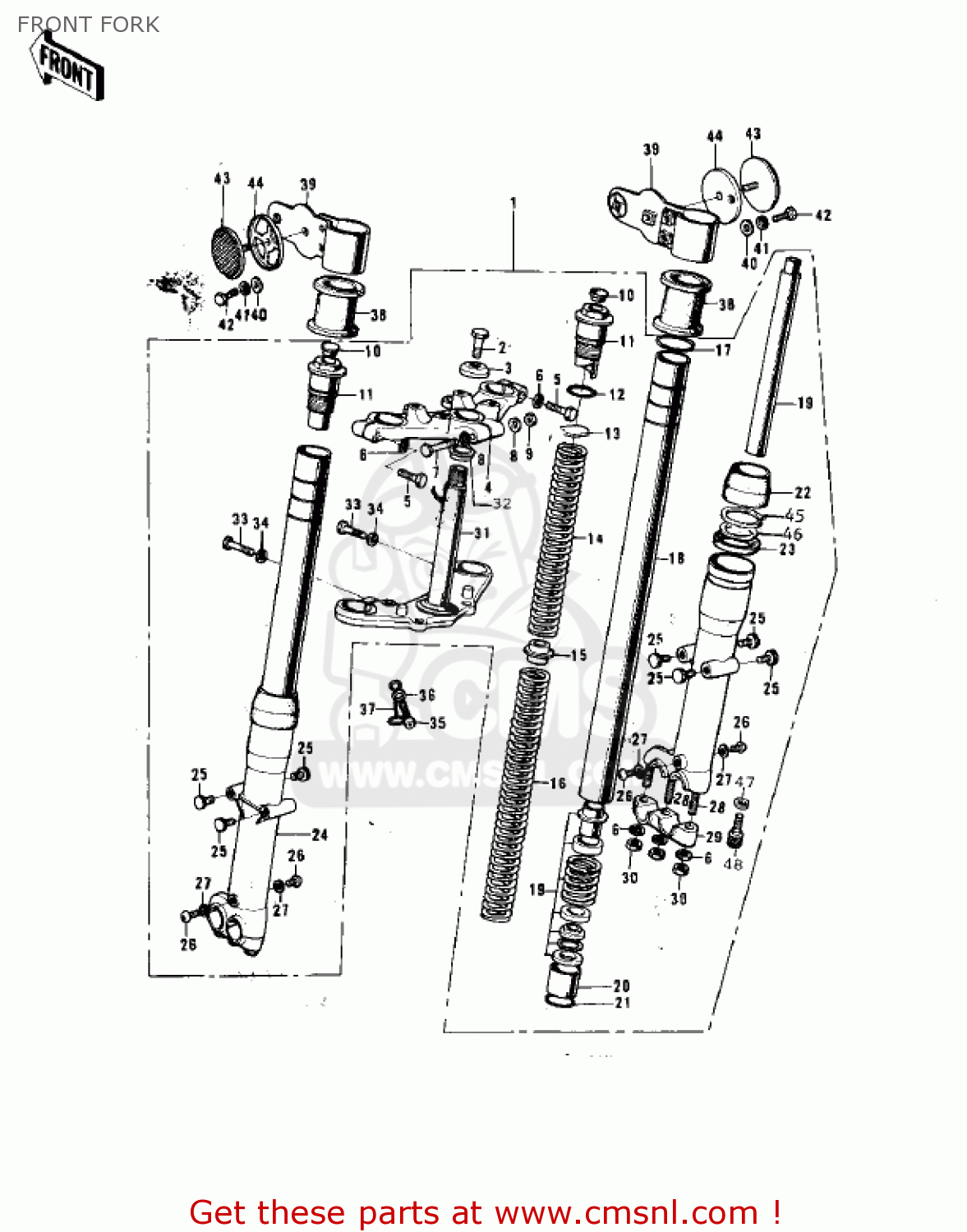

FRONT FORK

ref

part #

description

quantity

1

44001102
ref: 1

FRONT FORK

€ 1,717.00

2

44041007
ref: 2

BOLT-STRNG STEM HEAD

€ 11.50

3

44043016
ref: 3

WASHER,FORK UPPER HOL

€ 7.00

4

44039049
ref: 4

HEAD-STEERING STEM

€ 91.50

5

44041044
ref: 5

BOLT-STEERING STEM HD

€ 6.50

6

461F0800
ref: 6

WASHER-SPRING,8MM

€ 0.50

7

44041042
ref: 7

BOLT-STEERING STEM HD

€ 3.00

8

410B0800
ref: 8

WASHER-PLAIN-SMALL,8M

€ 0.50

9

920151124
ref: 9

NUT,LOCK,8MM

€ 3.50

10

44062004
ref: 10

FORK BOLT CAP,TOP

€ 8.00

11

44041046
ref: 11

BOLT,FORK TOP

€ 95.50

12

44046014
ref: 12

'O' RING-INNER TUBE

€ 4.00

13

44029016
ref: 13

FORK SPRING SEAT WASHER

€ 6.00

14

44026035
ref: 14
L = 126 M/M

FORK SPRING,SHORT

€ 59.50

15

44028019
ref: 15

FORK SPRING,GUIDE

€ 12.50

16

44026034
ref: 16
L = 346 M/M

FORK SPRING,LONG

€ 56.50

17

44044011
ref: 17

CIRCLIP

€ 6.50

18

44013027
ref: 18

FORK INNER TUBE

€ 326.50

19

44022005
ref: 19

FORK CYLINDER

€ 151.00

20

44018004
ref: 20

FORK PISTON

€ 19.00

21

44044010
ref: 21

CIRCLIP

€ 4.50

22

44010006
ref: 22

SEAL,FORK

€ 24.00

23

920491049
ref: 23

SEAL-OIL

€ 14.50

24

4400503480
ref: 24
BUFF FINISH

FORK OUTER TUBE,LH,BUFF

€ 377.00

25

44062002
ref: 25

CAP

€ 1.50

26

220B0408
ref: 26

SCREW-PAN-CROS

€ 0.50

27

44045002
ref: 27

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

28

172G0830
ref: 28

STUD,8X30

€ 1.50

29

44063002
ref: 29

FRONT AXLE HOLDER

€ 51.50

30

311B0800
ref: 30

NUT,8MM

€ 0.50

31

44037054
ref: 31

STEM-STEERING

€ 133.50

32

92047004
ref: 32

CONE-LOWER BEARING

€ 13.00

33

113B1032
ref: 33

BOLT-HEX HEAD,10X32

€ 3.50

34

461F1000
ref: 34

WASHER-SPRING,10MM

€ 0.50

35

112G0610
ref: 35

BOLT,6X10

€ 0.50

36

410B0600
ref: 36

WASHER-PLAIN-SMALL,6M

€ 0.50

37

92037046
ref: 37

CLAMP,CABLE

€ 3.00

38

92075064
ref: 38

DAMPER RUBBER

€ 5.50

39

2306401121
ref: 39
FIST BLACK

HEADLAMP BRACKET,FLAT BLACK

€ 23.50

40

410B0600
ref: 40

WASHER-PLAIN-SMALL,6M

€ 0.50

41

461F0600
ref: 41

WASHER-SPRING,6MM

€ 0.50

42

112G0618
ref: 42

BOLT-UPSET

€ 0.50

43

28012006
ref: 43

REFLECTOR-REFLEX,FRNT

€ 16.00

44

92075137
ref: 44

DAMPER RUBBER

€ 3.00

45

44044014
ref: 45

OIL SEAL FITTING CIRCLIP

€ 12.00

46

44043045
ref: 46

OIL SEAL FITTING WASHER

€ 9.50

47

44045030
ref: 47

GASKET,FORK CYLINDER

€ 2.50

48

44041027
ref: 48

BOLT-FORK CYLINDER

€ 2.50
