FRONT HUB/BRAKE ('74-'75 F7-C/F6
F7 1971 USA

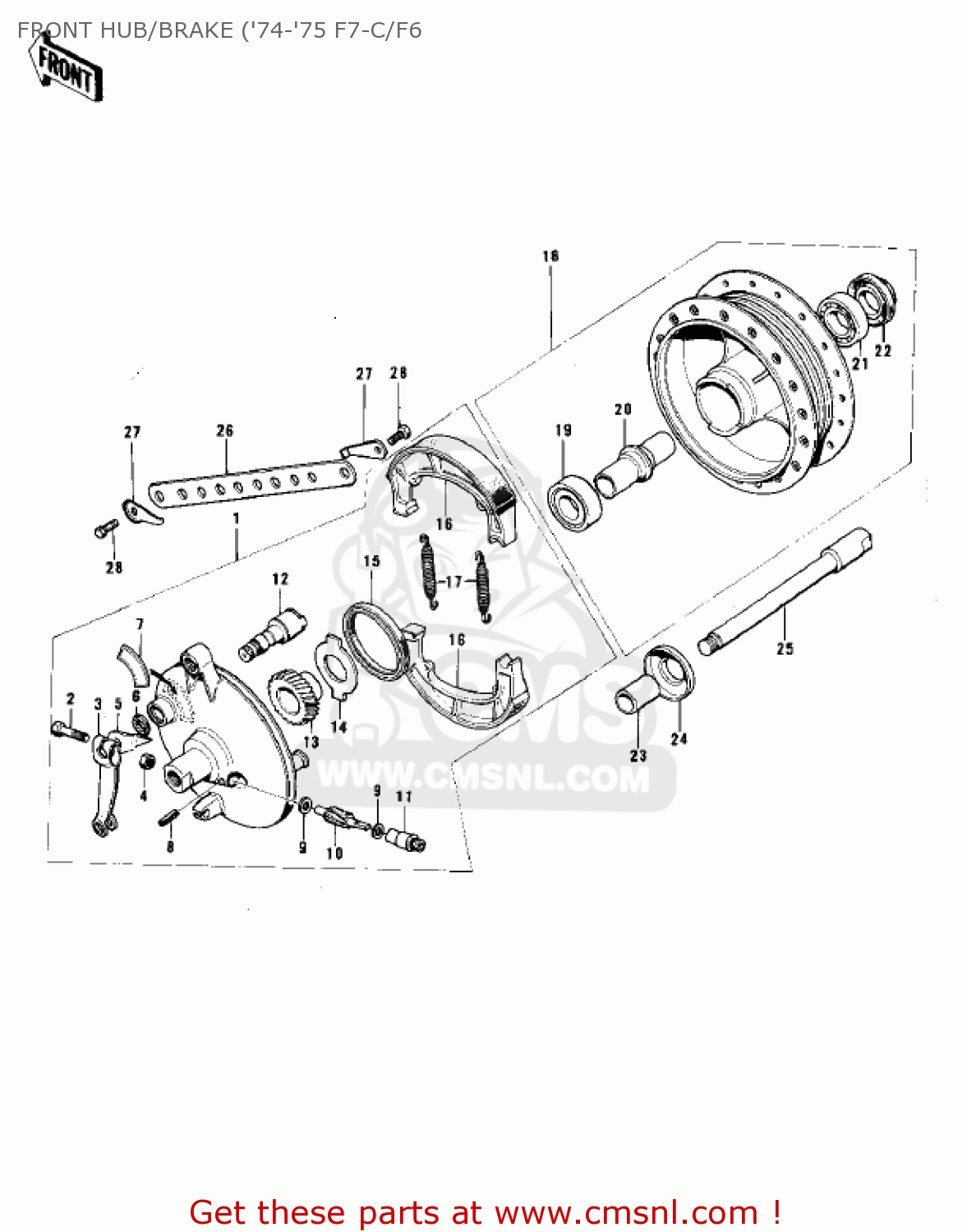

Front hub/brake ('74-'75 f7-c/f6 diagram F7 1971 USA
FRONT HUB/BRAKE ('74-'75 F7-C/F6 F7 1971 USA
×
prices are in EUR
ref
part #
description
quantity
1
4103504480
ref: 1
BUFF FINISH
FRONT BRAKE PANEL ASSEMBLY,BUFF
€ 351.00
2
112G0630
ref: 2
BOLT-UPSET
€ 1.00
3
41053005
ref: 3
LEVER-BRAKE CAM
€ 11.50
4
92072007
ref: 4
OIL TANK BAND
€ 9.50
5
41085012
ref: 5
INDICATOR,BRAKE SHOE
€ 3.50
6
92055004
ref: 6
RING-O,BRAKE CAM
€ 3.00
7
41084007
ref: 7
LABEL,BRAKE SHOE,FRONT
€ 4.50
8
41082001
ref: 8
PIN-SPRING
€ 2.50
9
41063001
ref: 9
WASHER-THRST SPD PINI
€ 3.00
10
41060004
ref: 10
PINION,SPEEDOMETER
€ 20.50
11
41062005
ref: 11
BUSHING,SPEEDOMETER C
€ 12.00
12
41050019
ref: 12
FRONT BRAKE CAMSHAFT
€ 25.00
13
41059012
ref: 13
SPEEDOMETER GEAR
€ 41.00
14
41064006
ref: 14
RECEIVER-SPEEDOMETER
€ 4.50
15
92050010
ref: 15
OIL SEAL-F BRK PANEL
€ 13.00
16
42019010
ref: 16
SHOE,BRAKE (MCA)
€ 26.00
17
920811766
ref: 17
SPRING,BRAKE SHOE
€ 5.50
18
4103402080
ref: 18
BUFF FINISH
FRONT BRAKE DRUM ASSEMBLY,BUFF
€ 256.00
19
601B6301Z
ref: 19
BEARING-BALL,#6301ZC3
€ 15.00
20
41039005
ref: 20
COLLAR,L=47
€ 8.50
21
601B6301
ref: 21
BEARING-BALL,#6301C3
€ 13.00
22
92050011
ref: 22
OIL SEAL-FR BRK DRUM
€ 8.00
23
41069005
ref: 23
COLLAR,12X18X19.4
€ 9.50
24
41042006
ref: 24
COVER-SEAL
€ 9.00
25
41068032
ref: 25
AXLE-FRONT
€ 23.50
26
43007022
ref: 26
TORQUE LINK-FRONT BRK
€ 11.50
27
92088012
ref: 27
WASHER-LOCK
€ 4.50
28
92001086
ref: 28
BOLT-HEX HEAD,8X20
€ 1.50
