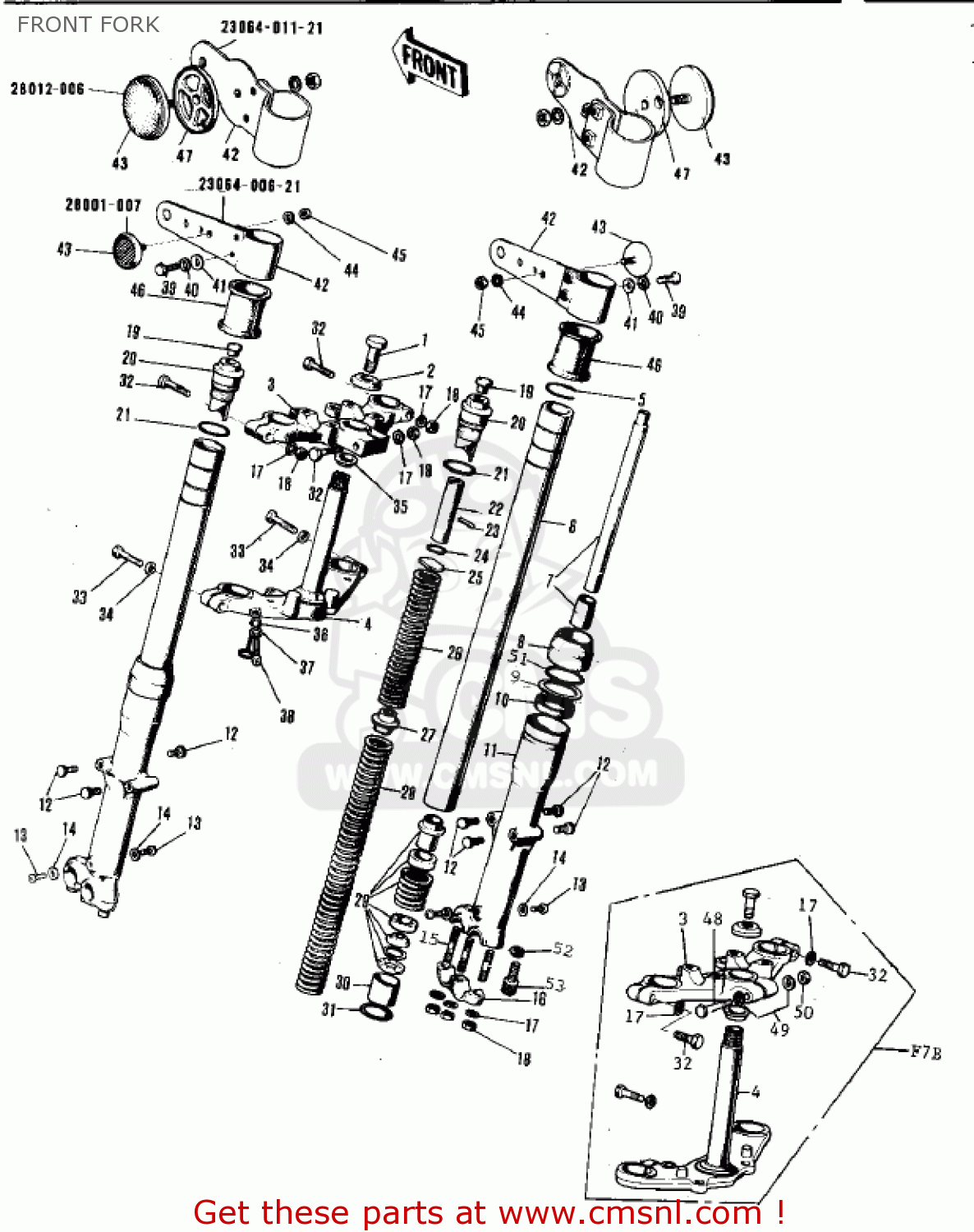

FRONT FORK

ref

part #

description

quantity

?

44001064
ref: ?
Includes items 1 - 3

FRONT FORK ASSEMBLY

€ 1,181.50

?

4400106480
ref: ?
Includes items 1 - 3

FRONT FORK,BUFF

€ 1,717.00

?

44001102
ref: ?
Includes items 1 - 3

FRONT FORK

€ 1,717.00

1

44041007
ref: 1

BOLT-STRNG STEM HEAD

€ 11.50

2

44043016
ref: 2

WASHER,FORK UPPER HOL

€ 7.00

3

44039035
ref: 3

HEAD-STEERING STEM

€ 98.00

3

44039049
ref: 3
F7B

HEAD-STEERING STEM

€ 91.50

?

44037054
ref: ?
Includes items 4 - 4

STEM-STEERING

€ 133.50

5

44044011
ref: 5

CIRCLIP

€ 6.50

6

44013027
ref: 6

FORK INNER TUBE

€ 326.50

?

44022005
ref: ?
Includes items 7 and

FORK CYLINDER

€ 151.00

8

44010006
ref: 8

SEAL,FORK

€ 24.00

9

44043045
ref: 9

OIL SEAL FITTING WASHER

€ 9.50

10

920491049
ref: 10

SEAL-OIL

€ 14.50

11

4400503480
ref: 11

FORK OUTER TUBE,LH,BUFF

€ 377.00

11

4400503480
ref: 11
F7B

FORK OUTER TUBE,LH,BUFF

€ 377.00

12

44062002
ref: 12

CAP

€ 1.50

13

220B0408
ref: 13

SCREW-PAN-CROS

€ 0.50

14

44045002
ref: 14

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

15

172G0830
ref: 15

STUD,8X30

€ 1.50

16

44063002
ref: 16

FRONT AXLE HOLDER

€ 51.50

17

461F0800
ref: 17

WASHER-SPRING,8MM

€ 0.50

17

461F0800
ref: 17
F7B

WASHER-SPRING,8MM

€ 0.50

18

311B0800
ref: 18

NUT,8MM

€ 0.50

18

311B0800
ref: 18
F7B

NUT,8MM

€ 0.50

19

14039001
ref: 19

CAP,RUBBER

€ 3.00

19

44062004
ref: 19
F7B

FORK BOLT CAP,TOP

€ 8.00

20

44041035
ref: 20

BOLT,FORK TOP

€ 86.00

20

44041046
ref: 20
F7B

BOLT,FORK TOP

€ 95.50

21

44046014
ref: 21

'O' RING-INNER TUBE

€ 4.00

25

44029016
ref: 25

FORK SPRING SEAT WASHER

€ 6.00

26

44026035
ref: 26
L=126 M/M

FORK SPRING,SHORT

€ 59.50

27

44028019
ref: 27

FORK SPRING,GUIDE

€ 12.50

28

44026034
ref: 28
L=346 M/M

FORK SPRING,LONG

€ 56.50

30

44018004
ref: 30

FORK PISTON

€ 19.00

31

44044010
ref: 31

CIRCLIP

€ 4.50

32

920011578
ref: 32

BOLT,FLANGED,8X40

€ 4.00

32

44041044
ref: 32
F7B

BOLT-STEERING STEM HD

€ 6.50

33

113B1032
ref: 33

BOLT-HEX HEAD,10X32

€ 3.50

34

461F1000
ref: 34

WASHER-SPRING,10MM

€ 0.50

35

92047004
ref: 35

CONE-LOWER BEARING

€ 13.00

36

92037108
ref: 36

CLAMP

€ 6.00

37

410B0600
ref: 37

WASHER-PLAIN-SMALL,6M

€ 0.50

38

112G0610
ref: 38

BOLT,6X10

€ 0.50

39

112G0618
ref: 39

BOLT-UPSET

€ 0.50

40

461F0600
ref: 40

WASHER-SPRING,6MM

€ 0.50

41

410B0600
ref: 41

WASHER-PLAIN-SMALL,6M

€ 0.50

42

2306400621
ref: 42

HEADLAMP BRACKET,FLAT BLACK

€ 23.50

42

2306400321
ref: 42
F7A

HEADLAMP BRACKET,FLAT BLACK

€ 25.00

42

2306401121
ref: 42
L=61 M/M

HEADLAMP BRACKET,FLAT BLACK

€ 23.50

43

28001007
ref: 43

REFLECTOR-REFLEX

€ 3.00

43

28012006
ref: 43

REFLECTOR-REFLEX,FRNT

€ 16.00

44

461F0500
ref: 44

WASHER-SPRING,5MM

€ 0.50

45

311B0500
ref: 45

NUT-HEX

€ 0.50

46

92075064
ref: 46

DAMPER RUBBER

€ 5.50

47

92075137
ref: 47

DAMPER RUBBER

€ 3.00

48

44041042
ref: 48
F7B

BOLT-STEERING STEM HD

€ 3.00

49

410B0800
ref: 49
F7B

WASHER-PLAIN-SMALL,8M

€ 0.50

50

920151124
ref: 50
F7B

NUT,LOCK,8MM

€ 3.50

51

44044014
ref: 51

OIL SEAL FITTING CIRCLIP

€ 12.00

52

44045030
ref: 52

GASKET,FORK CYLINDER

€ 2.50

53

44041027
ref: 53

BOLT-FORK CYLINDER

€ 2.50

all assemblies
