FOOTRESTS/STAND/BRAKE/PEDAL
F7 1971 USA

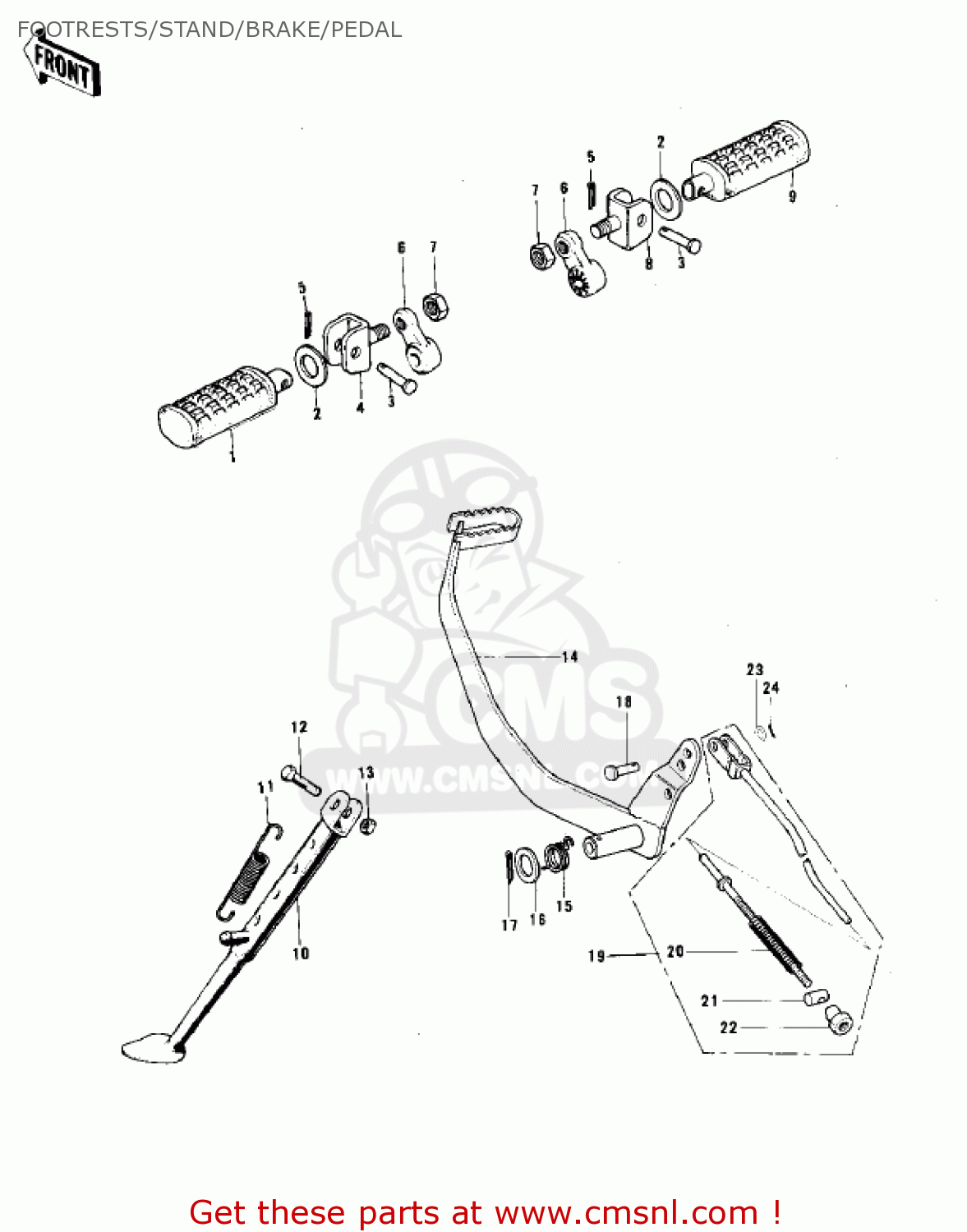

Footrests/stand/brake/pedal diagram F7 1971 USA
FOOTRESTS/STAND/BRAKE/PEDAL F7 1971 USA
×
prices are in EUR
ref
part #
description
quantity
1
340271114
ref: 1
STEP-ASSY,FR,LH
€ 24.00
2
92022204
ref: 2
WASHER-PLAIN
€ 0.50
3
92043080
ref: 3
PIN-FOOTREST BAR FIT
€ 3.50
4
3402100110
ref: 4
HOLDER-FOOT REST,LH
€ 14.50
5
550D2515
ref: 5
PIN COTTER,295X15
€ 0.50
6
34007009
ref: 6
BRACKET-FOOTREST BAR
€ 17.00
7
92019009
ref: 7
NUT,LOCK,12MM
€ 5.00
8
3402100310
ref: 8
FOOTREST BAR HOLDER,RH,BLACK
€ 17.00
9
340271115
ref: 9
STEP-ASSY,FR,RH
€ 24.00
10
34024028
ref: 10
STAND-SIDE
€ 27.50
11
34023005
ref: 11
SPRING-MAIN STAND
€ 6.50
12
113G1028
ref: 12
BOLT,HEX HEAD,10X28
€ 4.50
13
315B1000
ref: 13
NUT,10MM
€ 0.50
14
43001046
ref: 14
PEDAL-BRAKE
€ 37.00
15
43005033
ref: 15
SPRING,BRAKE PEDAL
€ 4.50
16
92022085
ref: 16
WASHER,15.3X24X1.2
€ 2.50
17
550D3030
ref: 17
PIN-COTTER,3.0X30
€ 1.50
18
92043064
ref: 18
PIN-BRAKE ROD FITTING
€ 4.50
19
43010013
ref: 19
BRAKE ROD ASSEMBLY
€ 43.50
20
43012001
ref: 20
SPRING,BRAKE ROD
€ 3.00
21
92043039
ref: 21
PIN,BRAKE ROD
€ 4.50
22
92015042
ref: 22
NUT-BRAKE ROD ADJUST
€ 4.00
23
410B0600
ref: 23
WASHER-PLAIN-SMALL,6M
€ 0.50
24
550D2015
ref: 24
PIN-COTTER,2.0X15
€ 1.00
