FOOTRESTS/STAND/BRAKE PEDAL
F7 1971 USA

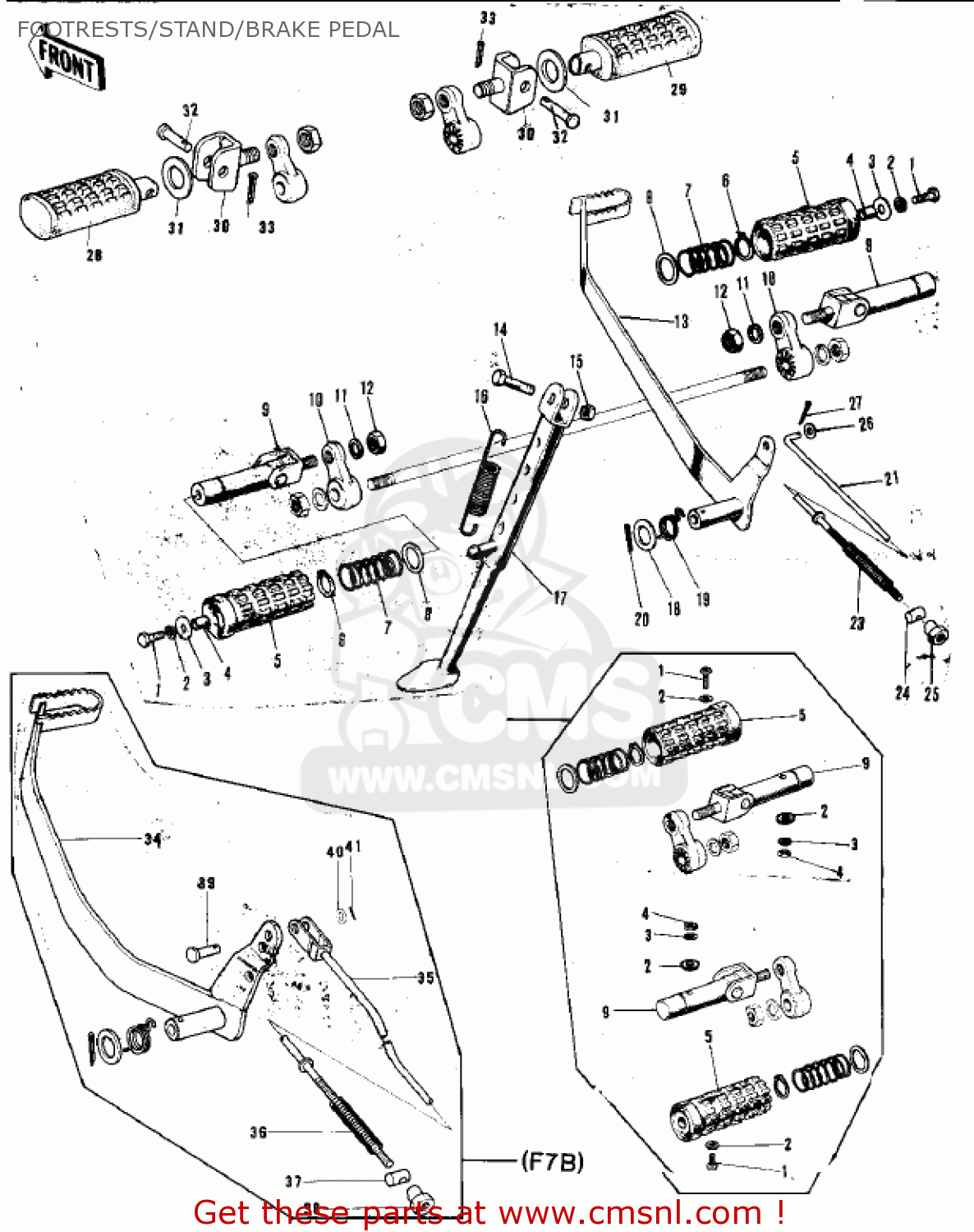

Footrests/stand/brake pedal diagram F7 1971 USA
FOOTRESTS/STAND/BRAKE PEDAL F7 1971 USA
×
prices are in EUR
ref
part #
description
quantity
1
112G0618
ref: 1
BOLT-UPSET
€ 0.50
1
220B0540
ref: 1
F7A
SCREW-PAN-CROS
€ 2.00
2
461F0600
ref: 2
WASHER-SPRING,6MM
€ 0.50
2
410F0500
ref: 2
F7A
WASHER-PLAIN-SMALL,5M
€ 0.50
3
92022125
ref: 3
WASHER,6.5X20X1.6
€ 1.00
3
461F0500
ref: 3
F7A
WASHER-SPRING,5MM
€ 0.50
4
92027103
ref: 4
COLLAR
€ 2.50
4
311B0500
ref: 4
F7A
NUT-HEX
€ 0.50
5
92076023
ref: 5
RUBBER-FOOTREST
€ 12.00
5
92076023
ref: 5
F7A
RUBBER-FOOTREST
€ 12.00
6
480J1600
ref: 6
CIRCLIP-TYPE-C,16MM
€ 2.50
7
34006002
ref: 7
SPRING-FOOTREST PEG
€ 3.00
8
92022049
ref: 8
WASHER-FOLDING PEG
€ 2.00
?
34002051
ref: ?
Includes items 9 and
FOOTREST BAR ASSEMBLY
€ 117.00
9
34003030
ref: 9
D=10
FOOTREST BAR HOLDER,LH
€ 81.50
9
34003032
ref: 9
F7A
BAR-FOOTREST
€ 28.00
9
34002051
ref: 9
D=12
FOOTREST BAR ASSEMBLY
€ 117.00
10
34007009
ref: 10
D=12
BRACKET-FOOTREST BAR
€ 17.00
11
461F1000
ref: 11
NOT REQUIRED FOR 920
WASHER-SPRING,10MM
€ 0.50
12
315B1000
ref: 12
NUT,10MM
€ 0.50
12
92019009
ref: 12
NUT,LOCK,12MM
€ 5.00
13
43001035
ref: 13
PEDAL-BRAKE
€ 23.00
13
43001046
ref: 13
F7B
PEDAL-BRAKE
€ 37.00
14
113G1028
ref: 14
BOLT,HEX HEAD,10X28
€ 4.50
15
315B1000
ref: 15
NUT,10MM
€ 0.50
16
34023005
ref: 16
SPRING-MAIN STAND
€ 6.50
17
34024028
ref: 17
STAND-SIDE
€ 27.50
18
92022085
ref: 18
WASHER,15.3X24X1.2
€ 2.50
19
43005033
ref: 19
SPRING,BRAKE PEDAL
€ 4.50
20
550D3030
ref: 20
PIN-COTTER,3.0X30
€ 1.50
16
430105003
ref: 16
Includes items 21 -
BRAKE ROD ASSY
€ 15.00
16
43010013
ref: 16
Includes items 21 -
BRAKE ROD ASSEMBLY
€ 43.50
23
43012001
ref: 23
SPRING,BRAKE ROD
€ 3.00
24
92043039
ref: 24
PIN,BRAKE ROD
€ 4.50
25
92015042
ref: 25
NUT-BRAKE ROD ADJUST
€ 4.00
26
410B0600
ref: 26
WASHER-PLAIN-SMALL,6M
€ 0.50
27
550D2015
ref: 27
PIN-COTTER,2.0X15
€ 1.00
28
340271114
ref: 28
STEP-ASSY,FR,LH
€ 24.00
29
340271115
ref: 29
STEP-ASSY,FR,RH
€ 24.00
30
3402100110
ref: 30
HOLDER-FOOT REST,LH
€ 14.50
31
92022204
ref: 31
WASHER-PLAIN
€ 0.50
32
92043080
ref: 32
PIN-FOOTREST BAR FIT
€ 3.50
33
550D2515
ref: 33
PIN COTTER,295X15
€ 0.50
34
43001046
ref: 34
F7B
PEDAL-BRAKE
€ 37.00
?
43010013
ref: ?
Includes items 35 -
BRAKE ROD ASSEMBLY
€ 43.50
36
43012001
ref: 36
F7B
SPRING,BRAKE ROD
€ 3.00
37
92043039
ref: 37
F7B
PIN,BRAKE ROD
€ 4.50
38
92015042
ref: 38
F7B
NUT-BRAKE ROD ADJUST
€ 4.00
39
92043064
ref: 39
F7B
PIN-BRAKE ROD FITTING
€ 4.50
40
410B0600
ref: 40
F7B
WASHER-PLAIN-SMALL,6M
€ 0.50
41
550D2015
ref: 41
F7B
PIN-COTTER,2.0X15
€ 1.00
