SWINGARM

ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

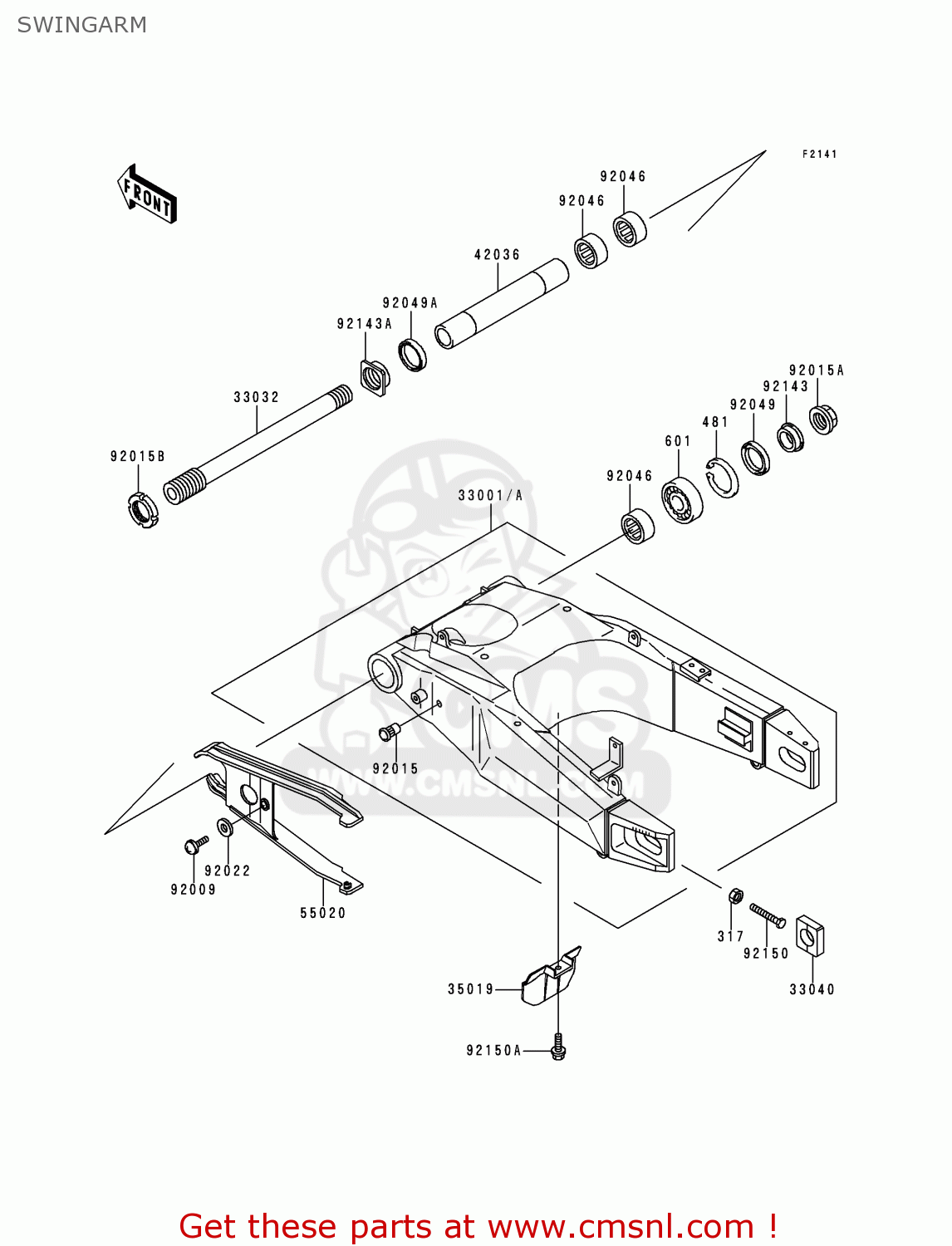

Swingarm diagram ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

SWINGARM ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

SWINGARM ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

317

317G0800
ref: 317

NUT-HEX-SMALL,8MM

€ 0.50

481

481J4700
ref: 481

CIRCLIP,47MM

€ 4.00

601

601B6005U
ref: 601

BEARING-BALL,#6005U

€ 25.00

33001A

330011494KF
ref: 33001A

ARM-COMP-SWING,R.PINK

€ 1,317.00

33032

330321173
ref: 33032

SHAFT-SWING ARM

€ 104.00

33040

330401114
ref: 33040

ADJUSTER-CHAIN

€ 13.50

35019

350191333
ref: 35019

FLAP

€ 7.50

42036

420361312
ref: 42036

SLEEVE,SWING ARM,L=22

€ 72.00

55020

550201535
ref: 55020

GUARD,CHAIN

€ 44.50

92009

920091663
ref: 92009

SCREW

€ 2.50

92015

920151792
ref: 92015

NUT,POP,6MM,L=16.5

€ 3.00

92015A

920151845
ref: 92015A

NUT,FLANGED,25MM

€ 17.00

92015B

920151930
ref: 92015B

NUT,FRAME PIVOT,32MM

€ 23.00

92022

920221143
ref: 92022

WASHER,6.5X16X1

€ 2.50

92046

920461205
ref: 92046

BEARING-NEEDLE,BM3520

€ 29.00

92049

920491381
ref: 92049

SEAL-OIL,MHA 35 47 5

€ 8.50

92049A

920491419
ref: 92049A

SEAL-OIL,KC 38 45 6

€ 10.50

92143

921431481
ref: 92143

COLLAR,SWING ARM,L=12

€ 20.50

92143A

921431681
ref: 92143A

COLLAR,SWING ARM,L=15

€ 20.00

92150

921501350
ref: 92150

BOLT

€ 1.50

92150A

921501689
ref: 92150A

BOLT,FLANGED,6X14

€ 2.00
