OIL PUMP/OIL FILTER

ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

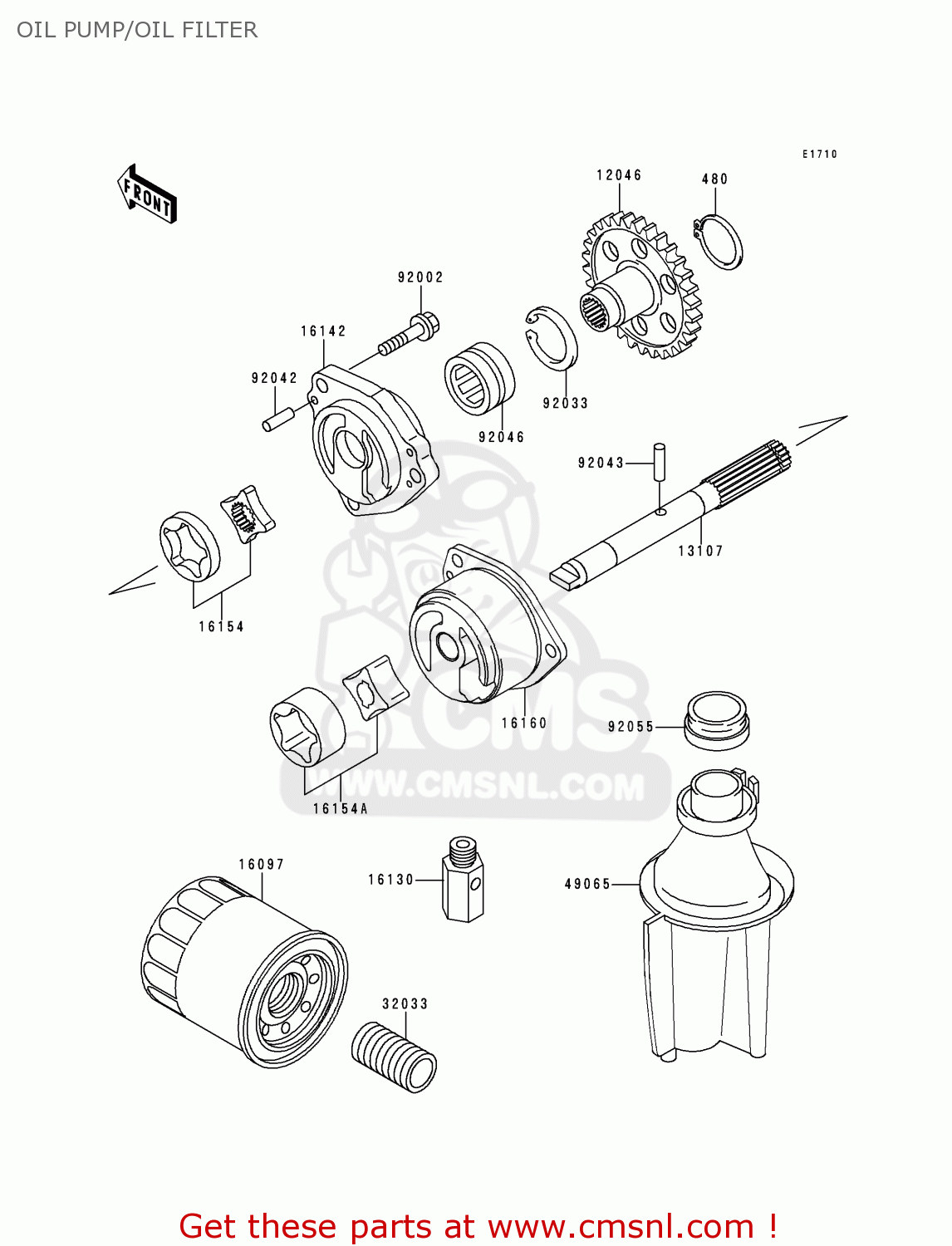

Oil pump/oil filter diagram ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

OIL PUMP/OIL FILTER ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

OIL PUMP/OIL FILTER ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

480

480J1500
ref: 480

CIRCLIP-TYPE-C,15MM

€ 1.00

12046

120461123
ref: 12046

SPROCKET,OIL PUMP,30T

€ 119.00

13107

131071339
ref: 13107

SHAFT,PUMP

€ 56.00

16097

160971063
ref: 16097

FILTER-ASSY-OIL

€ 10.50

16130

161301058
ref: 16130

VALVE-ASSY-RELIEF

€ 30.00

16142

161421110
ref: 16142

COVER-PUMP

€ 29.00

16154

161541090
ref: 16154

ROTOR-PUMP

€ 47.50

16154A

161541107
ref: 16154A

ROTOR-PUMP

€ 58.00

16160

161601229
ref: 16160

BODY,OIL PUMP

€ 101.00

32033

320331535
ref: 32033

PIPE

€ 9.00

49065

490651074
ref: 49065

FILTER-OIL

€ 23.50

92002

920021582
ref: 92002

BOLT,6X25

€ 3.00

92033

920331277
ref: 92033

RING-SNAP

€ 3.00

92042

92042014
ref: 92042

PIN-GEAR CHANGE DRUM

€ 0.50

92043

920431444
ref: 92043

PIN,17.9X5.0

€ 2.50

92046

920461109
ref: 92046

BEARING-NEEDLE,RNA490

€ 48.50

92055

920551503
ref: 92055

RING-O,OIL FILTER

€ 6.50
