GEAR CHANGE MECHANISM

ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

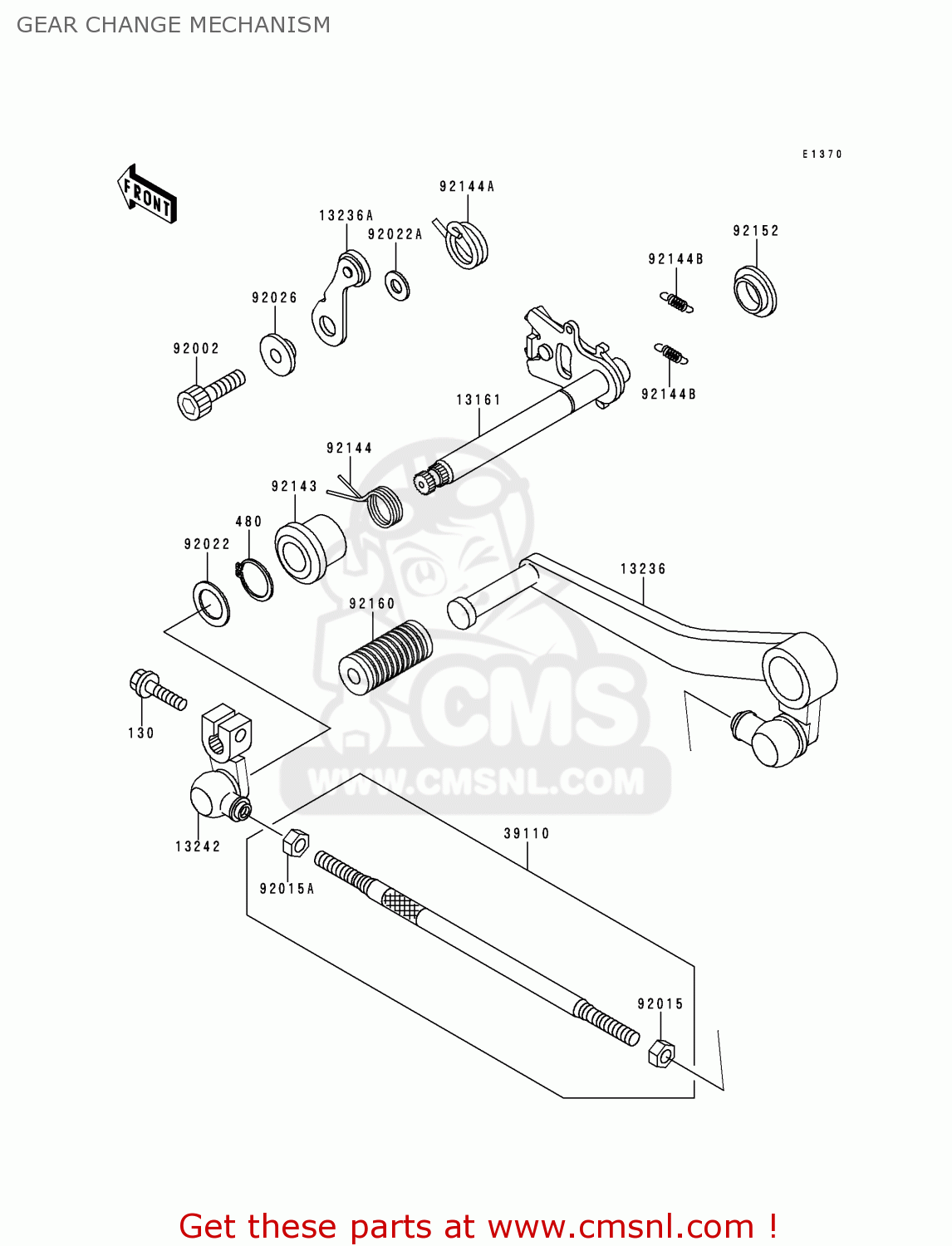

Gear change mechanism diagram ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611223
ref: 13161

LEVER-COMP-CHANGE SHA

€ 68.50

13236

132361204
ref: 13236

LEVER-COMP,CHANGE PED

€ 47.00

13236A

132361253
ref: 13236A

LEVER-COMP,POSITION

€ 7.50

13242

132421278
ref: 13242

LEVER-ASSY-CHANGE,LIN

€ 26.00

39110

391101100
ref: 39110

ROD-ASSY-TIE

€ 12.50

92002

920021778
ref: 92002

BOLT,SOCKET,6X16

€ 3.00

92015

920151443
ref: 92015

NUT

€ 2.50

92015A

920151444
ref: 92015A

NUT

€ 3.00

92022

920221496
ref: 92022

WASHER,13.3X20X1

€ 2.50

92022A

920221827
ref: 92022A

WASHER,6X12.8X1.2

€ 3.00

92026

920261217
ref: 92026

SPACER

€ 3.50

92143

921431498
ref: 92143

COLLAR,RETURN SPRING

€ 7.00

92144

921441628
ref: 92144

SPRING,CHANGE SHAFT R

€ 6.50

92144A

921441873
ref: 92144A

SPRING,LEVER POSITION

€ 5.00

92144B

921441975
ref: 92144B

SPRING,CHANGE LEVER

€ 3.00

92152

921521075
ref: 92152

COLLAR

€ 2.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
