CRANKCASE BOLT PATTERN

ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

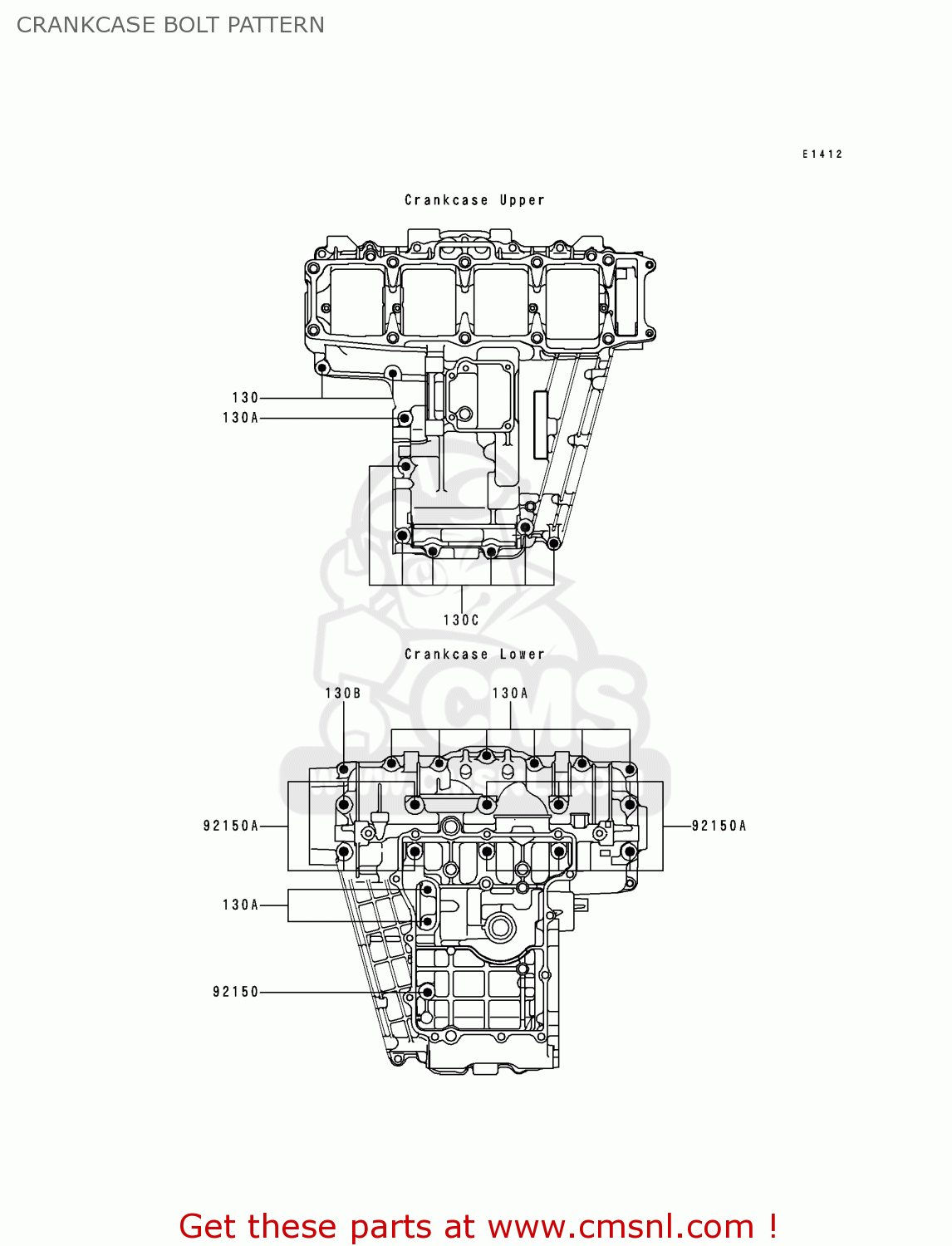

Crankcase bolt pattern diagram ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130Z0835
ref: 130

BOLT-FLANGED

€ 2.00

130A

130Z0840
ref: 130A

BOLT-FLANGED

€ 2.00

130B

130Z0845
ref: 130B

BOLT-FLANGED

€ 2.00

130C

130Z0870
ref: 130C

BOLT-FLANGED

€ 6.00

92150

921501550
ref: 92150

BOLT,8X115

€ 4.50

92150A

921501759
ref: 92150A

BOLT,9X95

€ 5.50
