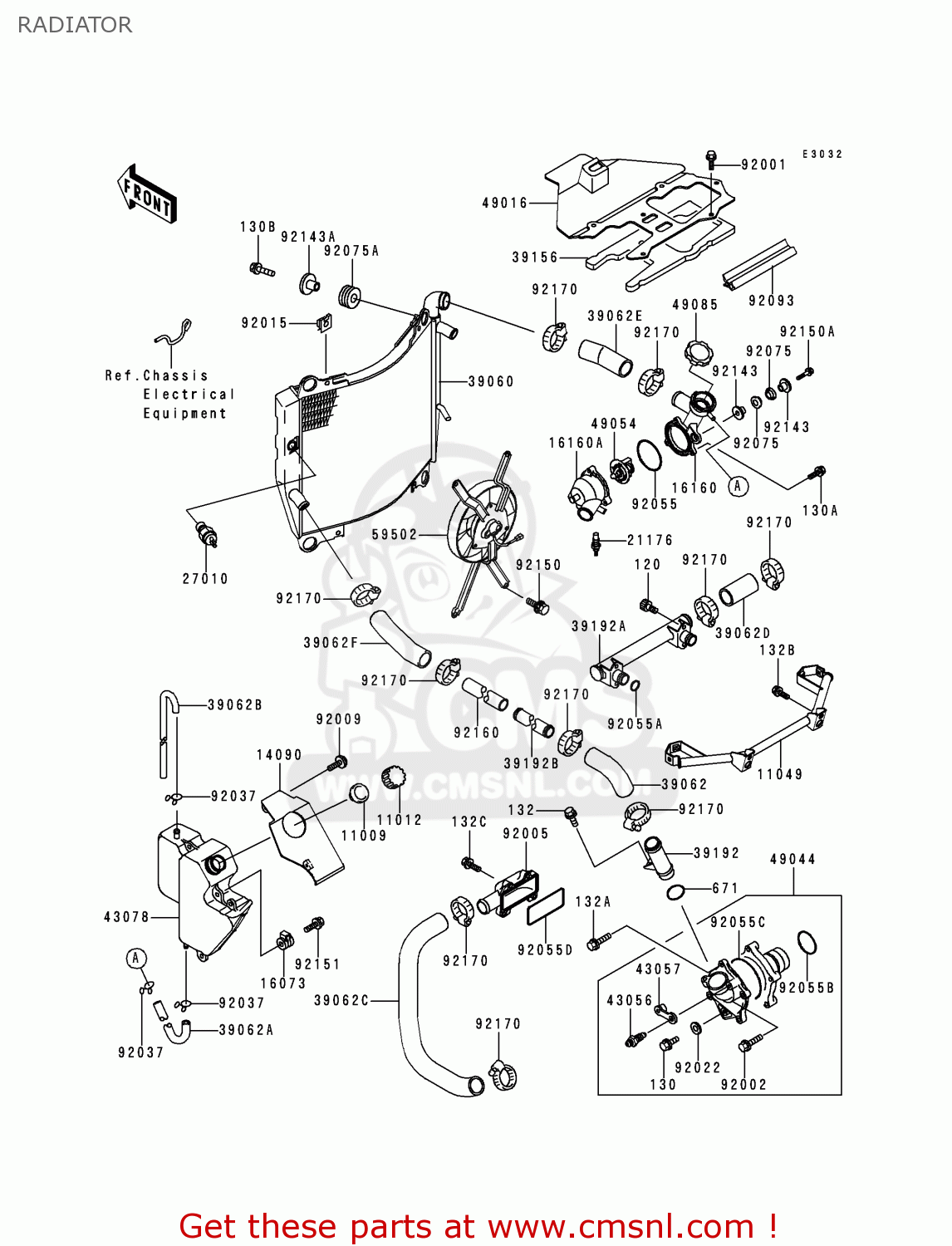

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

11049

110491349
ref: 11049

BRACKET,RADIATOR

€ 59.00

14090

140901634
ref: 14090

COVER,RESERVOIR

€ 28.50

16073

160731107
ref: 16073

INSULATOR

€ 3.00

16160

161601252
ref: 16160

BODY,THERMOSTAT CAP

€ 137.50

16160A

161601253
ref: 16160A

BODY,THERMOSTAT CASE

€ 54.00

21176

211761054
ref: 21176

SENSOR,WATER

€ 49.50

27010

270101202
ref: 27010

SWITCH,FAN

€ 74.00

39060

390601133
ref: 39060

RADIATOR

€ 653.50

39062

390621472
ref: 39062

HOSE-COOLING,WATER PU

€ 17.00

39062A

390621570
ref: 39062A

HOSE-COOLING,OVERFLOW

€ 7.50

39062B

390621610
ref: 39062B

HOSE-COOLING,DRAIN

€ 7.50

39062C

390621660
ref: 39062C

HOSE-COOLING,PUMP-CYL

€ 35.00

39062D

390621663
ref: 39062D

HOSE-COOLING,HEAD-THE

€ 12.00

39062E

390621664
ref: 39062E

HOSE-COOLING,CAP-RADI

€ 11.50

39062F

390621666
ref: 39062F

HOSE-COOLING,RADIATOR

€ 13.00

39156

391561516
ref: 39156

PAD,HEAD COVER

€ 12.50

39192

391921041
ref: 39192

PIPE-WATER

€ 23.50

39192A

391921042
ref: 39192A

PIPE-WATER

€ 80.00

39192B

391921047
ref: 39192B

PIPE-WATER

€ 21.50

43056

430561051
ref: 43056

BREATHER-BRAKE

€ 10.00

43057

430571001
ref: 43057

CAP-BREATHER

€ 3.00

43078

430781150
ref: 43078

RESERVOIR

€ 48.50

49016

490161185
ref: 49016

COVER-SEAL

€ 30.00

49044

490441069
ref: 49044

PUMP-WATER

€ 261.50

49054

490541067
ref: 49054

THERMOSTAT

€ 46.00

49085

490851067
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

59502

595021114
ref: 59502

FAN-ASSY,RADIATOR

€ 655.00

92001

920011863
ref: 92001

BOLT,6X16

€ 2.00

92002

920021392
ref: 92002

BOLT,6X22

€ 3.00

92005

920051316
ref: 92005

FITTING

€ 20.50

92009

920091436
ref: 92009

SCREW

€ 2.00

92015

920151487
ref: 92015

NUT

€ 3.00

92022

920221976
ref: 92022

WASHER,6.2X6.2X1.0

€ 4.00

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92055

92055112
ref: 92055

O RING, 53.5 M/M

€ 4.00

92055A

920551282
ref: 92055A

RING-O

€ 3.00

92055B

920551424
ref: 92055B

RING-O,33.2X2.4

€ 4.00

92055C

920551495
ref: 92055C

RING-O,WATER PUMP

€ 8.00

120

120P0612
ref: 120

BOLT,SOCKET,6X12

€ 1.00

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

130A

130J0520
ref: 130A

BOLT-FLANGED

€ 2.00

130B

130J0625
ref: 130B

BOLT-FLANGED,6X25

€ 2.00

132

132J0612
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132J0645
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

132B

132J0812
ref: 132B

BOLT-FLANGED-SMALL,8X

€ 1.50

132C

132Y0625
ref: 132C

BOLT-FLANGED-SMALL

€ 3.50

671

671B2525
ref: 671

O RING,25MM

€ 3.00

92055D

920551545
ref: 92055D

RING-O

€ 9.00

92075

920751138
ref: 92075

DAMPER,PILOT LAMP

€ 2.50

92075A

920751665
ref: 92075A

DAMPER

€ 5.00

92093

920931276
ref: 92093

SEAL

€ 8.00

92143

921431057
ref: 92143

COLLAR

€ 3.00

92143A

921431063
ref: 92143A

COLLAR

€ 6.00

92150

921501186
ref: 92150

BOLT

€ 3.00

92150A

921501829
ref: 92150A

BOLT,6X25

€ 2.50

92151

921511086
ref: 92151

BOLT,6X30

€ 2.50

92160

921601297
ref: 92160

DAMPER,WATER PIPE

€ 7.00

92170

921701284
ref: 92170

CLAMP,CABLE

€ 7.50

all assemblies
