IGNITION SYSTEM

ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

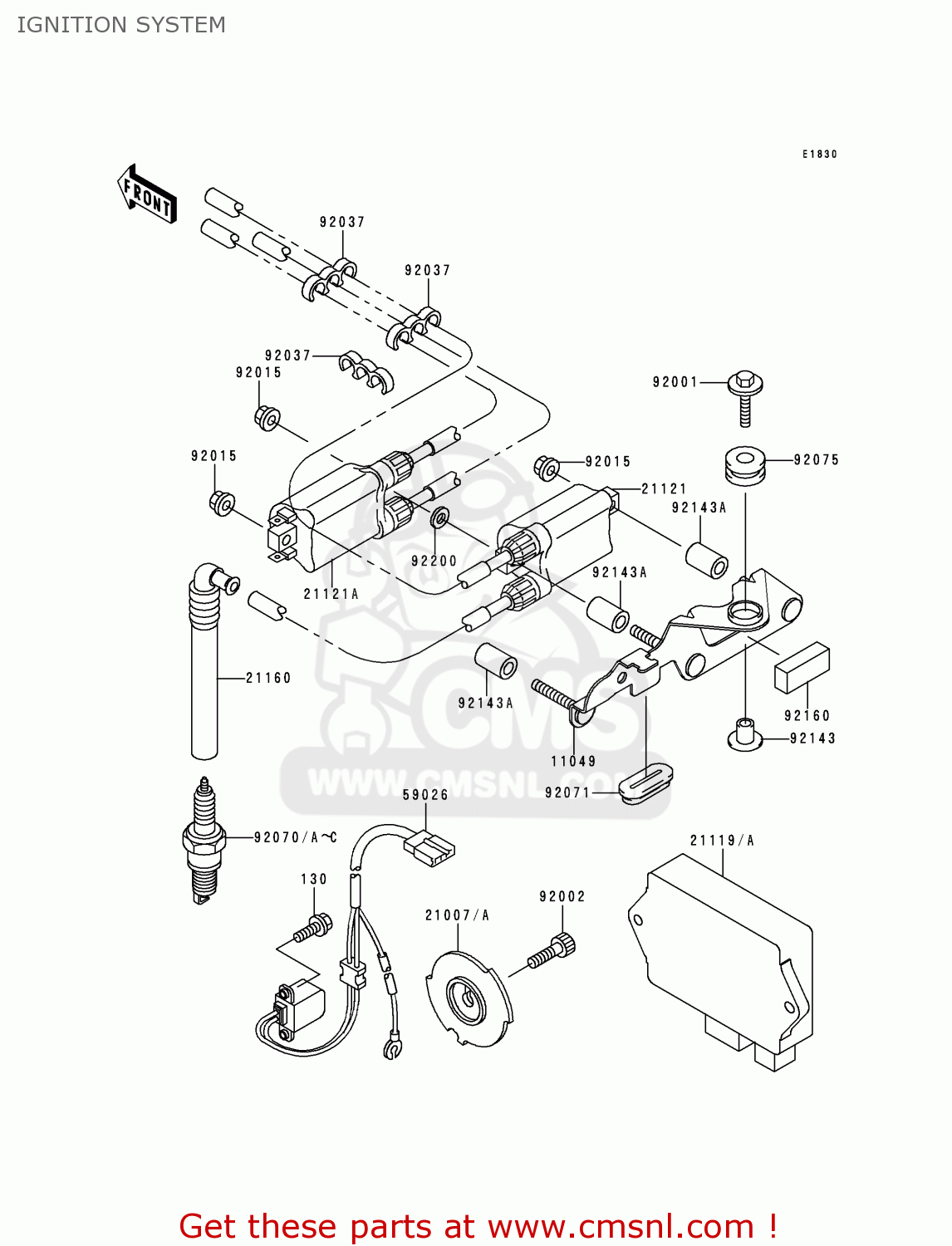

Ignition system diagram ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

IGNITION SYSTEM ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA
IGNITION SYSTEM ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA
IGNITION SYSTEM ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130G0512
ref: 130
BOLT-FLANGED
130G0512
€ 1.00
11049
110491705
ref: 11049
BRACKET,IGNITION
€ 23.50
21007
210071294
ref: 21007
CNUS
ROTOR,PULSING
210071294
€ 30.50
21007A
210071295
ref: 21007A
CA
ROTOR,PULSING
210071295
€ 35.50
21119
211191460
ref: 21119
CNUS
IGNITER
211191460
€ 638.50
21119A
211191462
ref: 21119A
CA
IGNITER
€ 670.50
21121
211211253
ref: 21121
COIL-IGNITION,#1&#4
211211253
€ 162.50
21121A
211211255
ref: 21121A
COIL-IGNITION,#2&#3
211211255
€ 162.50
21160
211601088
ref: 21160
CAP-ASSY-PLUG
211601088
€ 40.50
59026
590261104
ref: 59026
COIL-PULSING
590261104
€ 122.00
92001
920011776
ref: 92001
BOLT,6X30
920011776
€ 3.00
92002
920021178
ref: 92002
BOLT,SOCKET,8X20
920021178
€ 3.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92037
920371941
ref: 92037
CLAMP,TUBE
€ 3.50
92070
920701143
ref: 92070
CR9E (NGK SPARKPLUG)
€ 8.50
92070A

ref: 92070A
92070B
920701169
ref: 92070B
CR8E (NGK SPARKPLUG)
920701169
€ 8.50
92070C

ref: 92070C
92071
920711187
ref: 92071
GROMMET
920711187
€ 3.00
92075
920751857
ref: 92075
DAMPER,MUFFLER FITTIN
920751857
€ 3.50
92143
921431353
ref: 92143
COLLAR
921431353
€ 5.50
92143A
921431858
ref: 92143A
COLLAR,6.4X10X20
€ 2.50
92160
921601736
ref: 92160
DAMPER,BRACKET
921601736
€ 2.50
92200
922001271
ref: 92200
WASHER,6.5X13
€ 1.50
