STARTER MOTOR

ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

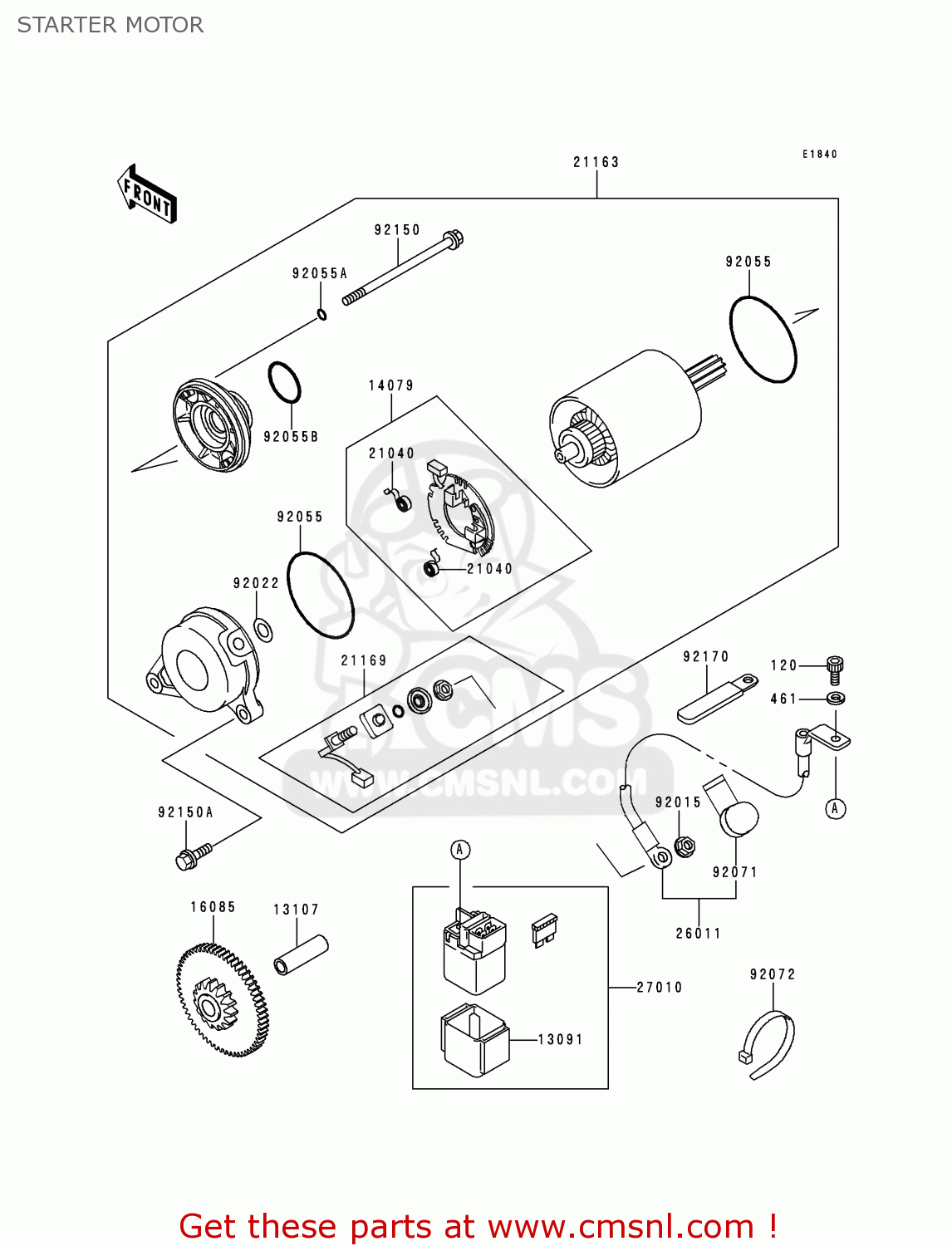

Starter motor diagram ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

STARTER MOTOR ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

STARTER MOTOR ZX750P1 NINJA ZX7R 1996 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120S0510
ref: 120

BOLT-SOCKET

€ 0.50

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50

13091

130911884
ref: 13091

HOLDER,MAGNETIC SWITC

€ 8.00

13107

131071112
ref: 13107

SHAFT

€ 17.50

14079

140792055
ref: 14079

HOLDER-ASSY,CARBON BR

€ 31.50

16085

160851104
ref: 16085

GEAR,IDLE

€ 90.50

21040

210401051
ref: 21040

SPRING-BRUSH

€ 1.50

21163

211631193
ref: 21163

STARTER-ELECTRIC

€ 597.50

21169

211691058
ref: 21169

TERMINAL,STARTER

€ 44.00

26011

260111667
ref: 26011

WIRE-LEAD,STARTER

€ 43.00

27010

270101327
ref: 27010

SWITCH,MAGNETIC

€ 116.00

92015

920151623
ref: 92015

NUT

€ 3.00

92022

920222200
ref: 92022

WASHER

€ 1.00

92055

920551260
ref: 92055

RING-O,62MM

€ 7.50

92055A

920551261
ref: 92055A

RING-O,4.5MM

€ 2.00

92055B

920551262
ref: 92055B

RING-O,24.4X3.1

€ 8.50

92071

920711120
ref: 92071

GROMMET,STARTER TERMI

€ 8.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92150

921501237
ref: 92150

BOLT

€ 7.00

92150A

921501779
ref: 92150A

BOLT,6X25

€ 2.50

92170

921701514
ref: 92170

CLAMP

€ 2.50
