MUFFLER

ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

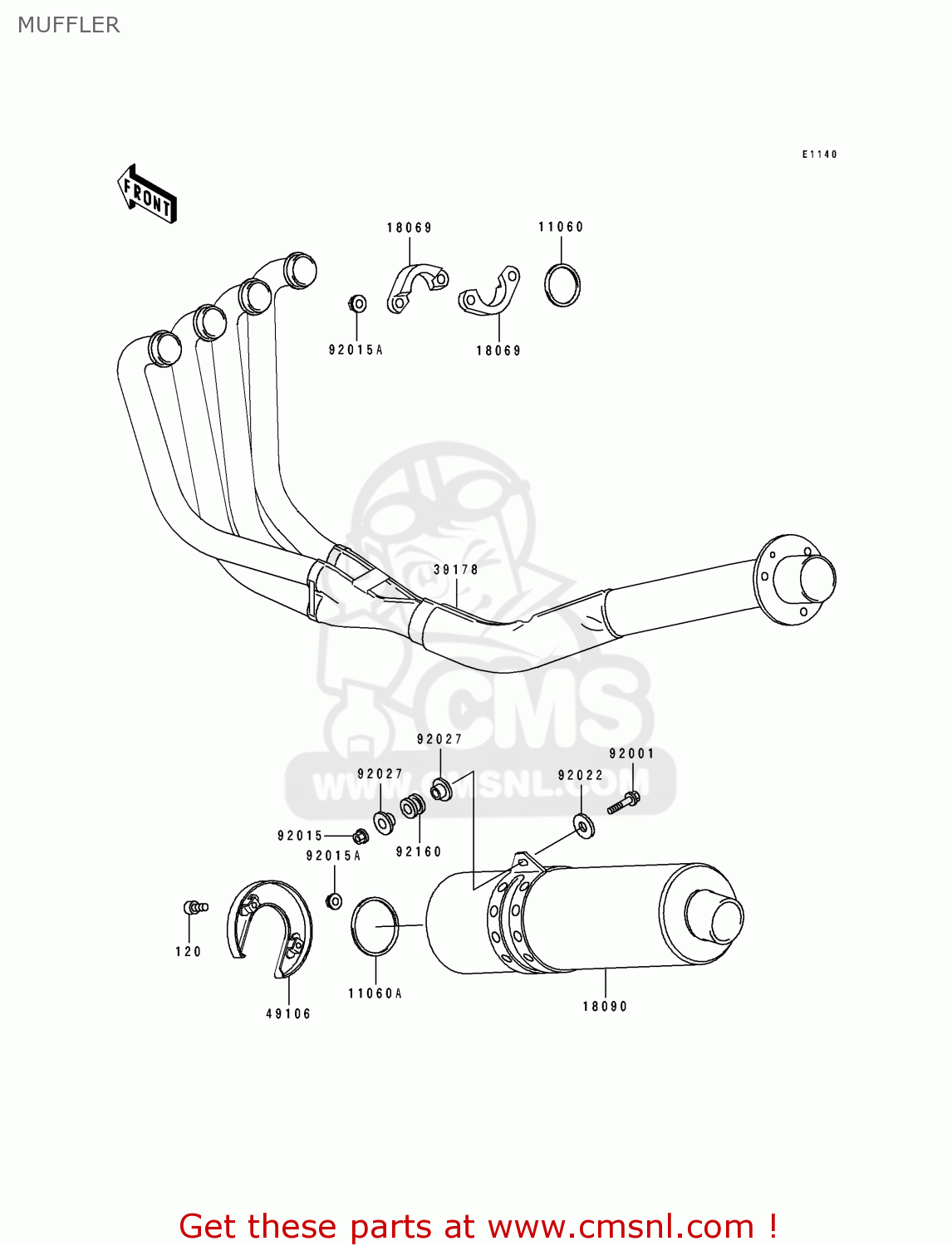

Muffler diagram ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

prices are in EUR

ref

part #

description

quantity

120

120P0610
ref: 120

BOLT-SOCKET,6X10

€ 1.00

11060

110601103
ref: 11060

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

11060A

110601213
ref: 11060A

GASKET,MUFFLER CONNEC (NAS)

€ 14.00

18069

180691072
ref: 18069

HOLDER-EXHAUST PIPE

€ 16.00

18090

180901132
ref: 18090

BODY-COMP-MUFFLER

€ 451.00

39178

391781181
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 912.50

49106

491061126
ref: 49106

COVER-MUFFLER

€ 25.50

92001

920011910
ref: 92001

BOLT,FLANGED,8X35

€ 4.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151380
ref: 92015A

NUT,LOCK,8MM

€ 3.00

92022

920223730
ref: 92022

WASHER,8.5X19X1.2

€ 2.50

92027

920271653
ref: 92027

COLLAR,FLNG,8.8X10.6

€ 7.00

92160

921601116
ref: 92160

DAMPER

€ 3.50

MUFFLER

all assemblies
