FUEL TANK

ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

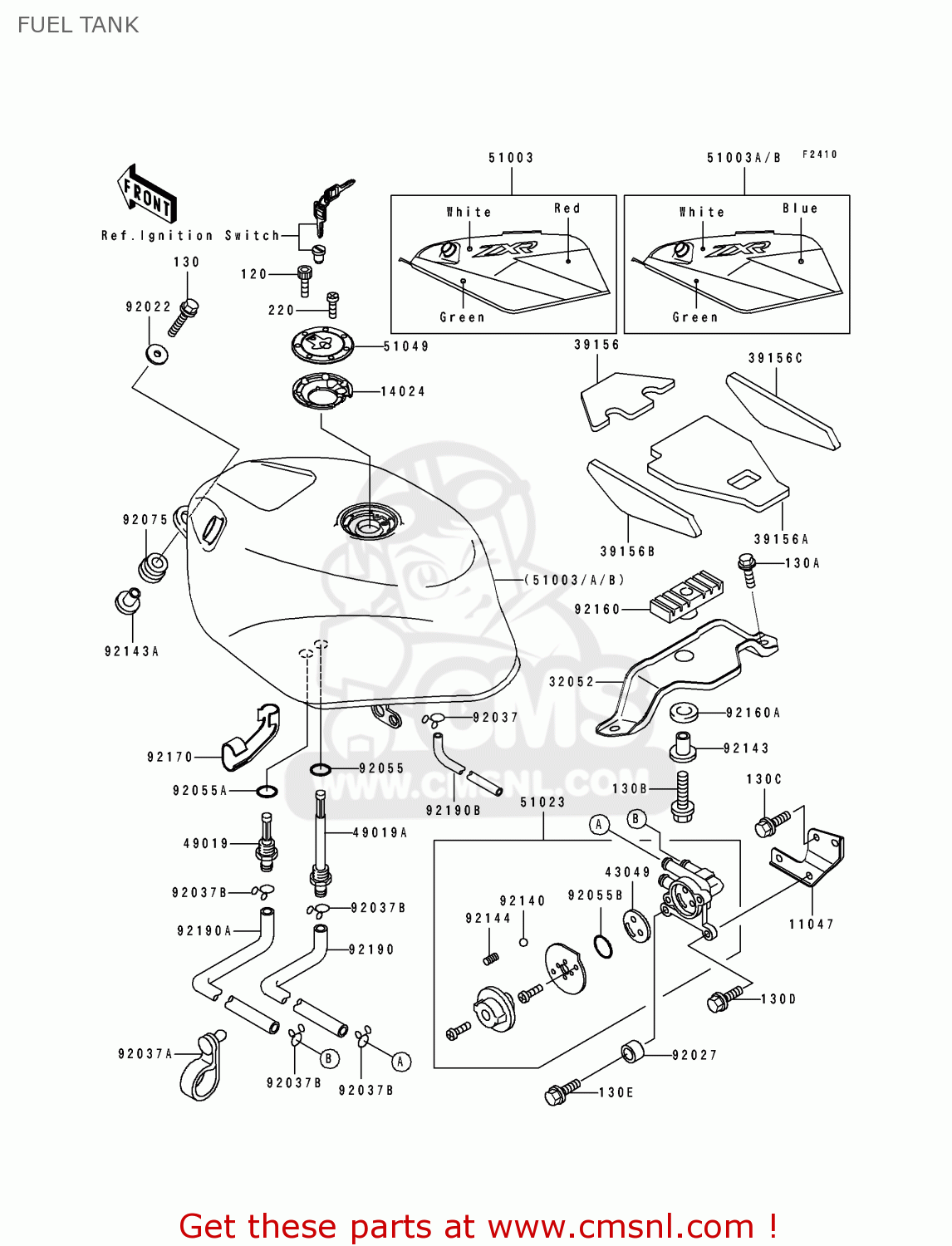

Fuel tank diagram ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

FUEL TANK ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
FUEL TANK ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
FUEL TANK ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
11047
110471268
ref: 11047
BRACKET,FUEL TAP
110471268
€ 7.50
14024
140251913
ref: 14024
COVER,TANK CAP
140251913
€ 13.50
32052
320521323
ref: 32052
BRACKET-TANK,RR
€ 24.50
39156
391561248
ref: 39156
PAD,FUEL TANK,FR
€ 9.50
39156A
391561249
ref: 39156A
PAD,FUEL TANK,CNT
€ 17.00
39156B
391561250
ref: 39156B
PAD,FUEL TANK,SIDE,LH
391561250
€ 10.00
39156C
391561251
ref: 39156C
PAD,FUEL TANK,SIDE,RH
€ 9.00
43049
430491066
ref: 43049
PACKING,TAP VALVE (NAS)
430491066
€ 5.00
49019
490191070
ref: 49019
FILTER-FUEL
490191070
€ 15.00
49019A
490191071
ref: 49019A
FILTER-FUEL,ON
490191071
€ 15.50
51003
510035253EV
ref: 51003
FRIT
TANK-COMP-FUEL,GREEN/
€ 1,606.50
51003A
510035253KE
ref: 51003A
AREUNRSPUK
TANK-COMP-FUEL,GREEN/
€ 1,277.00
51003B
510035257KE
ref: 51003B
FG
TANK-COMP-FUEL,GREEN/WHITE/BLU
€ 1,277.00
51023
510231172
ref: 51023
TAP-ASSY,FUEL
510231172
€ 71.00
51049
510491091
ref: 51049
CAP-TANK,FUEL
510491091
€ 88.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92027
92027103
ref: 92027
COLLAR
92027103
€ 2.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371903
ref: 92037A
CLAMP
920371903
€ 5.00
92037B
920371972
ref: 92037B
CLAMP,TUBE
920371972
€ 2.50
92055
920551386
ref: 92055
RING-O,ID=9.5
920551386
€ 2.50
92055A
920551387
ref: 92055A
RING-O,ID=11.5
920551387
€ 2.50
92055B
920551419
ref: 92055B
RING-O,TAP LEVER
920551419
€ 3.00
92075
92075112
ref: 92075
DAMPER RUBBER
92075112
€ 2.50
92140
921401051
ref: 92140
BALL,STAINLESS,5/32
921401051
€ 3.00
92143
921431484
ref: 92143
COLLAR
921431484
€ 4.50
92143A
921431515
ref: 92143A
COLLAR
921431515
€ 13.50
92144
921441212
ref: 92144
SPRING,FUEL TAP KNOB
921441212
€ 2.50
92160
921601271
ref: 92160
DAMPER,FUEL TANK,RR
921601271
€ 7.00
92160A
921601277
ref: 92160A
DAMPER,FUEL TANK,RR
921601277
€ 2.00
92170
921701282
ref: 92170
CLAMP,TUBE
€ 7.50
92190
921901192
ref: 92190
TUBE,FUEL,ON
921901192
€ 19.00
92190A
921901193
ref: 92190A
TUBE,FUEL,RES
921901193
€ 18.50
92190B
921901260
ref: 92190B
TUBE
€ 15.50
130
130G0630
ref: 130
BOLT, FLANGED, 6X30
130G0630
€ 0.50
130A
130H0820
ref: 130A
BOLT-FLANGED,8X20
130H0820
€ 0.50
130B
130H0830
ref: 130B
BOLT-FLANGED,8X30
130H0830
€ 1.00
130C
130J0608
ref: 130C
BOLT-FLANGED,6X8
€ 2.50
130D
130J0616
ref: 130D
BOLT-FLANGED,6X16
130J0616
€ 1.50
130E
130J0625
ref: 130E
BOLT-FLANGED,6X25
130J0625
€ 2.00
220
220C0508
ref: 220
SCREW-PAN-CROS
220C0508
€ 1.00
