FOOTRESTS

ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

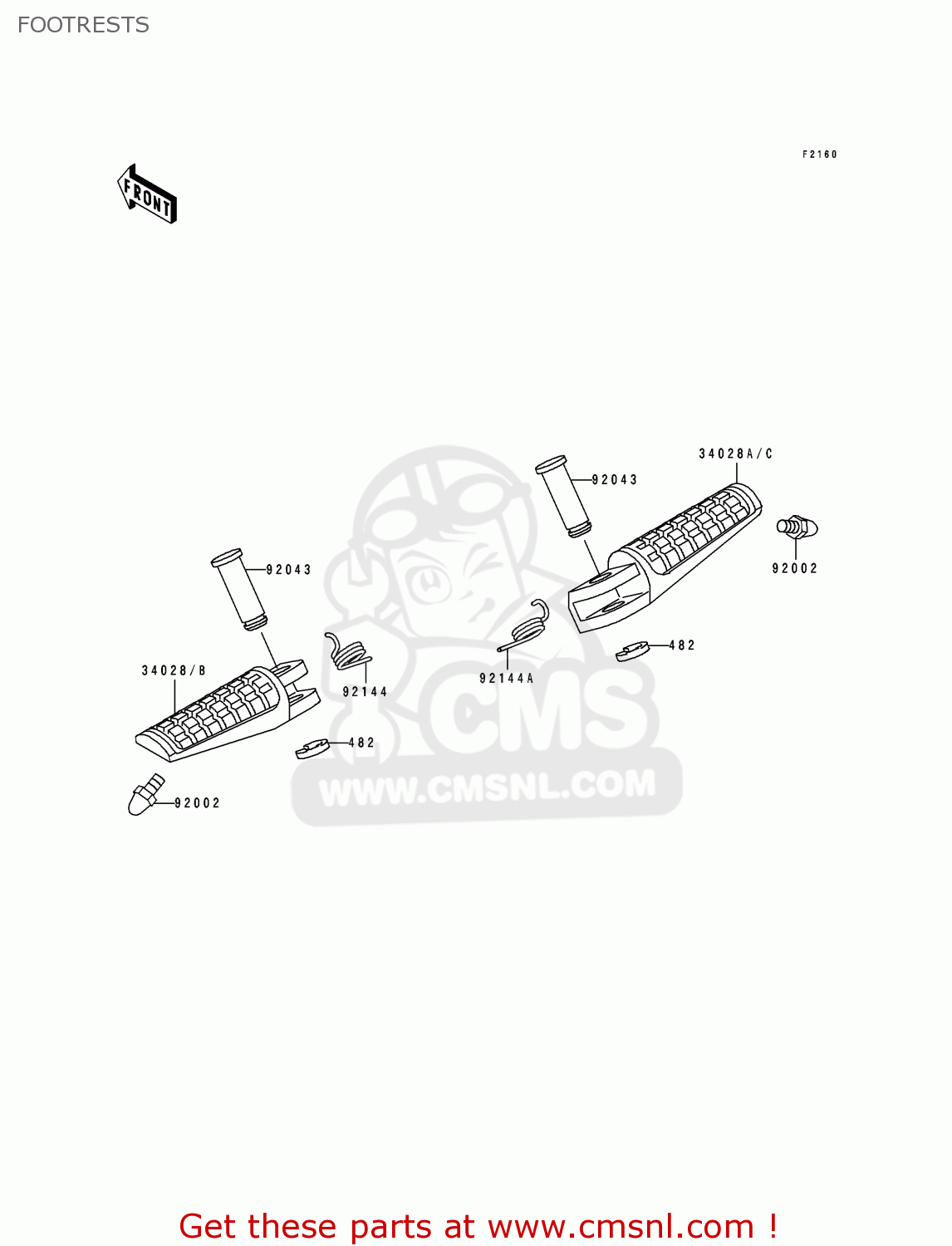

Footrests diagram ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

prices are in EUR

ref

part #

description

quantity

482

482L0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

34028

340281328
ref: 34028

STEP,FR,LH

€ 46.50

34028A

340281329
ref: 34028A

STEP,FR,RH

€ 73.00

34028B

340281338
ref: 34028B

STEP,FR,LH

€ 46.50

34028C

340281339
ref: 34028C

STEP,FR,RH

€ 73.00

92002

920021742
ref: 92002

BOLT,BANK SENSOR

€ 6.00

92043

920431144
ref: 92043

PIN,12X37

€ 6.50

92144

921441567
ref: 92144

SPRING,STEP RETURN,LH

€ 4.00

92144A

921441568
ref: 92144A

SPRING,STEP RETURN,RH

€ 4.00
