BRAKE PEDAL

ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

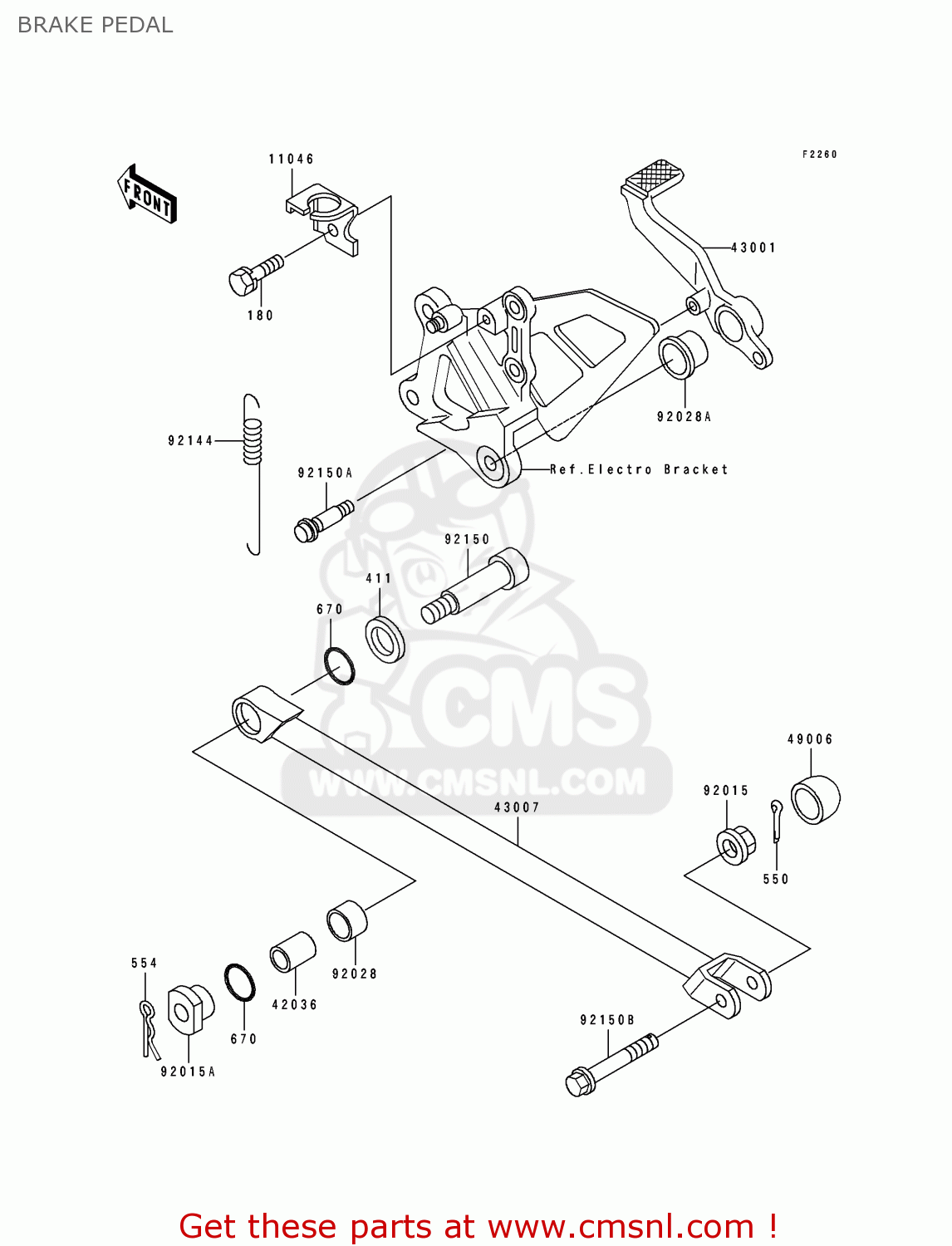

Brake pedal diagram ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

prices are in EUR

ref

part #

description

quantity

180

180H0614
ref: 180

BOLT-UPSET-WS

€ 1.00

411

411D1000
ref: 411

WASHER-PLAIN,10MM

€ 3.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00

670

670B2016
ref: 670

O RING,16MM

€ 1.00

11046

110461252
ref: 11046

BRACKET,REAR BRAKE SW

€ 5.50

42036

420361242
ref: 42036

SLEEVE,10.1X16X20

€ 9.50

43001

430011274
ref: 43001

LEVER-BRAKE,PEDAL

€ 90.50

43007

430071158KF
ref: 43007

ROD-TORQUE,SILVER NO.

€ 87.50

49006

490061218
ref: 49006

BOOT

€ 3.50

92015

920151432
ref: 92015

NUT,8MM

€ 4.50

92015A

920151747
ref: 92015A

NUT,8MM

€ 12.00

92028

920281468
ref: 92028

BUSHING

€ 6.00

92028A

920281576
ref: 92028A

BUSHING

€ 12.50

92144

921441421
ref: 92144

SPRING,BRAKE PEDAL RE

€ 6.50

92150

921501167
ref: 92150

BOLT,SOCKET,8X61

€ 12.00

92150A

921501439
ref: 92150A

BOLT

€ 8.00

92150B

921501539
ref: 92150B

BOLT,FLANGED,8X47

€ 6.50
