HEADLIGHT(S)

ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

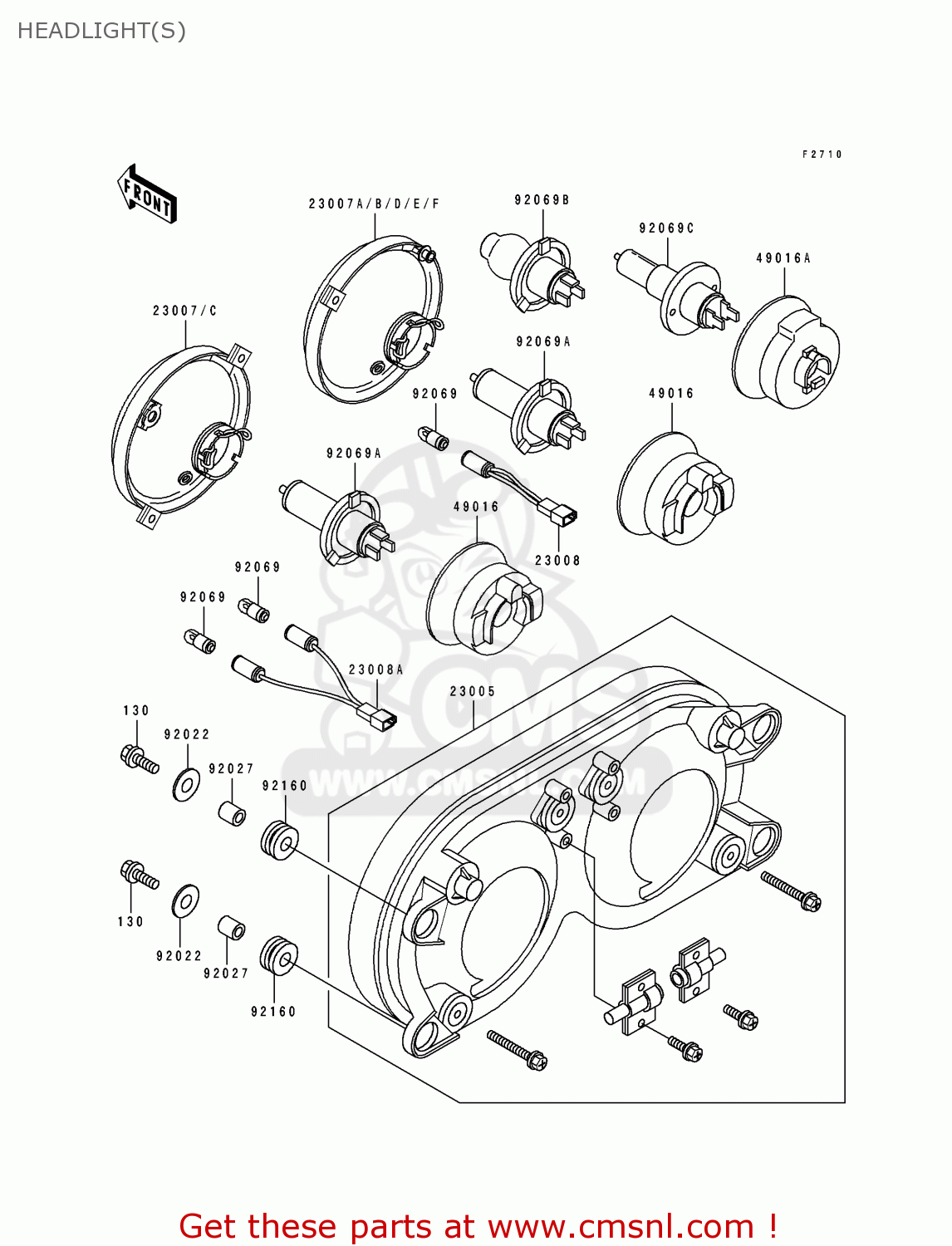

Headlight(s) diagram ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

HEADLIGHT(S) ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
HEADLIGHT(S) ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
HEADLIGHT(S) ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
prices are in EUR
ref
part #
description
quantity
130
130C0625
ref: 130
BOLT-FLANGED,FLANGED,
130C0625
€ 2.00
23005
230051120
ref: 23005
BODY-COMP-HEAD LAMP
230051120
€ 73.00
23007
230071205
ref: 23007
AREUFGFRITNRSP
LENS-COMP,HEAD LAMP,L
230071205
€ 121.50
23007A
230071206
ref: 23007A
EU
LENS-COMP,HEAD LAMP,R
€ 112.50
23007B
230071207
ref: 23007B
ARFGITNR
LENS-COMP,HEAD LAMP,R
230071207
€ 108.50
23007C
230071208
ref: 23007C
UK
LENS-COMP,HEAD LAMP,L
230071208
€ 121.50
23007D
230071209
ref: 23007D
UK
LENS-COMP,HEAD LAMP,R
230071209
€ 121.50
23007E
230071212
ref: 23007E
FR
LENS-COMP,HEAD LAMP,R
230071212
€ 110.50
23007F
230071222
ref: 23007F
SP
LENS-COMP,HEAD LAMP,R
€ 108.50
23008
230081396
ref: 23008
AREUFGFRITNR
SOCKET-ASSY,HEAD LAMP
230081396
€ 22.00
23008A
230081400
ref: 23008A
SPUK
SOCKET-ASSY,HEAD LAMP
230081400
€ 22.00
49016
490161143
ref: 49016
AREUFGFRITNR
COVER-SEAL,HEAD LAMP
490161143
€ 10.00
49016
490161143
ref: 49016
SPUK
COVER-SEAL,HEAD LAMP
490161143
€ 10.00
49016A
490161144
ref: 49016A
AREUFGFRITNR
COVER-SEAL,HEAD LAMP
490161144
€ 14.00
92022
920221346
ref: 92022
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92069
92069071
ref: 92069
AREUFGFRITNR
BULB,12V 4W
92069071
€ 4.50
92069
92069071
ref: 92069
SPUK
BULB,12V 4W
92069071
€ 4.50
92069A
920691002
ref: 92069A
AREUFGITNR
BULB,12V-60155W
920691002
€ 15.00
92069A
920691002
ref: 92069A
SPUK
BULB,12V-60155W
920691002
€ 15.00
92069B
920691004
ref: 92069B
FR
BULB,12V 60/55W,H4,YE
920691004
€ 15.00
92069C
920691076
ref: 92069C
AREUFGFRITNR
BULB,12V 55W,H1
920691076
€ 21.00
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
