AIR FILTER

ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

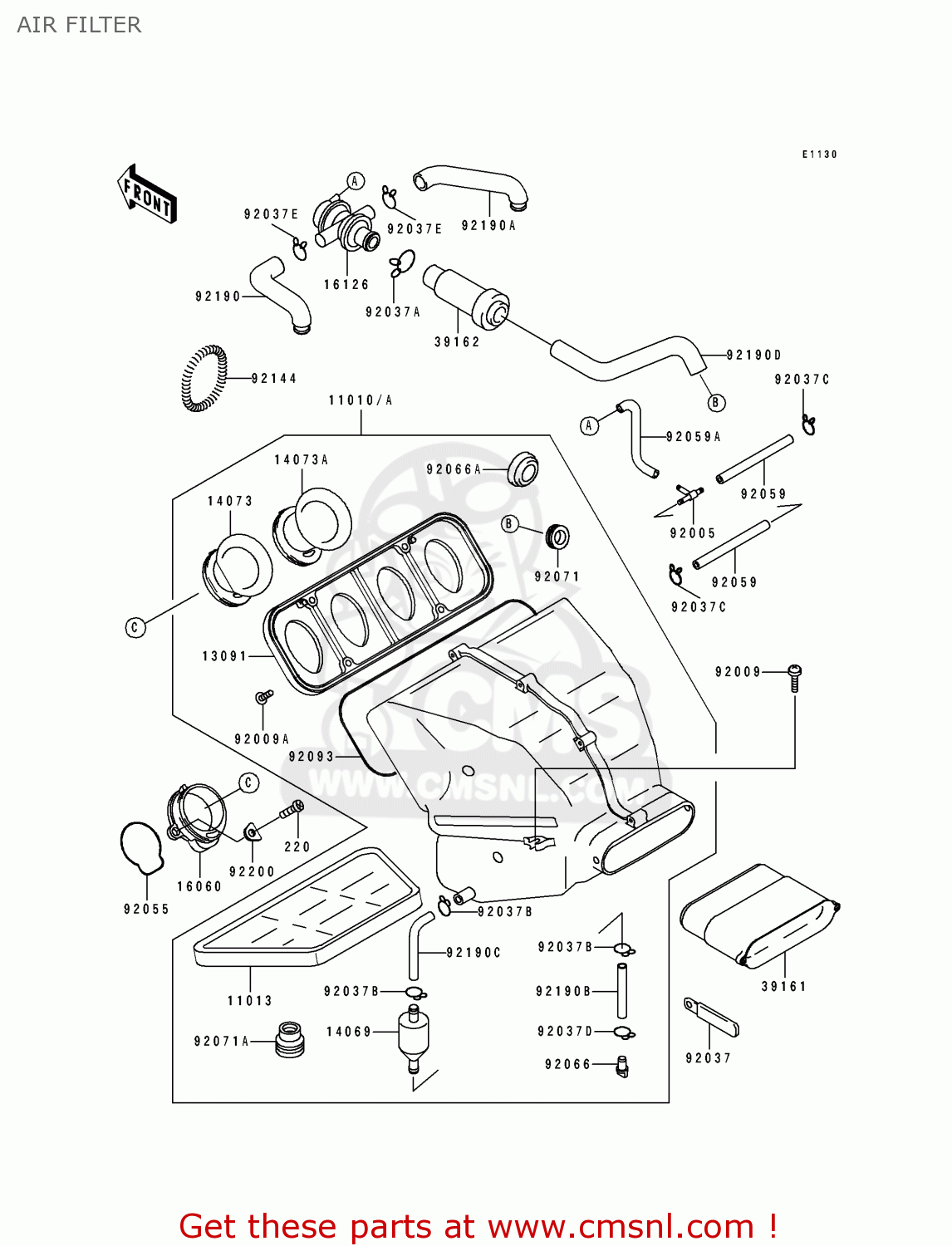

Air filter diagram ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

AIR FILTER ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
AIR FILTER ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
AIR FILTER ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
prices are in EUR
ref
part #
description
quantity
11010
110101449
ref: 11010
AR
FILTER-ASSY-AIR
€ 322.00
11010A
110101451
ref: 11010A
EUFGFRITNRSPUK
FILTER-ASSY-AIR
€ 322.00
11013
110131210
ref: 11013
ELEMENT-AIR FILTER
110131210
€ 32.50
13091
130911735
ref: 13091
HOLDER,AIR FILTER
€ 44.50
14069
140691051
ref: 14069
BREATHER
140691051
€ 6.50
14073
140731479
ref: 14073
DUCT,#1&#4
140731479
€ 14.00
14073A
140731480
ref: 14073A
DUCT,#2&#3
140731480
€ 20.50
16060
160601069
ref: 16060
PIPE-INTAKE
160601069
€ 17.00
16126
161261104
ref: 16126
AR
VALVE,AIR SWITCH
161261104
€ 176.00
39161
391611068
ref: 39161
SILENCER-ASSY-INTAKE
€ 65.00
39162
391621003
ref: 39162
AR
SILENCER-INTAKE
391621003
€ 59.00
92005
920051017
ref: 92005
AR
FITTING,TUBE
920051017
€ 6.50
92009
920091511
ref: 92009
SCREW,6X25
€ 2.50
92009A
920091640
ref: 92009A
SCREW,TAPPING,6X25
920091640
€ 3.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371076
ref: 92037A
AR
CLAMP,TUBE
920371076
€ 4.00
92037B
920371271
ref: 92037B
CLAMP,FUEL TUBE
920371271
€ 2.00
92037C
920371712
ref: 92037C
AR
CLAMP
920371712
€ 3.00
92037D
920371972
ref: 92037D
CLAMP,TUBE
920371972
€ 2.50
92037E
92037213
ref: 92037E
AR
CLAMP, BREATHER TUBE
92037213
€ 2.50
92055
920551492
ref: 92055
RING-O
920551492
€ 3.50
92059
920591230
ref: 92059
AR
TUBE,FUEL,4X9X140
920591230
€ 12.50
92059A
920591690
ref: 92059A
AR
TUBE,4X9X705,WHITE
€ 7.50
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92066A
920661321
ref: 92066A
EUFGFRITNRSPUK
PLUG,25MM
920661321
€ 8.50
92071
920711028
ref: 92071
AR
GROMMET AIR FILTER
€ 4.50
92071A
920711204
ref: 92071A
GROMMET,AIR FILTER
€ 6.00
92093
920931320
ref: 92093
SEAL,AIR FILTER
€ 7.50
92144
921441564
ref: 92144
SPRING
921441564
€ 8.50
92190
921901197
ref: 92190
AR
TUBE,HEAD-AIR SWITCH,
921901197
€ 13.50
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
220B0508
€ 0.50
92190A
921901198
ref: 92190A
AR
TUBE,HEAD-AIR SWITCH,
921901198
€ 13.50
92190B
921901200
ref: 92190B
TUBE,7X12X45
€ 8.50
92190C
921901243
ref: 92190C
TUBE,BREATHER
€ 7.00
92190D
921901254
ref: 92190D
AR
TUBE-AIR
€ 11.50
92200
922001058
ref: 92200
WASHER,DUCT
922001058
€ 3.00
