Genuine ZX Kawasaki Parts delivered quickly!


ENGINE COVER

ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

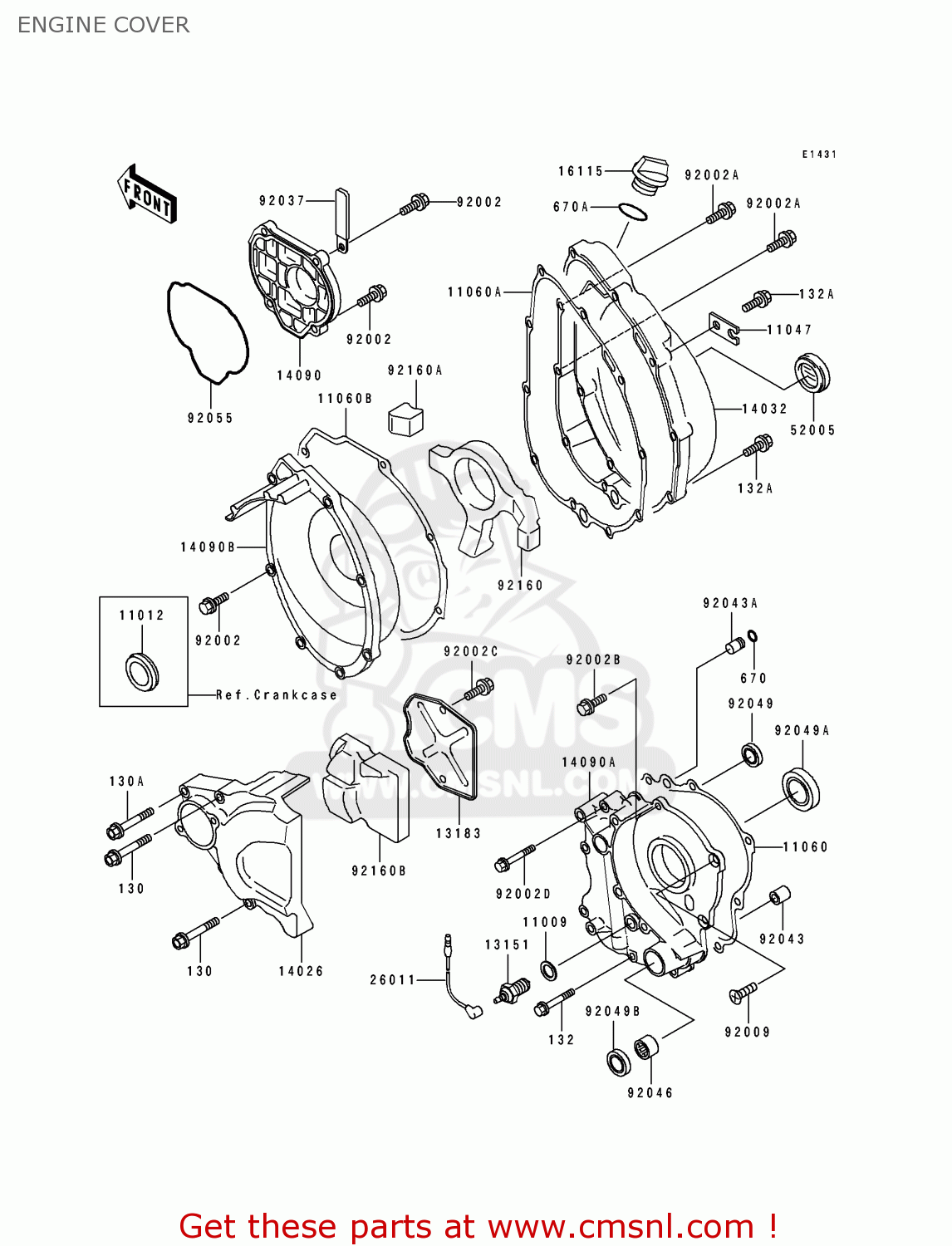

Engine cover diagram ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP

ENGINE COVER ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
ENGINE COVER ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
ENGINE COVER ZX750K1 ZXR750R 1991 EUROPE UK FR AR FG IT NR SP
prices are in EUR
ref
part #
description
quantity
130
130J0635
ref: 130
BOLT-FLANGED,6X35
130J0635
€ 3.00
130A
130J0645
ref: 130A
BOLT-FLANGED,6X45,BLA
130J0645
€ 3.00
132
132E0630
ref: 132
BOLT-FLANGED-SMALL
132E0630
€ 3.00
132A
132J0630
ref: 132A
BOLT-FLANGED-SMALL
132J0630
€ 2.50
670
670B1505
ref: 670
O RING,5MM
670B1505
€ 1.00
670A
670B2020
ref: 670A
O RING,20MM
670B2020
€ 1.00
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
11012
110121770
ref: 11012
CAP,LH
110121770
€ 9.00
11047
110471518
ref: 11047
BRACKET,THROTTLE ADJU
€ 2.50
11060
110601079
ref: 11060
GASKET,TRANSMISSION C
110601079
€ 14.50
11060A
110601080
ref: 11060A
GASKET,CLUTCH COVER (NAS)
110601080
€ 18.50
11060B
110601212
ref: 11060B
GASKET,BREATHER COVER (MCA)
110601212
€ 14.50
13151
131511007
ref: 13151
SWITCH,NEUTRAL
131511007
€ 9.00
13183
131831717
ref: 13183
PLATE,CHAIN COVER
131831717
€ 6.50
14026
140261166
ref: 14026
COVER-CHAIN
€ 151.50
14032
140321300
ref: 14032
COVER-CLUTCH
140321300
€ 149.50
14090
140241998
ref: 14090
COVER,PULSING
140241998
€ 20.50
14090A
140901051
ref: 14090A
COVER,TRANSMISSION
€ 177.50
14090B
140901052
ref: 14090B
COVER,BREATHER
140901052
€ 72.00
16115
161151053
ref: 16115
CAP-OIL FILLER
161151053
€ 12.50
26011
260111510
ref: 26011
WIRE-LEAD
€ 4.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
520051057
€ 17.50
92002
920021343
ref: 92002
BOLT,6X20
920021343
€ 4.00
92002A
920021344
ref: 92002A
BOLT,6X25
920021344
€ 1.50
92002B
920021439
ref: 92002B
BOLT,6X16
920021439
€ 3.00
92002C
920021449
ref: 92002C
BOLT,6X10
920021449
€ 2.50
92002D
920021622
ref: 92002D
BOLT,6X30
920021622
€ 3.50
92009
920091360
ref: 92009
SCREW,6X16
920091360
€ 2.50
92037
920371877
ref: 92037
CLAMP
920371877
€ 3.00
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92043A
920431456
ref: 92043A
PIN
920431456
€ 6.00
92046
920461148
ref: 92046
BEARING-NEEDLE,HK1312
920461148
€ 19.50
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
920491017
€ 6.50
92049A
920491361
ref: 92049A
SEAL-OIL
920491361
€ 7.00
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
920551494
ref: 92055
RING-O,PULSING COVER
920551494
€ 10.50
92160
921601260
ref: 92160
DAMPER,SOUND ARRESTER
€ 36.50
92160A
921601282
ref: 92160A
DAMPER,SOUND ARRESTER
€ 10.00
92160B
921601289
ref: 92160B
DAMPER,SOUND ARRESTER
921601289
€ 17.50
