TAILLIGHT(S)

ZX750F3 NINJA 750R 1989 USA CALIFORNIA

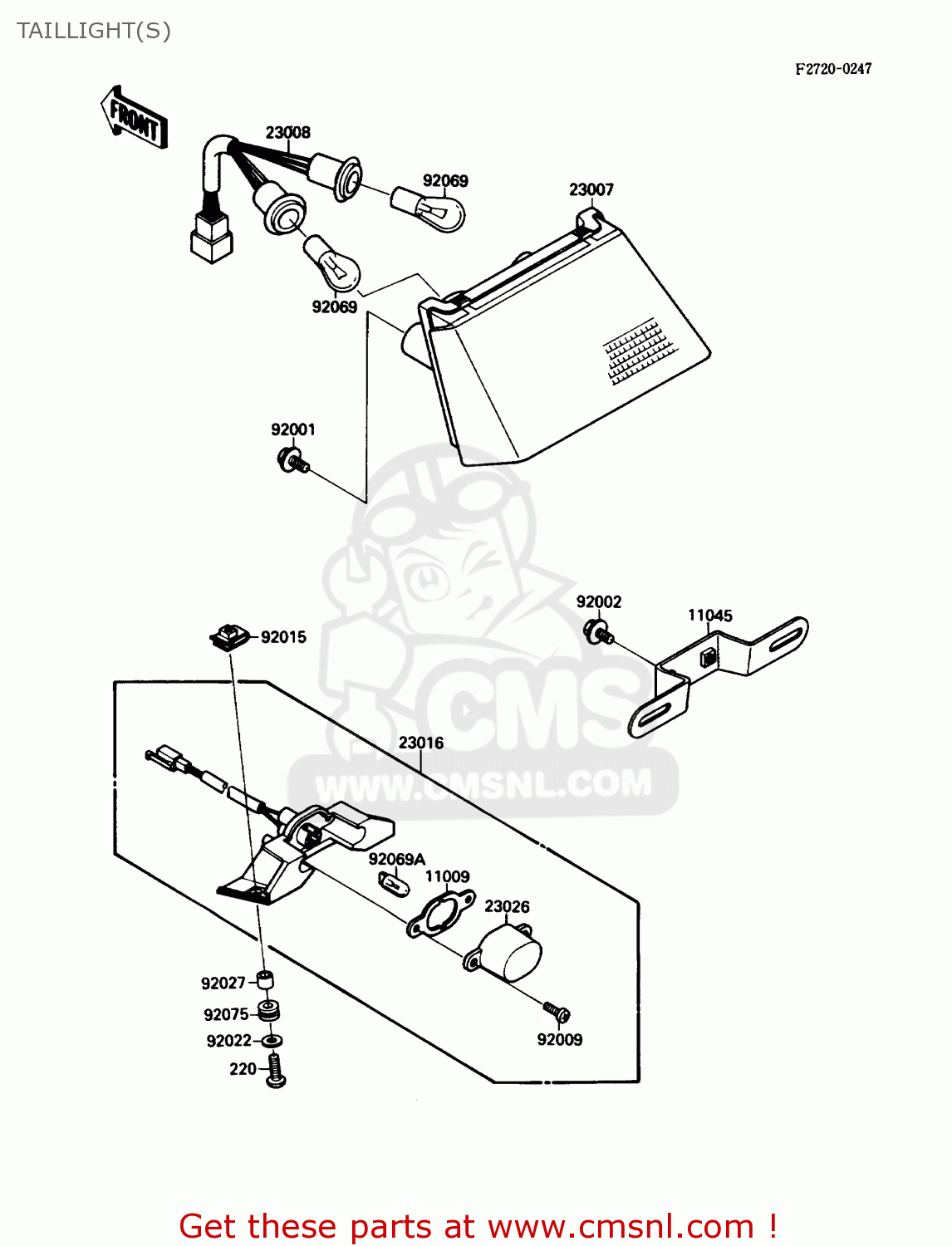

Taillight(s) diagram ZX750F3 NINJA 750R 1989 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

220

220C0520
ref: 220

SCREW-PAN-CROS

€ 0.50

11009

110091619
ref: 11009

GASKET,LICENSE PLATE

€ 3.50

11045

110451356
ref: 11045

BRACKET,LICENSE LAMP

€ 13.50

23007

230071157
ref: 23007

LENS-COMP,TAIL LAMP

€ 108.50

23008

230081319
ref: 23008

SOCKET-ASSY,TAIL LAMP

€ 21.00

23016

230161077
ref: 23016

LICENSE PLATE LAMP ASSEMBLY

€ 39.00

23026

230261084
ref: 23026

LENS,LICENSE PLATE LA

€ 13.50

92001

920011771
ref: 92001

BOLT,6X12

€ 2.50

92002

920021351
ref: 92002

BOLT

€ 2.50

92009

920091395
ref: 92009

SCREW

€ 2.50

92015

920151621
ref: 92015

NUT,5MM

€ 4.00

92022

25009004
ref: 92022

WASHER,5.2X16X1.2T

€ 2.50

92027

920271923
ref: 92027

COLLAR,5.6X8X8.8

€ 3.50

92069

92069059
ref: 92069

BULB,12V 32/3CP

€ 5.50

92069A

920691066
ref: 92069A

BULB,12V 3CP

€ 3.00

92075

920751912
ref: 92075

DAMPER

€ 3.50
