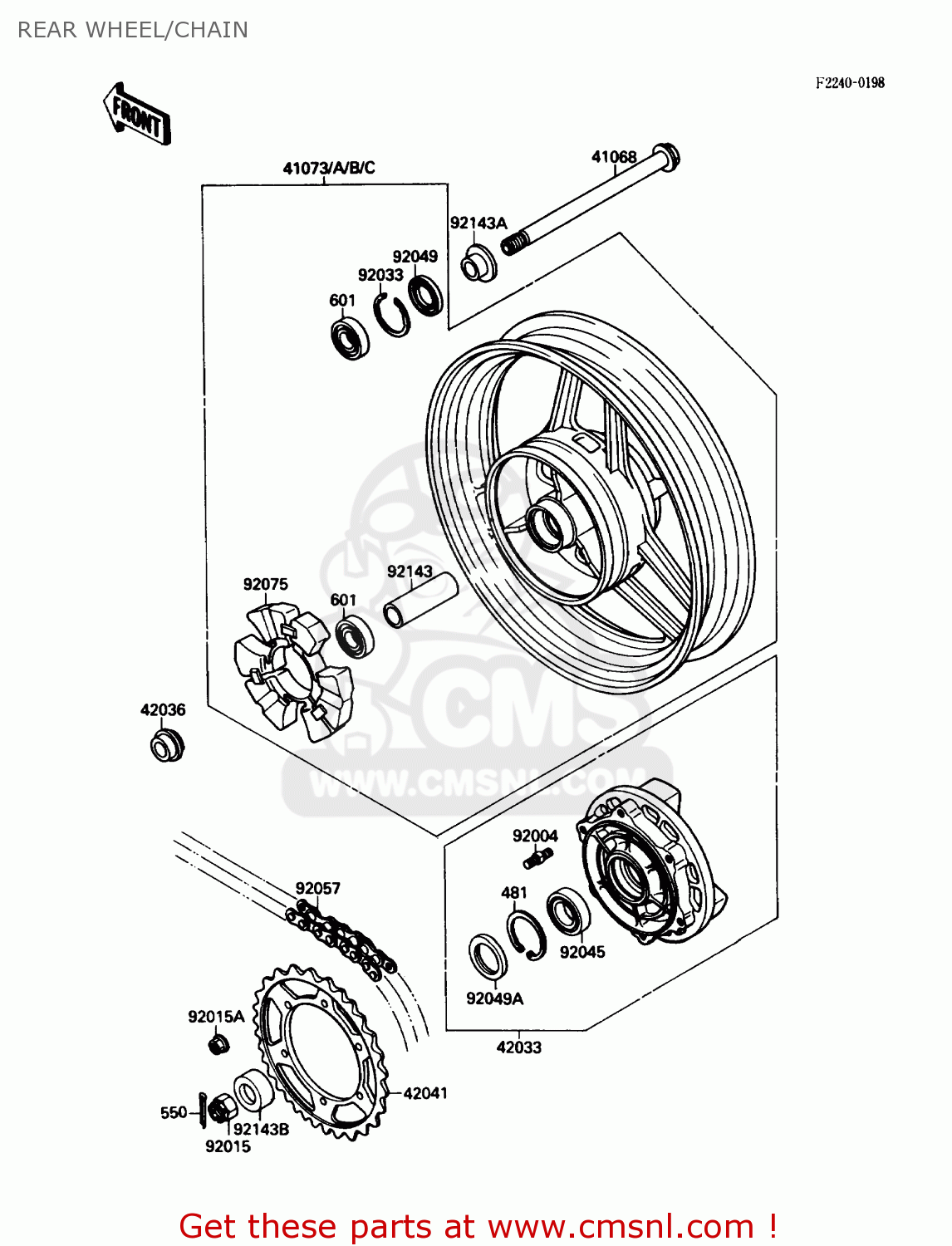

REAR WHEEL/CHAIN

ref

part #

description

quantity

481

481J5500
ref: 481

CIRCLIP

€ 6.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6204UU
ref: 601

BEARING-BALL,6204UUC3

€ 28.00

41068

410681234
ref: 41068

AXLE,RR

€ 65.50

41073

410731345CW
ref: 41073

WHEEL ASSEMBLY,REAR,FIRECRACKER RED

€ 562.50

41073B

410731345T7
ref: 41073B

WHEEL ASSEMBLY,REAR,SILVER

€ 511.00

42033

420331122
ref: 42033

COUPLING-ASSY,RR HUB

€ 205.00

42036

420361197
ref: 42036

SLEEVE,L=29

€ 15.50

42041

420411278
ref: 42041

SPROCKET-HUB

€ 64.50

92004

920041151
ref: 92004

STUD,10X19.5

€ 6.50

92015

42045018
ref: 92015

NUT,18MM

€ 7.50

92015A

920151502
ref: 92015A

NUT,FLANGED,10MM

€ 7.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92045

920451196
ref: 92045

BEARING-BALL,#7006

€ 58.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92049A

920491263
ref: 92049A

SEAL-OIL,PJN40556

€ 12.50

92057

920571221
ref: 92057

CHAIN,DRIVE,EK530MVOX

€ 142.50

92075

920751908
ref: 92075

DAMPER,REAR HUB SHOCK

€ 55.00

92143

921431034
ref: 92143

COLLAR,20.2X29X116

€ 28.50

92143A

921431042
ref: 92143A

COLLAR,L=23

€ 19.50

92143B

921431094
ref: 92143B

COLLAR,REAR AXLE,L=14

€ 20.00

all assemblies
