RADIATOR
ZX750F3 NINJA 750R 1989 USA CALIFORNIA

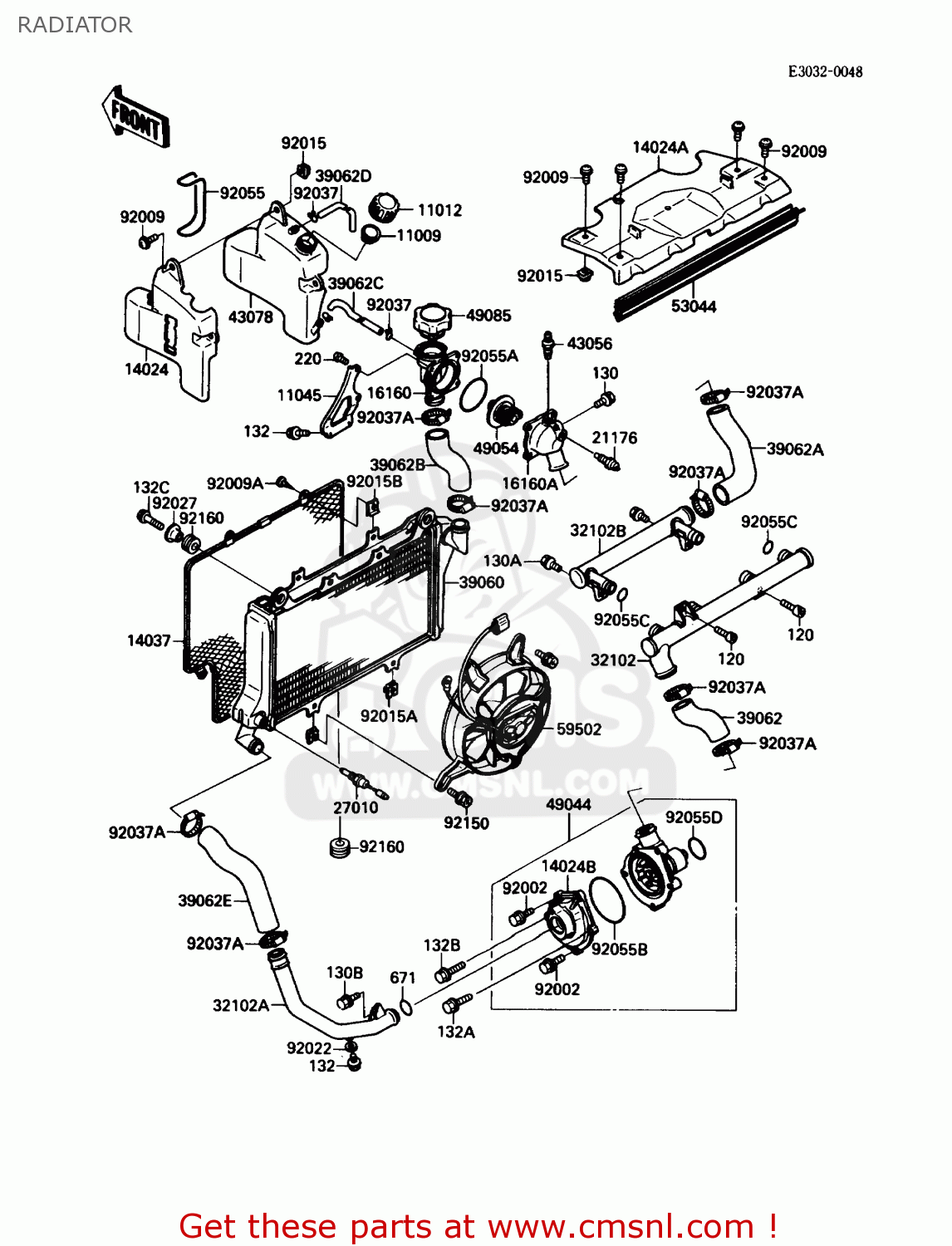

Radiator diagram ZX750F3 NINJA 750R 1989 USA CALIFORNIA
RADIATOR ZX750F3 NINJA 750R 1989 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
11045
110451249
ref: 11045
BRACKET,THERMOSTAT
€ 6.00
14024
140241342
ref: 14024
COVER,RESERVOIR
€ 10.00
14024A
140241343
ref: 14024A
COVER
€ 47.00
14024B
140241428
ref: 14024B
COVER,WATER PUMP
€ 38.00
14037
140371085
ref: 14037
SCREEN
€ 62.00
16160
161601116
ref: 16160
BODY,THERMOSTAT,UPP
€ 134.00
16160A
161601117
ref: 16160A
BODY,THERMOSTAT
€ 59.00
21176
211761054
ref: 21176
SENSOR,WATER
€ 49.50
27010
270101180
ref: 27010
SWITCH,FAN
€ 104.50
32102
321021243
ref: 32102
PIPE,COOLING
€ 83.50
32102A
321021259
ref: 32102A
PIPE,COOLING
€ 70.50
32102B
321021260
ref: 32102B
PIPE,COOLING
€ 56.50
39060
390601073
ref: 39060
RADIATOR
€ 656.00
39062
390621197
ref: 39062
HOSE-COOLING
€ 17.00
39062A
390621198
ref: 39062A
HOSE-COOLING,HEAD-THE
€ 27.00
39062B
390621201
ref: 39062B
HOSE-COOLING,CAP-RADI
€ 13.50
39062C
390621203
ref: 39062C
HOSE-COOLING,CAP-RESE
€ 17.50
39062D
390621219
ref: 39062D
HOSE-COOLING
€ 17.50
39062E
390621270
ref: 39062E
HOSE-COOLING,RADIATOR
€ 24.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43078
430781081
ref: 43078
RESERVOIR
€ 32.50
49044
490441059
ref: 49044
PUMP-WATER
€ 191.00
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851054
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
53044
530441180
ref: 53044
TRIM
€ 15.00
59502
595021068
ref: 59502
FAN-ASSY
€ 463.00
92002
920021392
ref: 92002
BOLT,6X22
€ 3.00
92009
920091181
ref: 92009
SCREW,6X18
€ 2.00
92009A
920091261
ref: 92009A
SCREW,TAPPING,6MM
€ 2.00
92015
920151094
ref: 92015
NUT,MUFFLER
€ 5.50
92015A
920151487
ref: 92015A
NUT
€ 3.00
92015B
920151758
ref: 92015B
NUT
€ 4.50
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371985
ref: 92037A
CLAMP,COOLING HOSE
€ 7.50
92055
920551001
ref: 92055
RING-O
€ 7.00
92055A
92055112
ref: 92055A
O RING, 53.5 M/M
€ 4.00
120
120S0610
ref: 120
BOLT-SOCKET
€ 1.50
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
€ 1.50
130B
130J0616
ref: 130B
BOLT-FLANGED,6X16
€ 1.50
132
132W0610
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132W0630
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132W0650
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132W0825
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
92055B
920551271
ref: 92055B
RING-O,WATER PUMP
€ 7.00
92055C
920551282
ref: 92055C
RING-O
€ 3.00
92055D
920551378
ref: 92055D
RING-O,WATER PUMP
€ 5.00
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
