CARBURETOR PARTS

ZX750F3 NINJA 750R 1989 USA CALIFORNIA

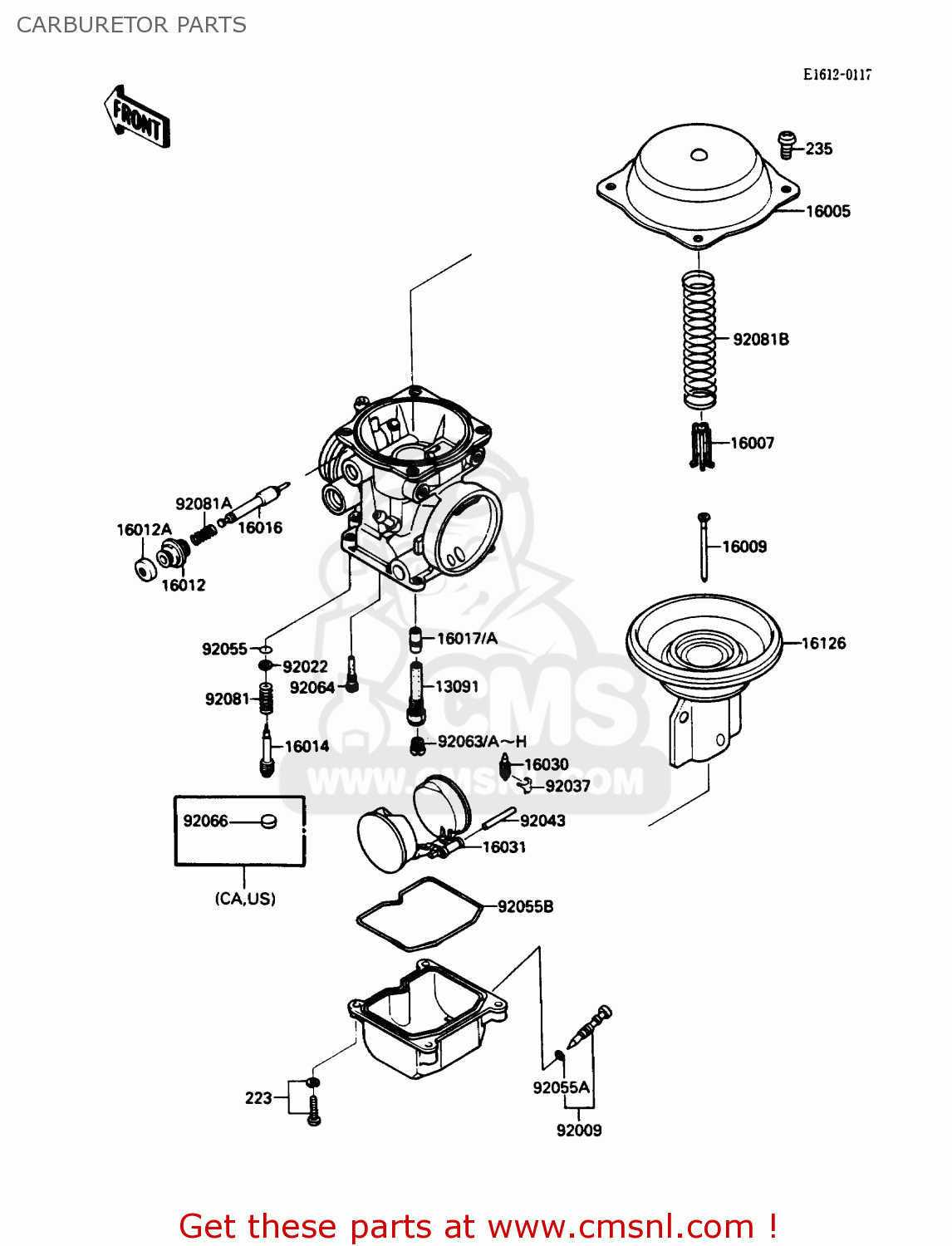

Carburetor parts diagram ZX750F3 NINJA 750R 1989 USA CALIFORNIA

CARBURETOR PARTS ZX750F3 NINJA 750R 1989 USA CALIFORNIA
CARBURETOR PARTS ZX750F3 NINJA 750R 1989 USA CALIFORNIA
CARBURETOR PARTS ZX750F3 NINJA 750R 1989 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
13091
130911347
ref: 13091
HOLDER,NEEDLE JET
130911347
€ 20.00
16005
160051063
ref: 16005
TOP-CHAMBER,MIXING
160051063
€ 52.00
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091339
ref: 16009
NEEDLE-JET,N53I
€ 19.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16017
160171326
ref: 16017
JET,NEEDLE
€ 24.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 39.00
16126
161261173
ref: 16126
VALVE,VACUUM
161261173
€ 159.50
92009
920091095
ref: 92009
SCREW,DRAIN
920091095
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
16044007
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
920551053
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631007
ref: 92063
US
MAIN JET, #110
€ 9.50
92063A
920631071
ref: 92063A
CA
JET-MAIN,#118
920631071
€ 9.50
92063B
920631071
ref: 92063B
US
JET-MAIN,#118
920631071
€ 9.50
92063C
920631072
ref: 92063C
CA
MAIN JET 2ND #120
920631072
€ 9.50
92063D
920631073
ref: 92063D
CA
MAIN JET,2ND #122
920631073
€ 9.50
92063E
920631116
ref: 92063E
US
JET-MAIN,#108
920631116
€ 9.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
223C0416
€ 2.50
235
235B0408
ref: 235
SCREW-PAN-WP-CROS
€ 1.50
92063F
920631117
ref: 92063F
US
JET-MAIN,#112
920631117
€ 9.50
92063G
920631117
ref: 92063G
CA
JET-MAIN,#112
920631117
€ 9.50
92063H
920631118
ref: 92063H
JET-MAIN,#115
920631118
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081B
920811874
ref: 92081B
SPRING,VACUUM VALVE
920811874
€ 17.50
