FUEL TANK
ZX750F3 NINJA 750R 1989 USA CALIFORNIA

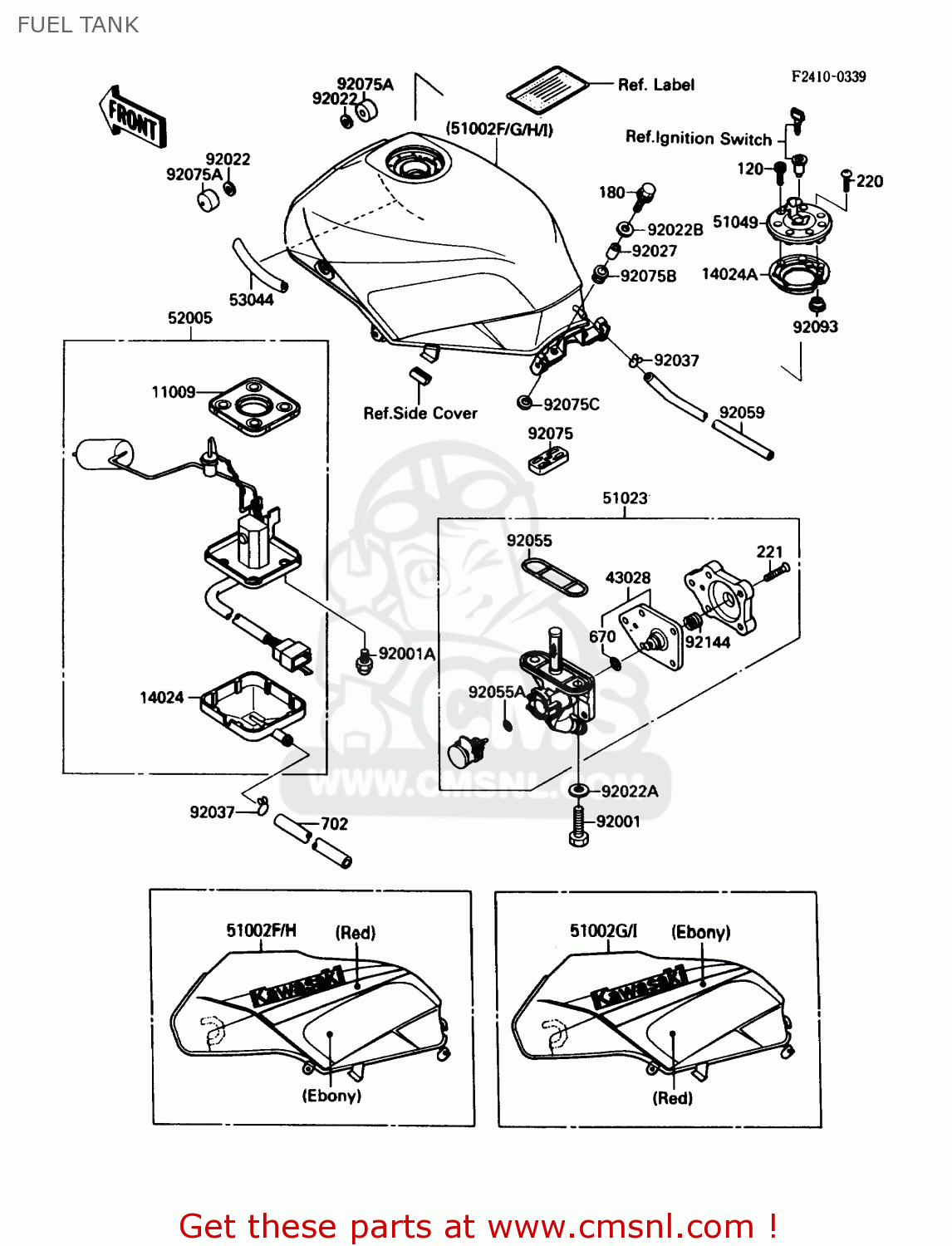

Fuel tank diagram ZX750F3 NINJA 750R 1989 USA CALIFORNIA
FUEL TANK ZX750F3 NINJA 750R 1989 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11009
110091656
ref: 11009
GASKET,FUEL GAUGE (NAS)
€ 14.50
14024
140251536
ref: 14024
COVER,FUEL GAGE
€ 11.50
14024A
140251913
ref: 14024A
COVER,TANK CAP
€ 13.50
43028
430281068
ref: 43028
DIAPHRAGM,TAP
€ 32.50
51002F
510025481H8
ref: 51002F
US
TANK-COMP-FUEL,EBONY
€ 986.50
51002G
510025482B1
ref: 51002G
US
TANK-COMP-FUEL,RED
€ 685.50
51002H
510025483H8
ref: 51002H
CA
FUEL TANK,COMPLETE,EBONY
€ 501.50
51002I
510025484B1
ref: 51002I
CA
FUEL TANK,COMPLETE,FIRECRACKER RED
€ 356.50
51023
510231133
ref: 51023
TAP-ASSY,FUEL
€ 72.50
51049
510491079
ref: 51049
CAP-TANK,FUEL
€ 106.50
52005
520051088
ref: 52005
GAUGE,FUEL
€ 71.00
53044
530441171
ref: 53044
TRIM,L=120
€ 4.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92001A
920011705
ref: 92001A
BOLT,FUEL GAGE
€ 2.50
92022
92022044
ref: 92022
WASHER,10.5X26X2.3
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
€ 2.50
92022B
92022237
ref: 92022B
WASHER-PLAIN
€ 2.50
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
€ 3.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
920551112
ref: 92055
RING-/,FUEL TAP PACKI
€ 3.00
92055A
920551377
ref: 92055A
RING-O,TAP BOTTOM
€ 2.50
92059
920591830
ref: 92059
TUBE,6X10X335
€ 10.50
92075
920751114
ref: 92075
DAMPER,FUEL TANK,RR
€ 11.00
92075A
92075125
ref: 92075A
DAMPER RUBBER-FL TANK
€ 4.00
92075B
92075174
ref: 92075B
DAMPER,MALE
€ 3.00
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
180
180G0625
ref: 180
BOLT-UPSET-WS
€ 2.50
220
220C0508
ref: 220
SCREW-PAN-CROS
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
702
702A07480
ref: 702
TUBE-RUBBER
€ 9.50
92075C
92075175
ref: 92075C
DAMPER,FEMALE
€ 2.50
92093
920931030
ref: 92093
CA
OIL SEAL,FUEL TANK CA
€ 5.00
92144
921441119
ref: 92144
SPRING,TAP DIAPHRAGM
€ 2.00
