Genuine ZX Kawasaki Parts delivered quickly!


CRANKCASE

ZX750F3 NINJA 750R 1989 USA CALIFORNIA

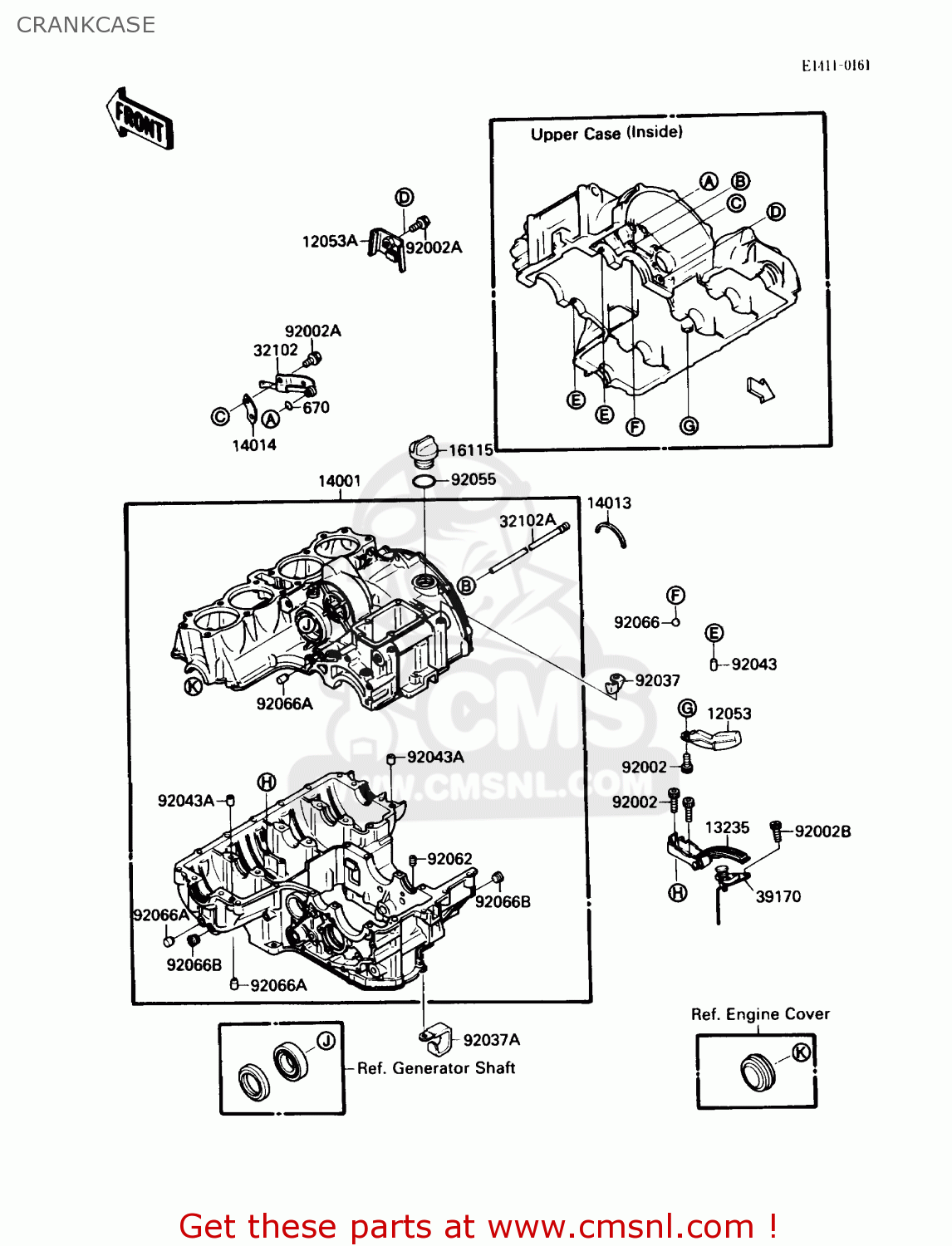

Crankcase diagram ZX750F3 NINJA 750R 1989 USA CALIFORNIA

CRANKCASE ZX750F3 NINJA 750R 1989 USA CALIFORNIA
CRANKCASE ZX750F3 NINJA 750R 1989 USA CALIFORNIA
CRANKCASE ZX750F3 NINJA 750R 1989 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
670
670D1505
ref: 670
O RING
670D1505
€ 2.50
12053
120531197
ref: 12053
GUIDE-CHAIN
120531197
€ 33.00
12053A
120531199
ref: 12053A
GUIDE-CHAIN
120531199
€ 17.50
13235
132351059
ref: 13235
GUIDE-COMP,TENSIONER
132351059
€ 63.00
14001
140015247
ref: 14001
SET-CRANKCASE
€ 1,745.00
14013
140131004
ref: 14013
RING-POSITION,CRANK
140131004
€ 3.00
14014
140141056
ref: 14014
PLATE-POSITION
140141056
€ 9.50
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
32102
321021237
ref: 32102
PIPE,OIL
321021237
€ 18.00
32102A
321021238
ref: 32102A
PIPE,MISSION OIL
321021238
€ 10.00
39170
391701056
ref: 39170
TENSIONER-COMP
391701056
€ 52.00
92002
920021192
ref: 92002
BOLT,SOCKET,6X14
920021192
€ 3.00
92002A
920021656
ref: 92002A
BOLT, 6 X 14
920021656
€ 3.00
92002B
920021796
ref: 92002B
BOLT,SOCKET,6X12
920021796
€ 3.00
92037
920371844
ref: 92037
CLAMP
920371844
€ 2.50
92037A
920371877
ref: 92037A
CLAMP
920371877
€ 3.00
92043
92042016
ref: 92043
PIN,DOWEL,6X16
92042016
€ 3.50
92043A
920431037
ref: 92043A
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92062
92062015
ref: 92062
NOZZLE
92062015
€ 4.00
92066
92066057
ref: 92066
PLUG,RUBBER BALL,6.7
92066057
€ 3.00
92066A
920661012
ref: 92066A
PLUG,OIL LINE,7.2X8
920661012
€ 4.00
92066B
920661262
ref: 92066B
PLUG
920661262
€ 2.50
