FRONT FORK
ZX750F3 NINJA 750R 1989 USA CALIFORNIA

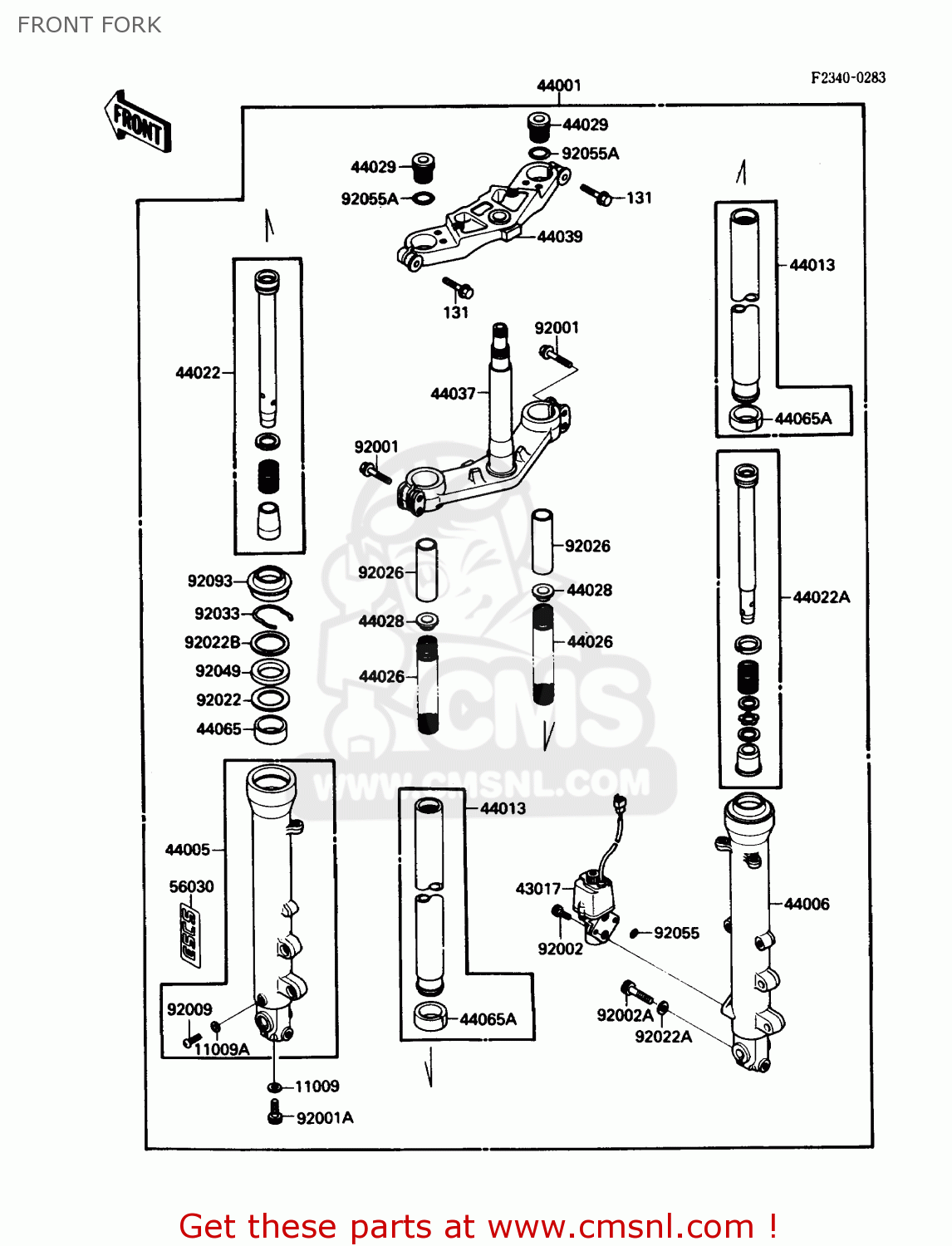

Front fork diagram ZX750F3 NINJA 750R 1989 USA CALIFORNIA
FRONT FORK ZX750F3 NINJA 750R 1989 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
131
131G0845
ref: 131
BOLT,FLANGED,8X45
€ 1.00
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
43017
430171066
ref: 43017
VALVE-COMP-BRAKE
€ 308.00
44001
440011639
ref: 44001
FORK-FRONT
€ 1,313.50
44005
440051256
ref: 44005
PIPE-LEFT FORK OUTER
€ 156.00
44006
440061253
ref: 44006
PIPE-RIGHT FORK OUTER
€ 277.00
44013
440131258
ref: 44013
PIPE-FORK INNER
€ 150.00
44022
440221202
ref: 44022
CYLINDER-FORK,LH
€ 74.00
44022A
440221203
ref: 44022A
CYLINDER-FORK,RH
€ 85.00
44026
440261358
ref: 44026
SPRING-FRONT FORK
€ 52.00
44028
440281003
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291126
ref: 44029
SEAT-FORK SPRING
€ 22.00
44037
440371206
ref: 44037
HOLDER-FORK UNDER
€ 221.00
44039
440391144
ref: 44039
HOLDER-FORK UPPER
€ 78.00
44065
440651012
ref: 44065
BUSHING,FORK OUT PIPE
€ 17.00
44065A
440651057
ref: 44065A
BUSHING,FRON.PIPE
€ 31.50
56030
560301095
ref: 56030
LABEL,ESCS MARK
€ 3.00
92001
920011188
ref: 92001
BOLT,8X40
€ 5.50
92001A
920011309
ref: 92001A
BOLT,FORK CYLINDER
€ 4.50
92002
920021166
ref: 92002
BOLT,SOCKET,6X16
€ 4.50
92002A
920021316
ref: 92002A
BOLT
€ 3.50
92009
920091324
ref: 92009
SCREW,4X8
€ 2.50
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
€ 5.50
92022A
920221598
ref: 92022A
WASHER
€ 4.50
92022B
920221599
ref: 92022B
WASHER,FORK OUTER PIP
€ 4.50
92026
920261288
ref: 92026
SPACER,FORK,L=100
€ 11.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92049
920491178
ref: 92049
SEAL-OIL,FORK
€ 18.50
92055
920551379
ref: 92055
RING-O
€ 1.00
92055A
920551380
ref: 92055A
RING-O,FORK TOP
€ 2.50
92093
920931162
ref: 92093
SEAL,FORK
€ 18.00
