SUSPENSION
ZX750F3 GPX750R 1989 EUROPE FR UK AR NR

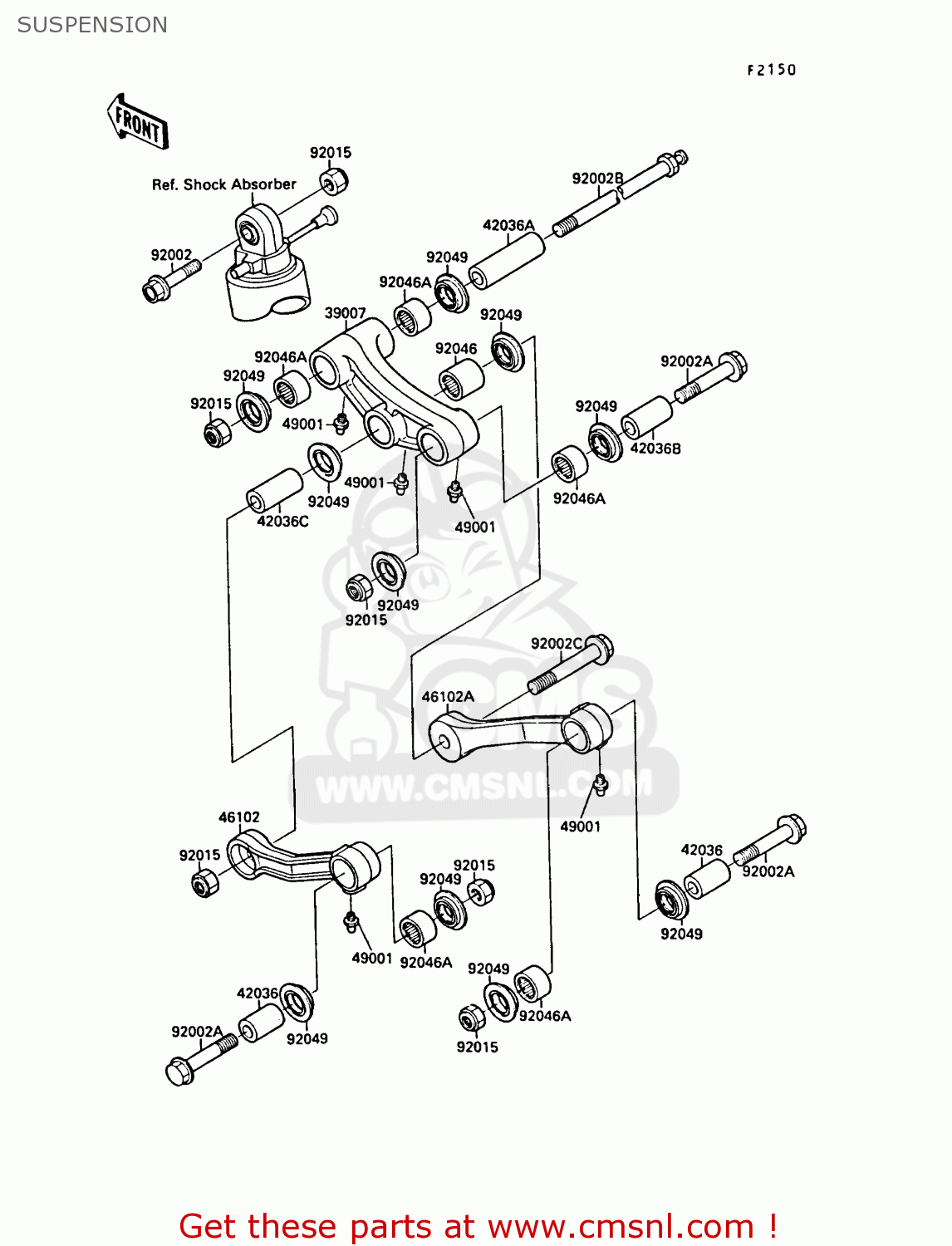

Suspension diagram ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
SUSPENSION ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
×
prices are in EUR
ref
part #
description
quantity
39007
390071107
ref: 39007
ARM-SUSP,UNI TRAK
€ 145.50
42036
420361077
ref: 42036
SLEEVE,ARM,RR
€ 11.50
42036A
420361079
ref: 42036A
SLEEVE,12.1X20X70
€ 19.00
42036B
420361108
ref: 42036B
SLEEVE,12.1X20X40
€ 14.00
42036C
420361129
ref: 42036C
SLEEVE,12.1X20X44
€ 14.50
46102
461021183
ref: 46102
ROD,SUSPENSION.LH
€ 82.00
46102A
461021184
ref: 46102A
ROD,SUSPENSION,RH
€ 82.00
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
€ 2.00
92002
920021052
ref: 92002
BOLT,12X48
€ 7.00
92002A
920021464
ref: 92002A
BOLT,FLANGED,12X60
€ 8.50
92002B
920021784
ref: 92002B
BOLT,SUSPENSION ARM,1
€ 11.00
92002C
920021785
ref: 92002C
BOLT,SUSPENSION ARM,1
€ 10.50
92015
920151190
ref: 92015
NUT,LOCK,12MM,BLACK
€ 4.50
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
€ 22.50
92046A
920461112
ref: 92046A
BEARING-NEEDLE,BM2027
€ 21.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
