FRAME FITTINGS

ZX750F3 GPX750R 1989 EUROPE FR UK AR NR

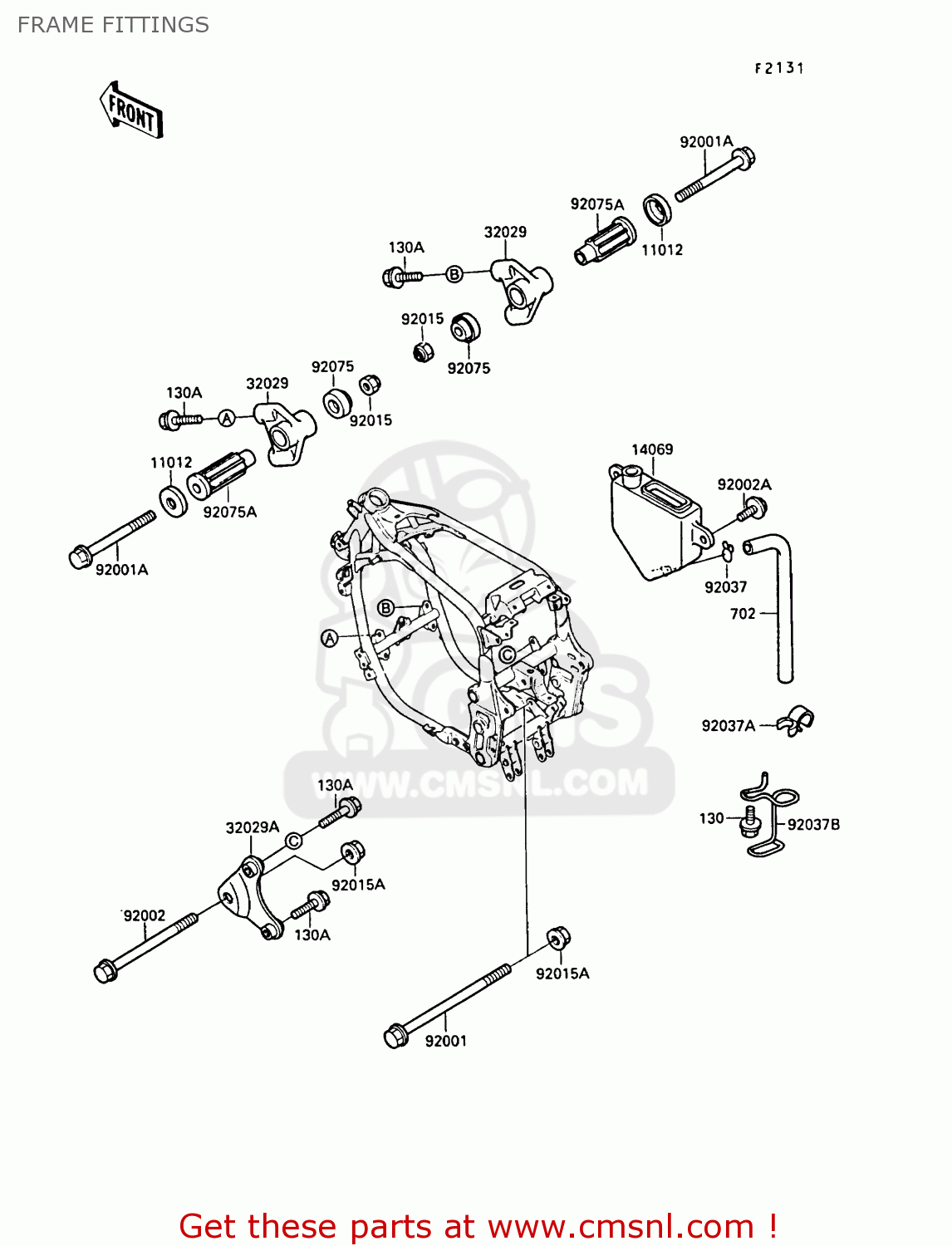

Frame fittings diagram ZX750F3 GPX750R 1989 EUROPE FR UK AR NR

FRAME FITTINGS ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
FRAME FITTINGS ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
FRAME FITTINGS ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
130A
130J0820
ref: 130A
BOLT-FLANGED,8X20
130J0820
€ 0.50
702
702A07480
ref: 702
TUBE-RUBBER
€ 9.50
11012
110121228
ref: 11012
CAP,ENGINE BRACKET
110121228
€ 4.50
14069
140691054
ref: 14069
BREATHER
140691054
€ 16.50
32029
320291485
ref: 32029
BRACKET-ENGINE,FR
320291485
€ 24.50
32029A
320291502
ref: 32029A
BRACKET-ENGINE,RR,UPP
€ 18.50
92001
920011621
ref: 92001
BOLT,FLANGED,10X180
920011621
€ 15.00
92001A
920011751
ref: 92001A
BOLT,FLANGED,10X105,B
920011751
€ 7.00
92002
920021470
ref: 92002
BOLT,FLANGED,10X170
920021470
€ 13.50
92002A
920021884
ref: 92002A
BOLT,6X12
920021884
€ 2.50
92015
920151189
ref: 92015
NUT,LOCK,10MM,BLACK
920151189
€ 4.50
92015A
920151541
ref: 92015A
NUT
920151541
€ 8.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371857
ref: 92037A
CLAMP,HOSE
€ 3.00
92037B
920371875
ref: 92037B
CLAMP,HOSE
920371875
€ 6.50
92075
920751274
ref: 92075
DAMPER,ENG MOUNT,SIDE
920751274
€ 11.00
92075A
920751377
ref: 92075A
DAMPER,ENGINE BRACKET
920751377
€ 19.50
