GENERATOR SHAFT

ZX750F3 GPX750R 1989 EUROPE FR UK AR NR

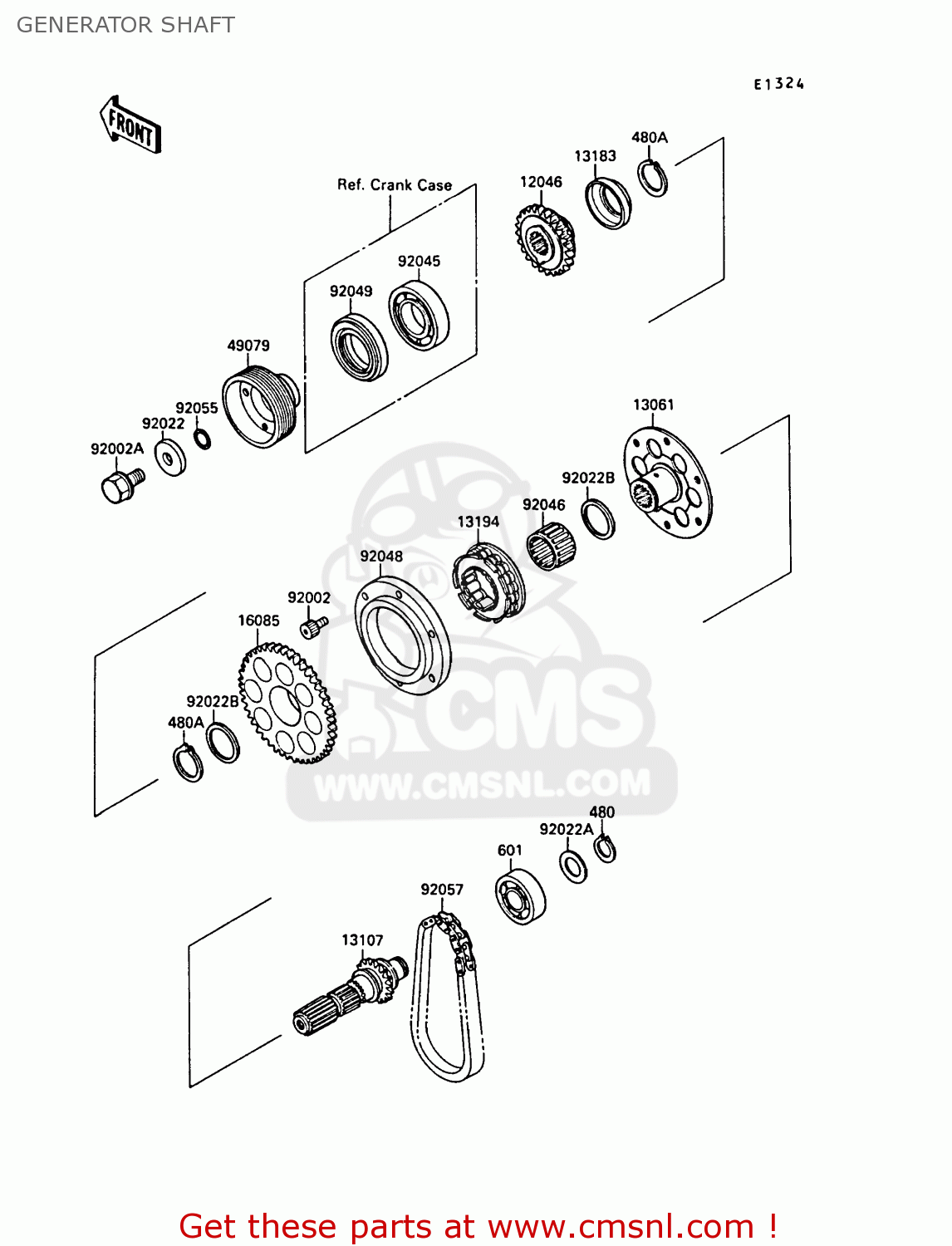

Generator shaft diagram ZX750F3 GPX750R 1989 EUROPE FR UK AR NR

GENERATOR SHAFT ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
GENERATOR SHAFT ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
GENERATOR SHAFT ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
prices are in EUR
ref
part #
description
quantity
480
480J1700
ref: 480
CIRCLIP-TYPE-C,17MM
480J1700
€ 0.50
480A
480J2500
ref: 480A
CIRCLIP-TYPE-C,25MM
480J2500
€ 1.00
601
601A6203
ref: 601
BEARING-BALL,#6203
601A6203
€ 10.50
12046
120461090
ref: 12046
SPROCKET,23T
120461090
€ 33.00
13061
130611197
ref: 13061
BOSS,ONEWAY CLUTCH
€ 100.50
13107
131071186
ref: 13107
SHAFT
131071186
€ 116.50
13183
131831015
ref: 13183
PLATE
131831015
€ 3.50
13194
131941068
ref: 13194
CLUTCH-ONEWAY
€ 122.50
16085
160851173
ref: 16085
GEAR,ONEWAY CLUTCH
160851173
€ 100.00
49079
490791051
ref: 49079
PULLEY-BELT
€ 45.00
92002
920021796
ref: 92002
BOLT,SOCKET,6X12
920021796
€ 3.00
92002A
920021853
ref: 92002A
BOLT,PULLEY
920021853
€ 4.00
92022
920221816
ref: 92022
WASHER,11X28X4.5
€ 5.50
92022A
920221842
ref: 92022A
WASHER,17X25X1.6
€ 2.50
92022B
92022225
ref: 92022B
WASHER-THRUST
92022225
€ 3.50
92045
920451176
ref: 92045
BEARING-BALL,60/28
920451176
€ 29.00
92046
920461022
ref: 92046
BEARING-NEEDLE,K25302
920461022
€ 24.50
92048
920481068
ref: 92048
RACE,ONEWAY CLUTCH
920481068
€ 58.50
92049
920491266
ref: 92049
SEAL-OIL
920491266
€ 8.50
92055
920551353
ref: 92055
RING-O,16.3X3.5
920551353
€ 2.50
92057
920571219
ref: 92057
CHAIN,BF04M
920571219
€ 10.00
