MUFFLER(S)
ZX750F3 GPX750R 1989 EUROPE FR UK AR NR

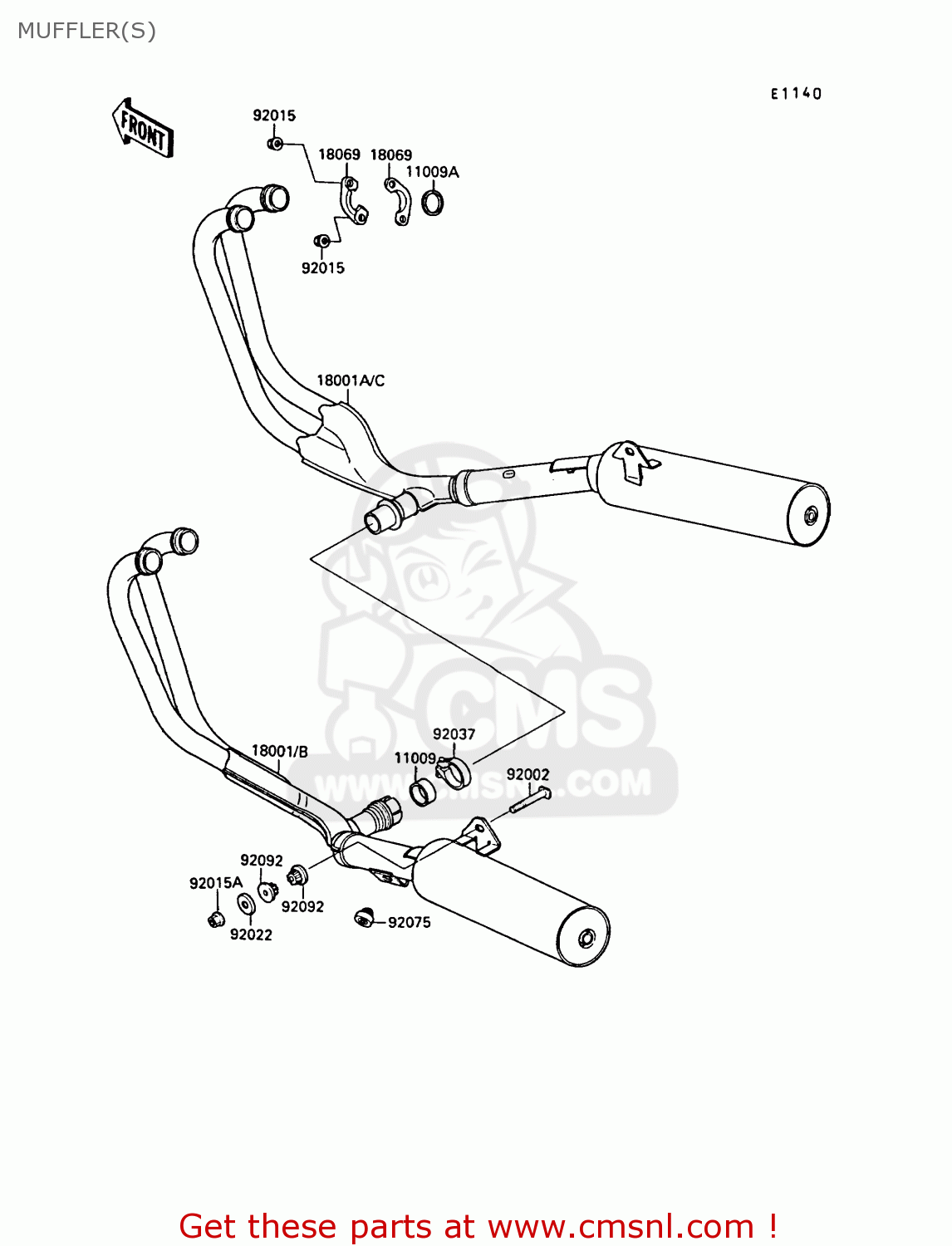

Muffler(s) diagram ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
MUFFLER(S) ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091659
ref: 11009
GASKET,EXHAUST MANIFO (MCA)
€ 20.00
11009A
18067018
ref: 11009A
GASKET-EXHAUST PIPE
€ 7.00
18001
180011640
ref: 18001
MUFFLER,LH
€ 572.00
18001A
180011641
ref: 18001A
MUFFLER,RH
€ 611.50
18069
180691072
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.00
92002
920021939
ref: 92002
BOLT,10X55
€ 5.50
92015
920151380
ref: 92015
NUT,LOCK,8MM
€ 3.00
92015A
920151649
ref: 92015A
NUT,10MM
€ 3.50
92022
92022289
ref: 92022
WASHER,PLAIN
€ 11.50
92037
920371270
ref: 92037
CLAMP,MUFFLER,BLACK
€ 13.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
